Sensata / Crydom Solid State Relay, 25 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

RS Stock No.:: 720-3925
Mfr. Part No.:: D53TP25C-10
Manufacturer:: Sensata / Crydom

Sensata / Crydom Solid State Relay, 25 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

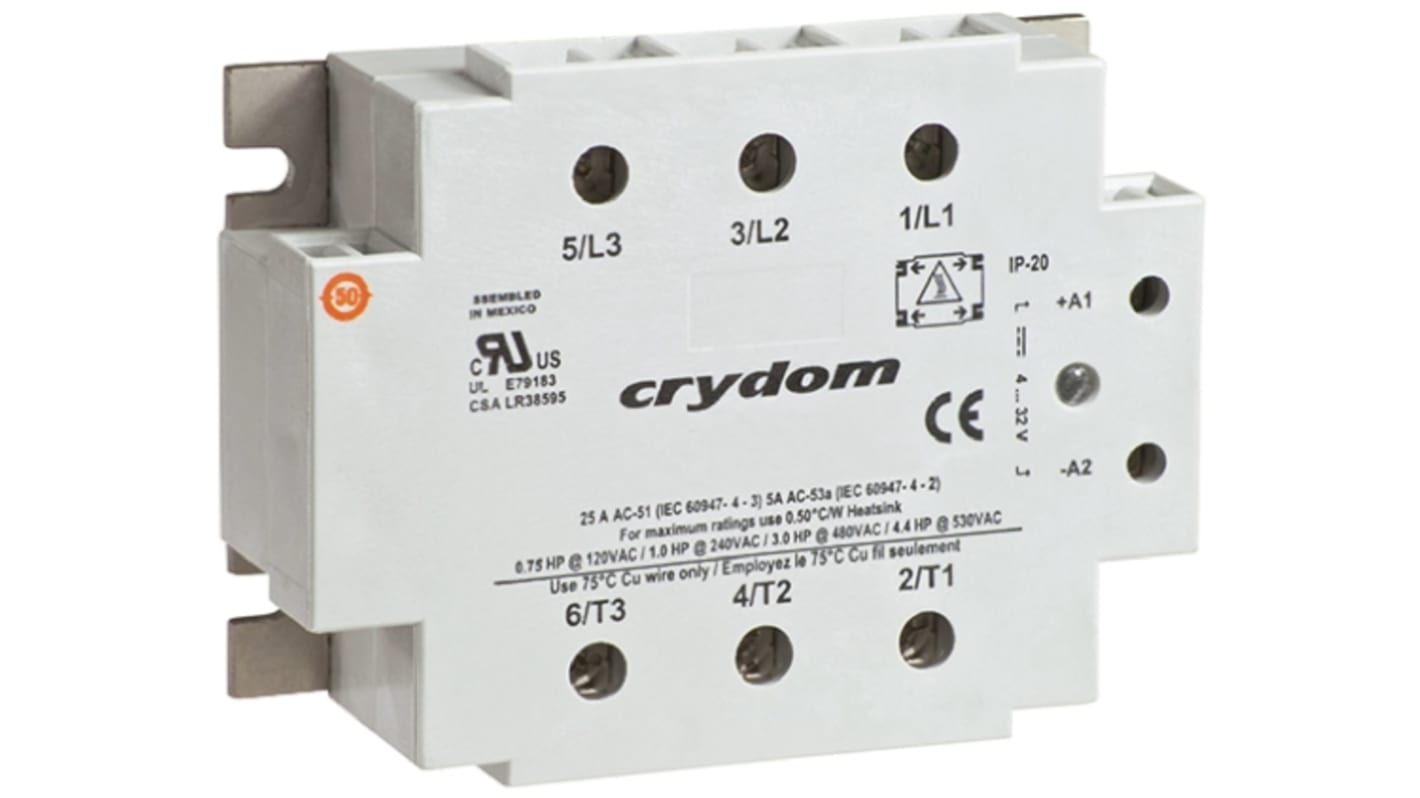

Image representative of range

8 In stock for delivery within 2 working days

Added

Price Each

€263.49

(exc. VAT)

€324.09

(inc. VAT)

Units	Per unit
1 - 4	€263.49
5 - 9	€250.31
10 - 24	€237.14
25 - 49	€223.96
50 +	€210.79

RS Stock No.:: 720-3925
Mfr. Part No.:: D53TP25C-10
Manufacturer:: Sensata / Crydom

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: MX

Product Details

Panel Mount - 53TP Series

Three-phase solid-state relay; ratings 25A , 50A per phase at 48-530 Vac
Two package styles IP20 or IP00
SCR output for heavy industrial loads
AC or DC control voltage
Random-fire (inductive loads) output
LED input status indicator
Integrated transient protection

Approvals

CE, RoHS

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Specifications

Attribute	Value
Maximum Load Current	25 A rms
Mounting Type	Panel Mount
Maximum Load Voltage	530 V ac
Minimum Load Voltage	48 V ac
Minimum Control Voltage	4 V dc
Maximum Control Voltage	32 V dc
Switching Type	Instantaneous
Control Voltage Range	4 → 32 V dc
Minimum Load Current	0.1 A rms
Terminal Type	Screw
Output Device	SCR
Maximum Turn On Time	0.02ms
Load Voltage Range	48 → 530Vrms
Dimensions	101.3 x 35.4 x 79.7mm
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +80°C
Length	101.3mm
Off State Leakage Current	3mA rms
Height	79.7mm
Depth	35.4mm
Maximum Operating Temperature	+80°C
