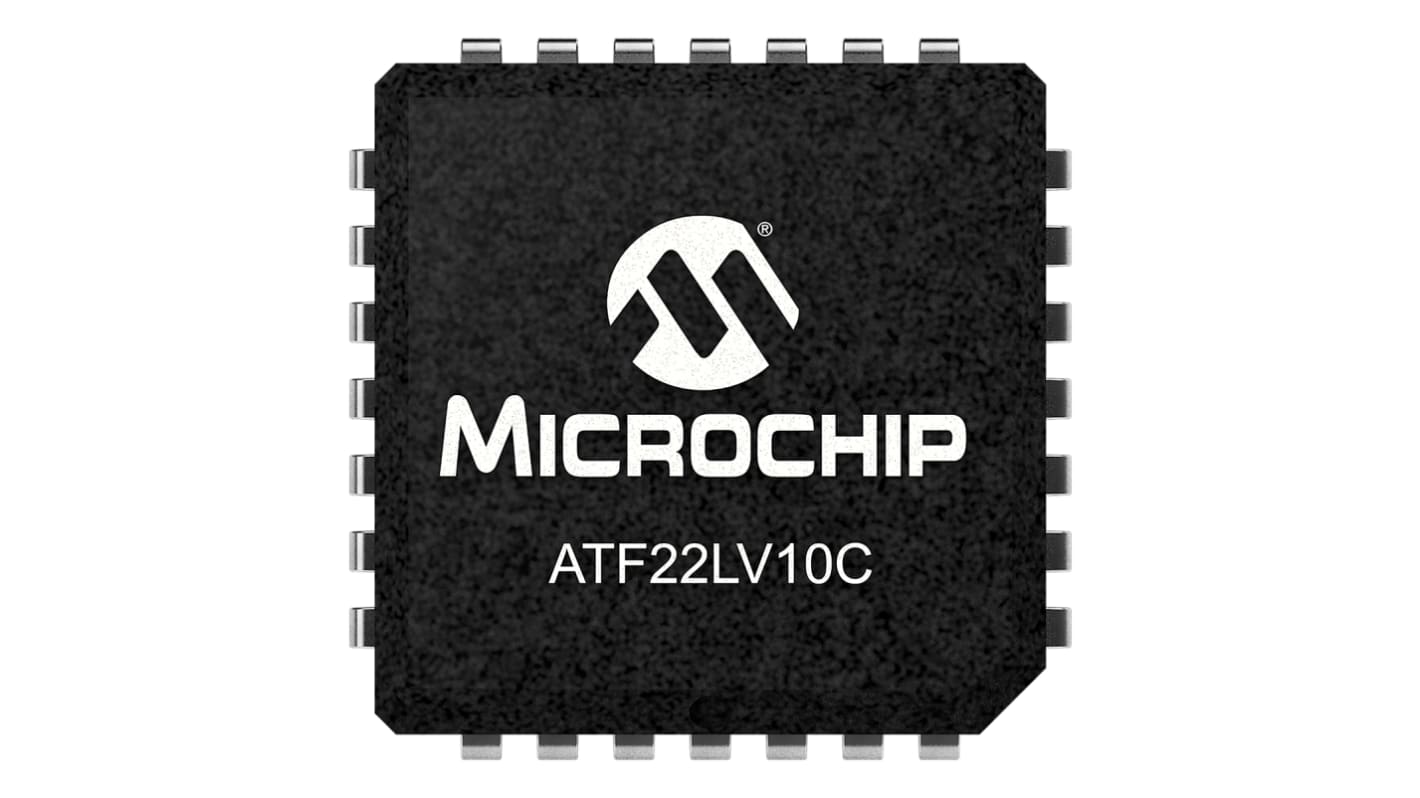

Microchip ATF22LV10C-10JU, SPLD Simple Programmable Logic Device ATF22LV10C 350 Gates, 10 Macro Cells, 10 I/O, 83.3MHz

RS Stock No.:: 127-8211
Mfr. Part No.:: ATF22LV10C-10JU
Manufacturer:: Microchip

Microchip ATF22LV10C-10JU, SPLD Simple Programmable Logic Device ATF22LV10C 350 Gates, 10 Macro Cells, 10 I/O, 83.3MHz

Bulk discount available

Price Each (In a Pack of 5)**

€1.832

(exc. VAT)

€2.253

(inc. VAT)

462 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Pack**
5 - 20	€1.832	€9.16
25 - 95	€1.774	€8.87
100 +	€1.714	€8.57

**price indicative

RS Stock No.:: 127-8211
Mfr. Part No.:: ATF22LV10C-10JU
Manufacturer:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	ATF22LV10C
Number of Gates	350
Number of Macro Cells	10
Number of User I/Os	10
Maximum Internal Frequency	83.3MHz
Re-programmability Support	Yes
Mounting Type	Surface Mount
Package Type	PLCC
Pin Count	28
Maximum Propagation Delay Time	10ns
Fabrication Technology	CMOS, TTL
Dimensions	11.58 x 11.58 x 4.06mm
Height	4.06mm
Maximum Operating Temperature	+80 °C
Minimum Operating Supply Voltage	3 V
Minimum Operating Temperature	0 °C
Propagation Delay Test Condition	35pF
Maximum Operating Supply Voltage	5.5 V
Length	11.58mm
Width	11.58mm

Microchip ATF22LV10C-10JU, SPLD Simple Programmable Logic Device ATF22LV10C 350 Gates, 10 Macro Cells, 10 I/O, 83.3MHz

Simple Programmable Logic Device, Microchip
