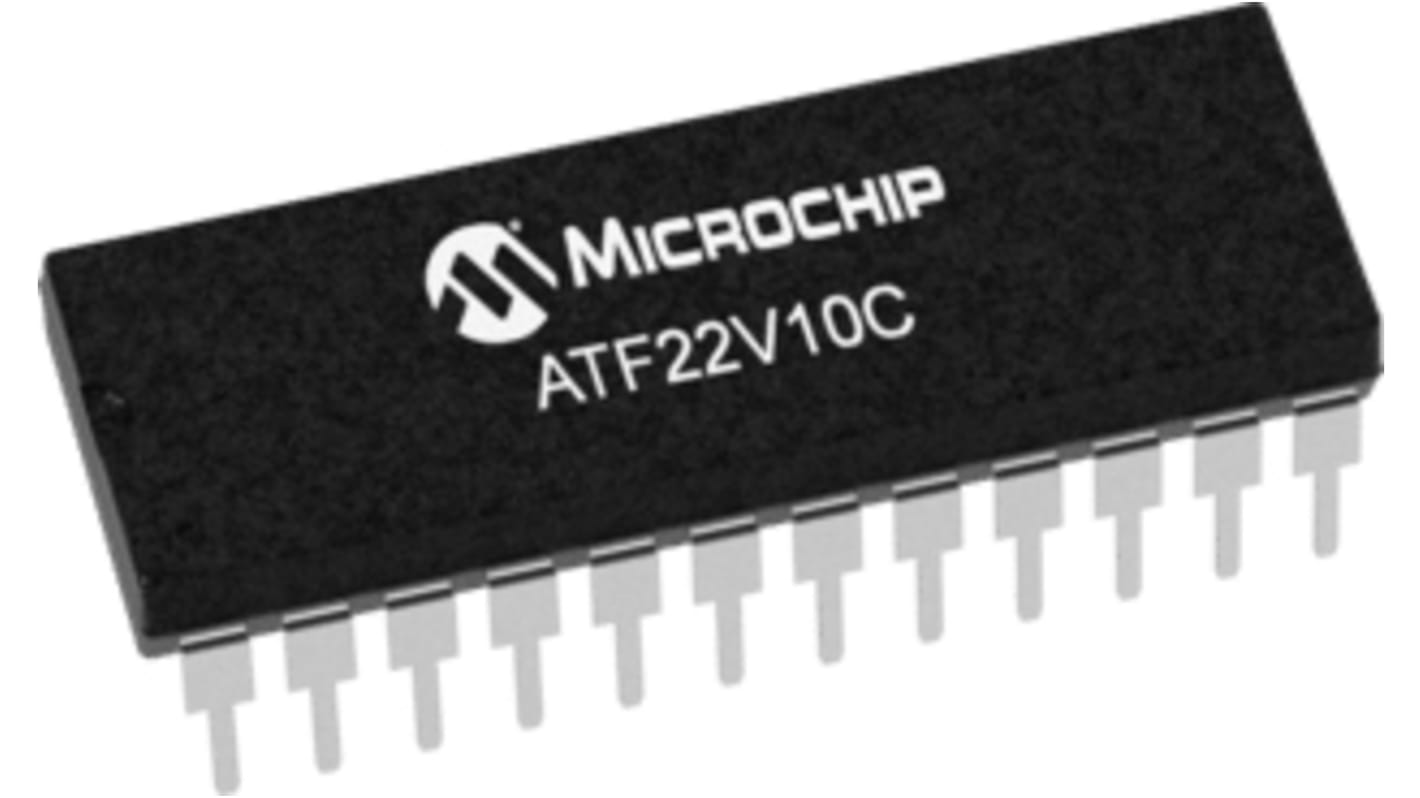

Microchip ATF22V10C-10PU Simple Programmable Logic Device ATF22V10C 500 Gates, 10 Macro Cells, 22 I/O, 125 MHz In System
- RS Stock No.:
- 177-1505
- Mfr. Part No.:
- ATF22V10C-10PU
- Manufacturer:
- Microchip
Bulk discount available
Subtotal (1 tube of 15 units)*
€43.335
(exc. VAT)
€53.295
(inc. VAT)
In Stock
- 60 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 15 - 15 | €2.889 | €43.34 |
| 30 - 90 | €2.815 | €42.23 |
| 105 + | €2.745 | €41.18 |
*price indicative
- RS Stock No.:
- 177-1505
- Mfr. Part No.:
- ATF22V10C-10PU
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Simple Programmable Logic Device | |
| Series | ATF22V10C | |
| Number of Gates | 500 | |
| Number of Macro Cells | 10 | |
| Number of User I/Os | 22 | |
| Maximum Internal Frequency | 125MHz | |
| In System Programmability | Yes | |
| Re-programmability Support | Yes | |
| Mount Type | Surface | |
| Package Type | PDIP | |
| Minimum Supply Voltage | 4.5V | |
| Pin Count | 24 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time | 5ns | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 32.13mm | |
| Height | 4.95mm | |
| Width | 7.11 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Simple Programmable Logic Device | ||
Series ATF22V10C | ||
Number of Gates 500 | ||
Number of Macro Cells 10 | ||
Number of User I/Os 22 | ||
Maximum Internal Frequency 125MHz | ||
In System Programmability Yes | ||
Re-programmability Support Yes | ||
Mount Type Surface | ||
Package Type PDIP | ||
Minimum Supply Voltage 4.5V | ||
Pin Count 24 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time 5ns | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 32.13mm | ||
Height 4.95mm | ||
Width 7.11 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The high-performance CMOS programmable logic device (PLD) with proven Microchip electrically erasable flash memory supports speeds down to 25ns. All speed ranges are specified over the 3.0V to 5.5V range for industrial and commercial temperature ranges. The device provides a low-voltage and edge-sensing "zero" power CMOS PLD solution with "zero" standby power (5??A typical).
Features:
3.0V to 5.5V Operating Range
Advanced Low-voltage Electrically-erasable Programmable Logic Device
User-controlled Power-down Pin Option
in-controlled Standby Power (10μA Typical)
Well-suited for Battery Powered Systems
10ns Maximum Propagation Delay
CMOS and TTL Compatible Inputs and Outputs
Latch Feature Hold Inputs to Previous Logic States
Advanced Electrically-erasable Technology
Reprogrammable
100% Tested High-reliability CMOS Process
20 year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection 200mA Latchup Immunity
Industrial Temperature Ranges
