Valsteam ADCA 4.5 bar SG Iron Thermostatic Steam Trap Set
- RS Stock No.:
- 917-1918
- Mfr. Part No.:
- 551280
- Manufacturer:
- Valsteam ADCA
Temporarily out of stock - back order for despatch 18-06-2024, delivery within 2 working days
Added
Price Each
€443.87
(exc. VAT)
€545.96
(inc. VAT)
| Units | Per unit |
| 1 + | €443.87 |
- RS Stock No.:
- 917-1918
- Mfr. Part No.:
- 551280
- Manufacturer:
- Valsteam ADCA
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- PT
Product Details
Trap Set with GV32B, IS140, RT25 and FLT17LC
Trap sets containing a globe valve, Y strainer, non-return valve and a float and thermostatic steam trap.

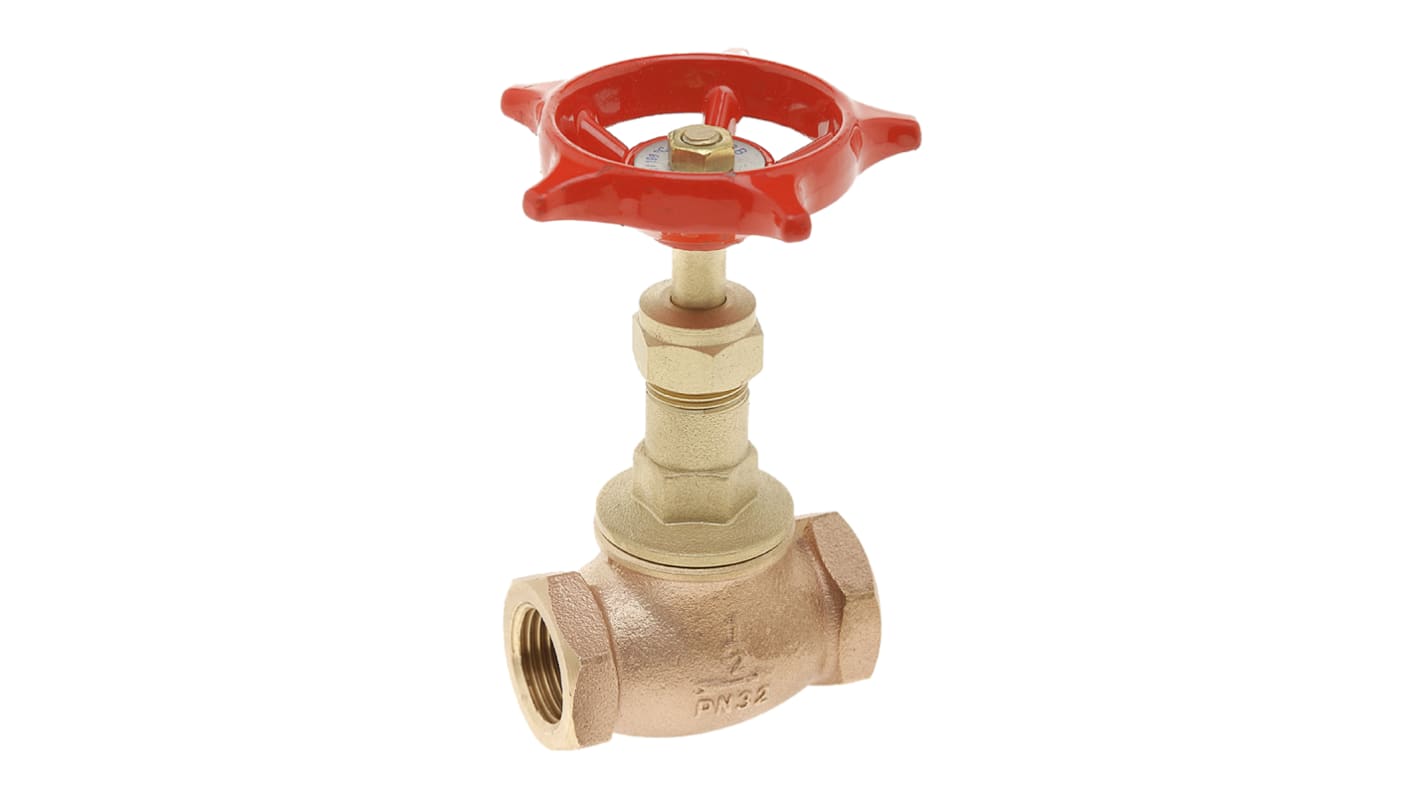

Bronze Globe Valve GV32B
GV32B bronze inline stop valve with a rising stem, PTFE renewable disk and high-quality packing.
• Female screwed ISO7/1Rp (BS21)
• Body design conditions PN32
• 198°C at 14 bar
• 100°C at 32 bar
• Body design conditions PN32
• 198°C at 14 bar
• 100°C at 32 bar
Y Strainers IS140
The IS140 Y strainer has been designed to protect traps, regulating valves and piping from dirt.
• Female screwed ISO7/1Rp (BS21)
• Horizontal or vertical downstream installation
• Horizontal or vertical downstream installation
Non-Return Valve RT25
The RT25 stainless steel disc check valve specially designed for use with steam and hot condensate.
• Female screwed ISO7/1Rp (BS21)
• Low-pressure drop
• Horizontal or vertical installation
• Low-pressure drop
• Horizontal or vertical installation
Float & Thermostatic Steam Trap FLT17LC
The FLT17LC float and thermostatic steam trap is designed for high and low-pressure steam heating and process equipment.
• Modulating discharge
• Discharges condensate at steam temperature
• Unaffected by pressure changes
• Excellent air discharge
• Female screwed ISO7/1Rp (BS21)
• Standard horizontal installation from right to left
• DN 1/2” to DN 3/4” – DN15 to DN20
• Discharges condensate at steam temperature
• Unaffected by pressure changes
• Excellent air discharge
• Female screwed ISO7/1Rp (BS21)
• Standard horizontal installation from right to left
• DN 1/2” to DN 3/4” – DN15 to DN20
Application Information
For use with saturated steam, condensate, compressed air, water, oil and other fluids.
Specifications
Attribute | Value |
|---|---|
| Trap Type | Thermostatic |
| Orientation | Horizontal, Vertical |
| Maximum Working Pressure | 4.5 bar |
| Body Material | SG Iron |
| Gasket Material | Stainless Steel |
| Connection Gender | Female |
