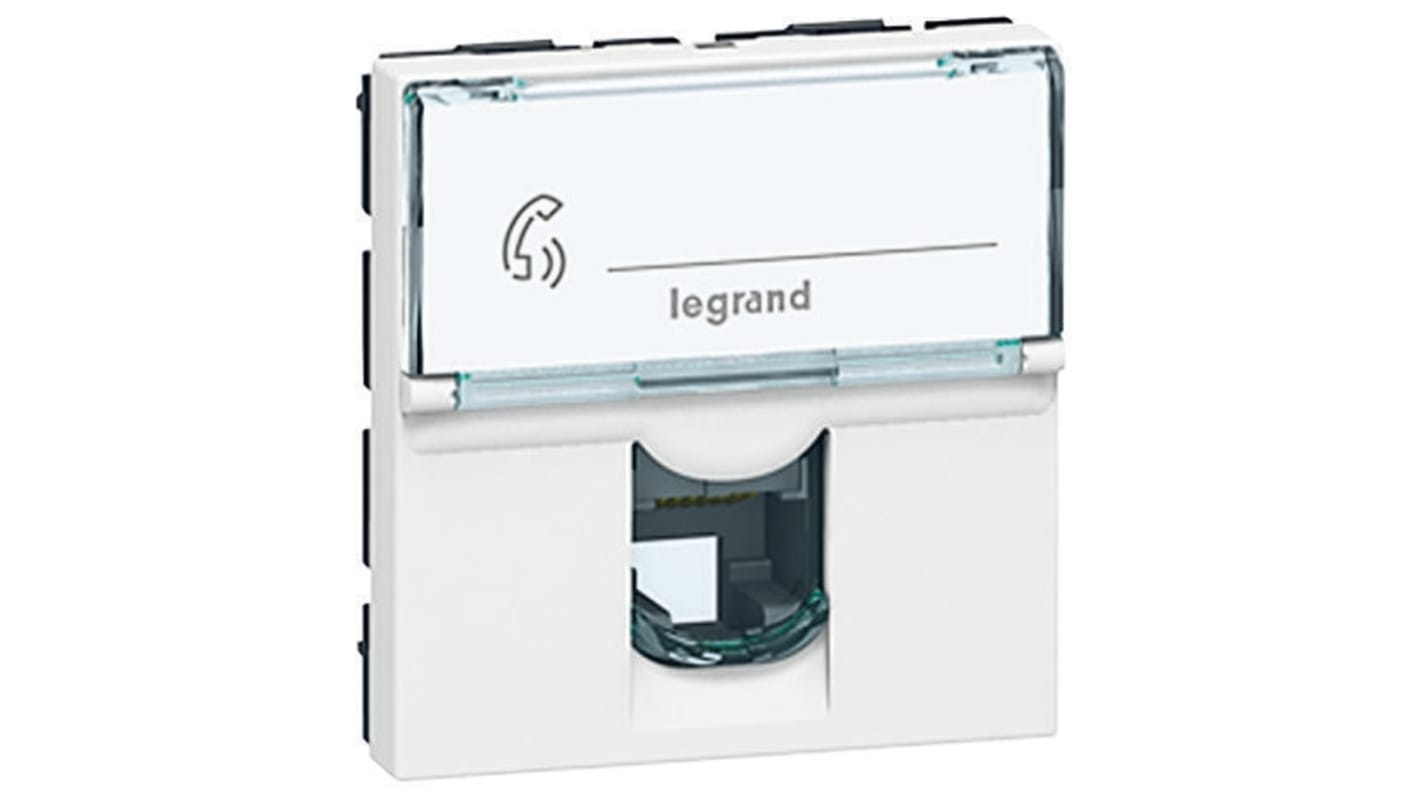

Legrand Telephone Socket

  • RS Stock No. 189-289
  • Mfr. Part No. 0 787 34
  • Manufacturer Legrand
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

Telephone Socket, USB and IEEE 1394 Mosaic

Numeris ISDN socket:
Allows for direct connection with a modem (Internet access).
Quarter-turn self-stripping terminals for quick connection.
Can be tapped in. 2 modules.
8 contacts, 2.5 mm² earth terminal.
8-contact telephone socket:
2 modules. Accepts test module (RC) ref. 512 48
Female USB socket:
Able to connect USB devices (printer, scanner, external hard drive).
Connection using screw terminals, 1 mm² section. 1 module.
Max. cable length: 5 m.
Female IEEE 1394 socket:
FireWire or i.link socket, specially designed for the transfer of a large volume of digital photo or video data.
Connection using screw terminals, 1 mm² section. 1 module.
Max. cable length: 5 m.

5 In stock for delivery within 2 working days
Unit of sale: Each
Was €27.98
22.96
(exc. VAT)
28.24
(inc. VAT)
units
Per unit
1 - 9
€22.96
10 - 49
€21.80
50 +
€20.65
