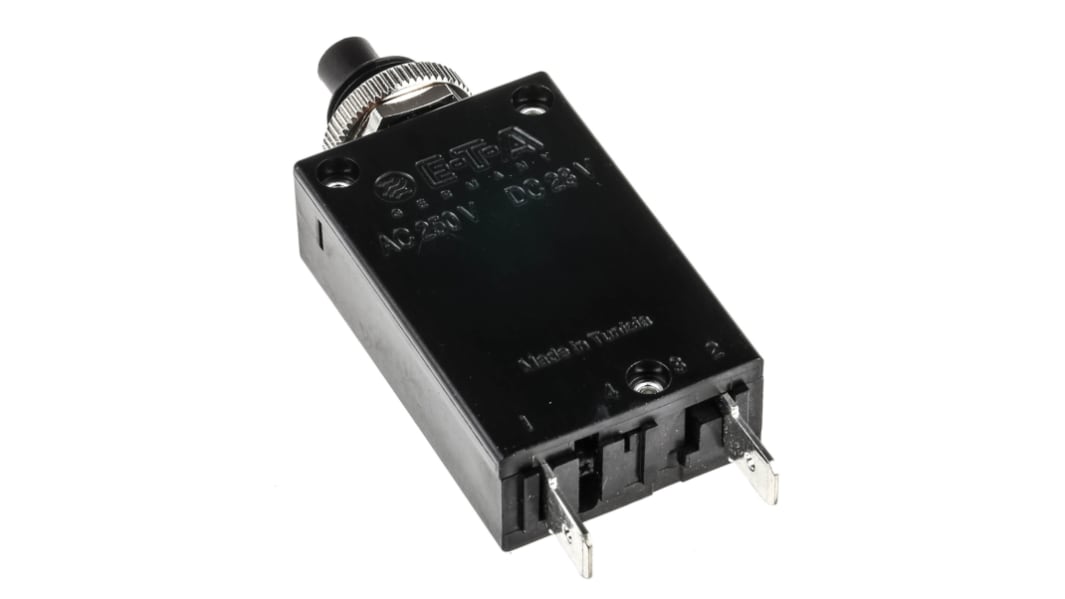

ETA Thermal Circuit Breaker - 2 5700 Single Pole 250V Voltage Rating Panel Mount, 10A Current Rating
- RS Stock No.:
- 729-2758
- Mfr. Part No.:
- 2-5700-IG2-P10-DD-000040-10A
- Manufacturer:
- ETA
20 In stock for delivery within 2 working days
Added
Price Each
€25.65
(exc. VAT)
€31.55
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €25.65 |
| 10 - 14 | €24.35 |
| 15 + | €23.55 |
- RS Stock No.:
- 729-2758
- Mfr. Part No.:
- 2-5700-IG2-P10-DD-000040-10A
- Manufacturer:
- ETA
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
2-5700 Series Thermal Circuit Breaker
3/8 inch or M12 (mm) moulded thread-neck single-hole panel mounting
6.3-0.8 mm blade terminals
Small physical size
Tease free, Trip free mechanism for long life
Push to release/push to reset
On/off status indication
Overload and short circuit protection
Typical life 5000 operation at twice nominal current rating
Mainly for motors, transformers, power supplies and extra low voltage systems
IEC Classification S/TO
6.3-0.8 mm blade terminals
Small physical size
Tease free, Trip free mechanism for long life
Push to release/push to reset
On/off status indication
Overload and short circuit protection
Typical life 5000 operation at twice nominal current rating
Mainly for motors, transformers, power supplies and extra low voltage systems
IEC Classification S/TO
Approvals
UL; CSA; VDE (EN60934)
Specifications
Attribute | Value |
|---|---|
| Current Rating | 10A |
| Number of Poles | 1 |
| Voltage Rating | 250V |
| Width | 15.7mm |
| Series | 2 5700 |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Button |
| Rated AC Voltage | 250V |
| Mounting Style | Panel Mount |
| Overall Length | 29mm |
| Terminal Contact Type | Blade |
| Overall Depth | 46.5mm |
| Overall Dimensions | 29 x 14.5 x 46.5mm |
| Rated DC Voltage | 50V |
| Circuit Breaker Type | Thermal Circuit Breaker |
| Overall Width | 31mm |
