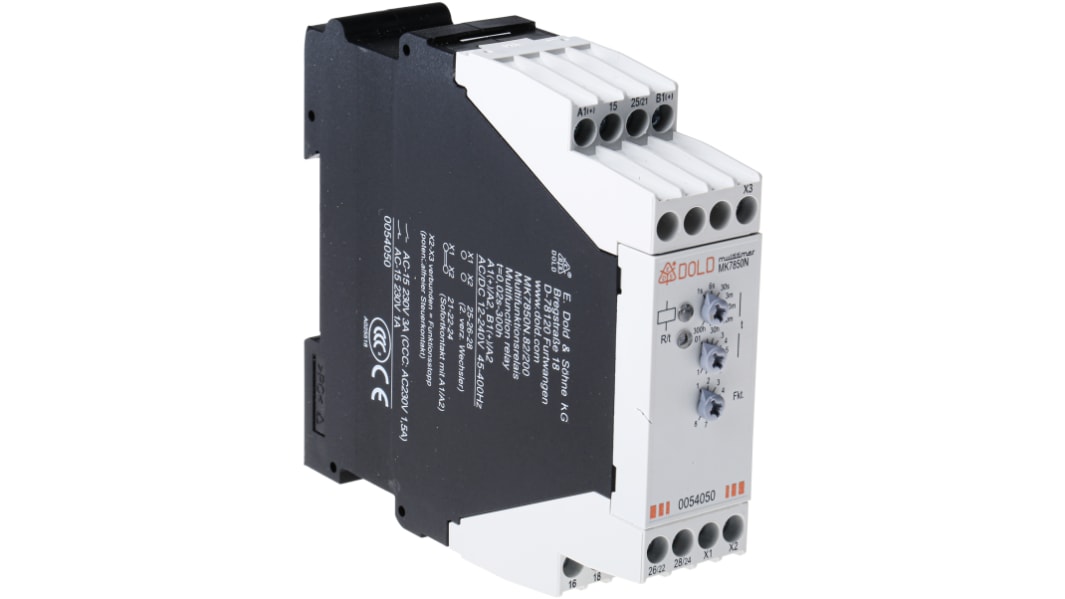

Dold MK 7850N Series DIN Rail Timer Relay, 2-Contact, 12 to 240 V dc 12 V ac, 240 V ac, 0.06 to 30 s, 0.03 to 300 min, 3

RS Stock No.:: 424-9906
Mfr. Part No.:: MK7850N.82/200 AC/DC12-240V 0.02S-300H
Manufacturer:: Dold

Dold MK 7850N Series DIN Rail Timer Relay, 2-Contact, 12 to 240 V dc 12 V ac, 240 V ac, 0.06 to 30 s, 0.03 to 300 min, 3

Subtotal (1 unit)*

€164.15

(exc. VAT)

€201.90

(inc. VAT)

In Stock

33 unit(s) ready to ship from another location
Plus 4 unit(s) shipping from 06 March 2026
Plus 2 unit(s) shipping from 07 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€164.15

*price indicative

RS Stock No.:: 424-9906
Mfr. Part No.:: MK7850N.82/200 AC/DC12-240V 0.02S-300H
Manufacturer:: Dold

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Dold
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Time Range	0.06 to 30 s, 0.03 to 300 min, 3 to 300 h
	Number of Contacts	2
	Switching Voltage	250 V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	DPDT
	IP Rating	IP20, IP40
	Supply DC Voltage	12 to 240 V dc
	Minimum Operating Temperature	-20°C
	Timing Adjustment	Swedish Pipe
	Supply AC Voltage	12 V ac, 240 V ac
	Maximum Operating Temperature	60°C
	Terminal Type	Screw
	Length	90mm
	Height	97mm
	Standards/Approvals	DIN EN 50155, IEC/EN 60 068-1, IEC/EN 60 715, IEC/EN 60 664-1, IEC/EN 61 812-1, EN 55 011, UL, IEC/EN 60 529, IEC/EN 61 373, IEC/EN 60 068-2-6, IEC/EN 60 947-5-1, CCC, EN 50 005
	Width	22.5 mm
	Series	MK 7850N

	Select all
	Brand Dold
	Product Type Timer Relay
	Mount Type DIN Rail
	Time Range 0.06 to 30 s, 0.03 to 300 min, 3 to 300 h
	Number of Contacts 2
	Switching Voltage 250 V ac
	Number of Timer Functions Multifunction
	Contact Configuration DPDT
	IP Rating IP20, IP40
	Supply DC Voltage 12 to 240 V dc
	Minimum Operating Temperature -20°C
	Timing Adjustment Swedish Pipe
	Supply AC Voltage 12 V ac, 240 V ac
	Maximum Operating Temperature 60°C
	Terminal Type Screw
	Length 90mm
	Height 97mm
	Standards/Approvals DIN EN 50155, IEC/EN 60 068-1, IEC/EN 60 715, IEC/EN 60 664-1, IEC/EN 61 812-1, EN 55 011, UL, IEC/EN 60 529, IEC/EN 61 373, IEC/EN 60 068-2-6, IEC/EN 60 947-5-1, CCC, EN 50 005
	Width 22.5 mm
	Series MK 7850N

COO (Country of Origin):: MT

MK 7850N — Multi-Function Timer Relay

A choice of Dold multi-Function Timer Relay's with optional external potentiometer accessory also available at 10 KΩ

Features:

LED as adjustment aid for time selection

8 time ranges from 0.02 s → 300 h selected via rotary switch

Expanded voltage range AC / DC 12 → 240 V

2 changeovers, 1 of which as immediate contact

Control contact, electrically isolated

Box terminals

8 functions selected via rotary switch

Response delay (AV)

Switch-on wipe function (EW)

Emitter delayed (IE)

Flashing function, starting with pulse (BI)

Fallback delay (RV)

Pulse transducer (IF)

Switch-off wipe function (AW)

Response and fallback delay (AV / RV)

Additional with MK 7850N / 500

Timer, starting with pause (TP)

Switch-on and switch-off wipe function (EW / AW)

2 separately adjustable times

Connection option for 2 remote port.

Note

Remote potentiometer with terminals Z1, Z2 sold separately, see RS code: 4249928
