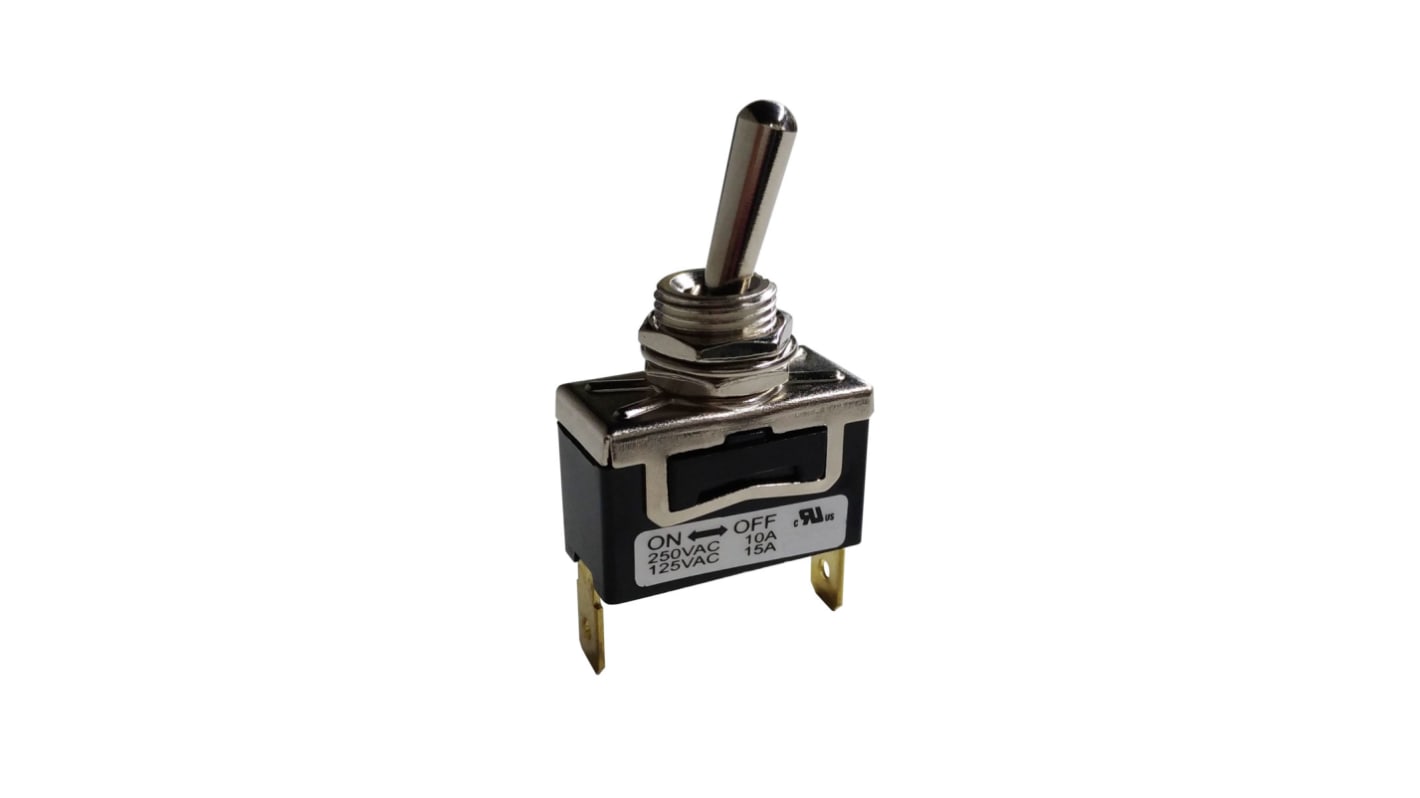

RS PRO Toggle Switch, PCB Mount, On-Off, SPST, Solder Terminal

RS Stock No.:: 206-6972
Manufacturer:: RS PRO

RS PRO Toggle Switch, PCB Mount, On-Off, SPST, Solder Terminal

Bulk discount available

Price Each**

€6.45

(exc. VAT)

€7.93

(inc. VAT)

Temporarily out of stock - back order for despatch 25-03-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 9	€6.45
10 - 49	€5.92
50 - 99	€5.21
100 +	€4.43

**price indicative

RS Stock No.:: 206-6972
Manufacturer:: RS PRO

RS PRO Datasheet

RS PRO SPST 10A Toggle Switches

Introducing a range of SPST toggle switches from RS PRO. These high-quality toggle switches offer a single pole/single throw contact configuration, meaning there is one input terminal, one output terminal, and a toggle switch made from metal or plastic. 10A contact current ratings with various switch operations are available all with an operating temperature of -20°C to +55°C. RS PRO SPST toggle switches are designed with screw or solder tab termination for PCB applications.

Why would you need an SPST type toggle switch?

SPST toggles are commonly used as a simple ON-OFF switch which basically breaks the circuit connection between the terminals. You can control a simple bulb or LED within a circuit or integrate these toggles switches into a DIY control board design.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.

Note: Prior to mounting products onto the circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Brass with nickel plating

• Bushing: Brass with nickel plating

• Base: Phenolic resin molding compound, black

• Spring: Steel wire

• Contact: Silver alloy

• Housing: Iron, nickel-plated

• Terminals: Bronze with nickel-plated

• Hardware: Nut (Iron, nickel-plated), Washer (Steel, nickel-plated), Screw (Iron, nickel plated)

• Label: Mist silver polyester film

Features and Benefits

• 10A @ 250VAC, 15A @ 125VAC

• Power toggle switch

• Single pole double throw contact - on-off action

• IP40 front panel protection

• Brass actuator

• Operating temperature -20°C to +55°C

• UL & CUL approved

Switch Operations

• On-Off, Metal Actuator, Screw Termination; RS stock no: 206-6971
• On-Off, Metal Actuator, Solder Termination; RS stock no: 206-6972
• On-Off, Plastic Actuator, Solder Termination; RS stock no: 206-6974

Applications

Telecommunications

Aerospace

Automotive

Instrumentation control

Industrial Control Solutions

Material Handling

Attribute	Value
Contact Configuration	SPST
Switch Operation	On-Off
Contact Current Rating	10 A
Mounting Type	PCB
Terminal Type	Solder
IP Rating	IP40
Illuminated	No
Actuator Material	Brass
