Select all	Attribute	Value
	Brand	Littelfuse
	Diode Configuration	Array
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	13V
	Mounting Type	Surface Mount
	Package Type	SC-70
	Maximum Reverse Stand-off Voltage	5.5V
	Pin Count	3
	Maximum Peak Pulse Current	2A
	ESD Protection	Yes
	Number of Elements per Chip	2
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+125 °C
	Dimensions	2.25 x 1.35 x 1mm
	Test Current	10mA
	Length	2.25mm
	Capacitance	12pF
	Automotive Standard	AEC-Q101
	Maximum Reverse Leakage Current	100nA
	Width	1.35mm
	Height	1mm

	Select all
	Brand Littelfuse
	Diode Configuration Array
	Direction Type Uni-Directional
	Maximum Clamping Voltage 13V
	Mounting Type Surface Mount
	Package Type SC-70
	Maximum Reverse Stand-off Voltage 5.5V
	Pin Count 3
	Maximum Peak Pulse Current 2A
	ESD Protection Yes
	Number of Elements per Chip 2
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +125 °C
	Dimensions 2.25 x 1.35 x 1mm
	Test Current 10mA
	Length 2.25mm
	Capacitance 12pF
	Automotive Standard AEC-Q101
	Maximum Reverse Leakage Current 100nA
	Width 1.35mm
	Height 1mm

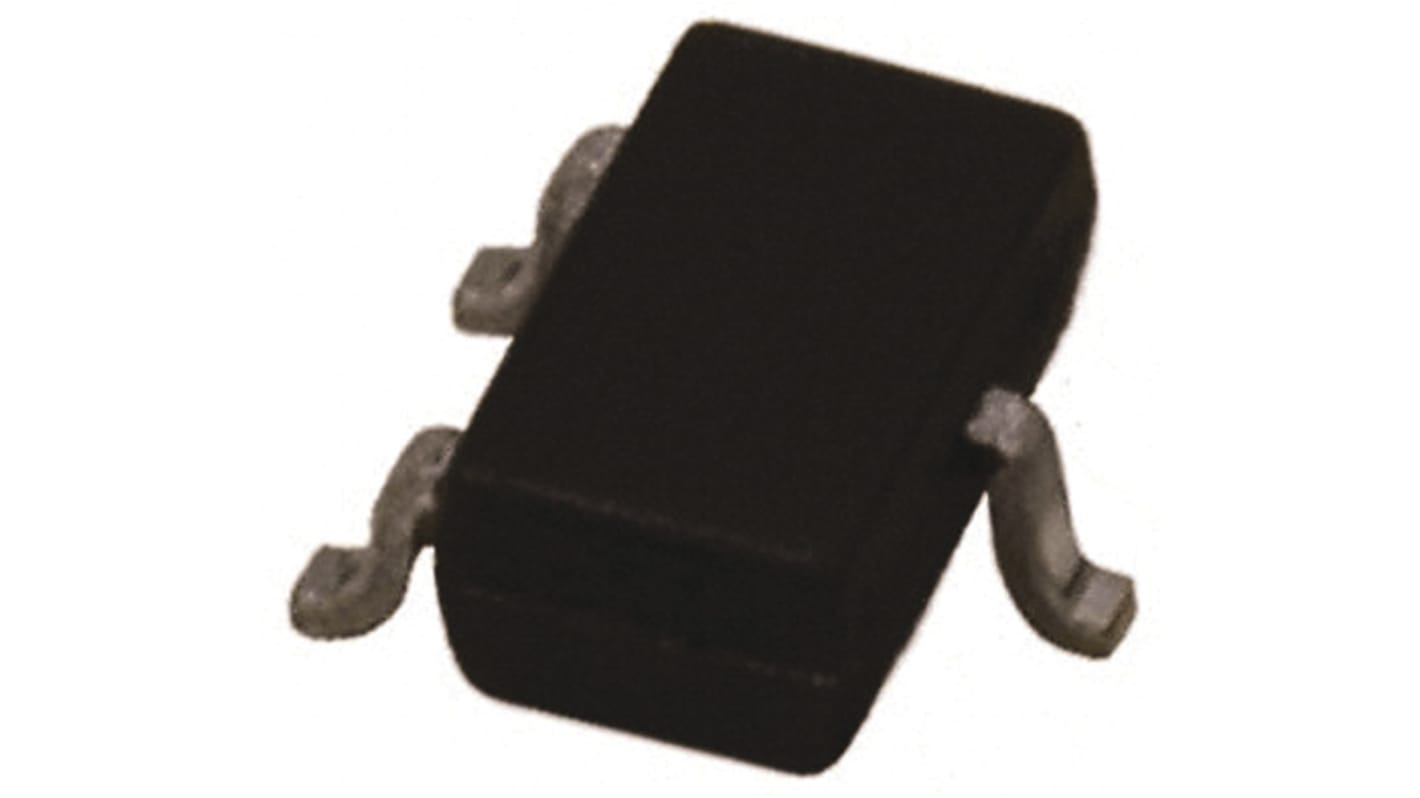

Littelfuse SP1001-02JTG, Dual-Element Uni-Directional TVS Diode Array, 3-Pin SC-70
