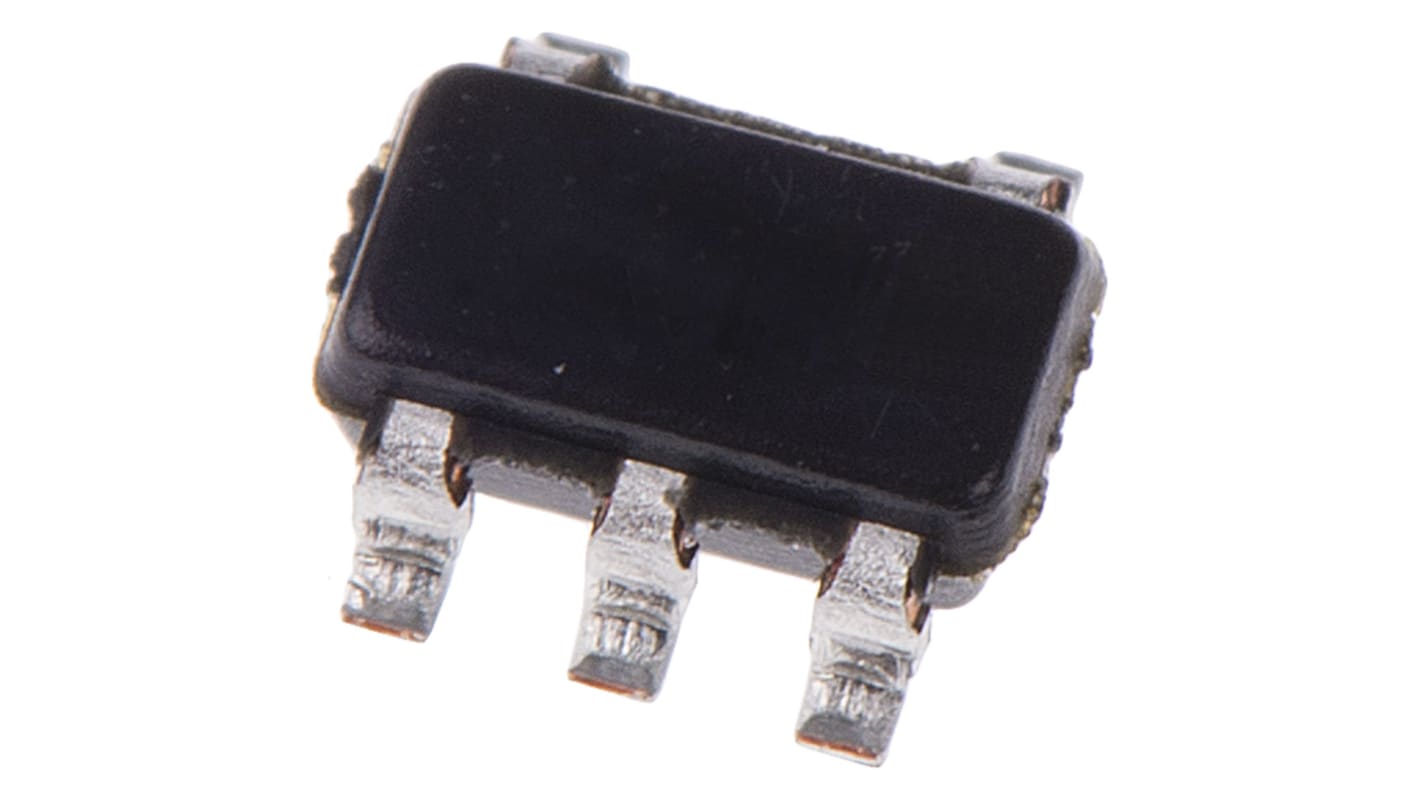

Littelfuse SP0504BAHTG, Quad-Element Uni-Directional TVS Diode Array, 0.22W, 5-Pin SOT-23
- RS Stock No.:
- 793-1960
- Mfr. Part No.:
- SP0504BAHTG
- Manufacturer:
- Littelfuse
Subtotal (1 pack of 10 units)*
€7.12
(exc. VAT)
€8.76
(inc. VAT)
Limited stock
- 7,940 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | €0.712 | €7.12 |
*price indicative
- RS Stock No.:
- 793-1960
- Mfr. Part No.:
- SP0504BAHTG
- Manufacturer:
- Littelfuse
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Littelfuse | |
Diode Configuration | Array | |
Direction Type | Uni-Directional | |
Maximum Clamping Voltage | 8.5V | |
Mounting Type | Surface Mount | |
Package Type | SOT-23 | |
Maximum Reverse Stand-off Voltage | 5.5V | |
Pin Count | 5 | |
Peak Pulse Power Dissipation | 0.22W | |
ESD Protection | Yes | |
Number of Elements per Chip | 4 | |
Minimum Operating Temperature | -40 °C | |
Dimensions | 3.05 x 3 x 1.3mm | |
Maximum Operating Temperature | +85 °C | |
Height | 1.3mm | |
Width | 3mm | |
Maximum Reverse Leakage Current | 100nA | |
Capacitance | 30pF | |
Length | 3.05mm | |
Test Current | 10mA | |
Select all | ||
---|---|---|
Brand Littelfuse | ||
Diode Configuration Array | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 8.5V | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Maximum Reverse Stand-off Voltage 5.5V | ||
Pin Count 5 | ||
Peak Pulse Power Dissipation 0.22W | ||
ESD Protection Yes | ||
Number of Elements per Chip 4 | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 3.05 x 3 x 1.3mm | ||
Maximum Operating Temperature +85 °C | ||
Height 1.3mm | ||
Width 3mm | ||
Maximum Reverse Leakage Current 100nA | ||
Capacitance 30pF | ||
Length 3.05mm | ||
Test Current 10mA | ||
