Units	Per unit	Per Pack**
100 - 400	€0.095	€9.50
500 - 900	€0.09	€9.00
1000 - 2400	€0.085	€8.50
2500 - 4900	€0.081	€8.10
5000 +	€0.076	€7.60

Select all	Attribute	Value
	Brand	Vishay
	Diode Configuration	Common Anode
	Direction Type	Bi-Directional
	Maximum Clamping Voltage	19.2V
	Minimum Breakdown Voltage	9V
	Mounting Type	Surface Mount
	Package Type	SOT-23
	Maximum Reverse Stand-off Voltage	8V
	Pin Count	3
	Peak Pulse Power Dissipation	400W
	Maximum Peak Pulse Current	18A
	ESD Protection	Yes
	Number of Elements per Chip	2
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	3.1 x 1.43 x 1.05mm
	Width	1.43mm
	Height	1.05mm
	Length	3.1mm
	Test Current	1mA
	Maximum Reverse Leakage Current	5µA

	Select all
	Brand Vishay
	Diode Configuration Common Anode
	Direction Type Bi-Directional
	Maximum Clamping Voltage 19.2V
	Minimum Breakdown Voltage 9V
	Mounting Type Surface Mount
	Package Type SOT-23
	Maximum Reverse Stand-off Voltage 8V
	Pin Count 3
	Peak Pulse Power Dissipation 400W
	Maximum Peak Pulse Current 18A
	ESD Protection Yes
	Number of Elements per Chip 2
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Dimensions 3.1 x 1.43 x 1.05mm
	Width 1.43mm
	Height 1.05mm
	Length 3.1mm
	Test Current 1mA
	Maximum Reverse Leakage Current 5µA

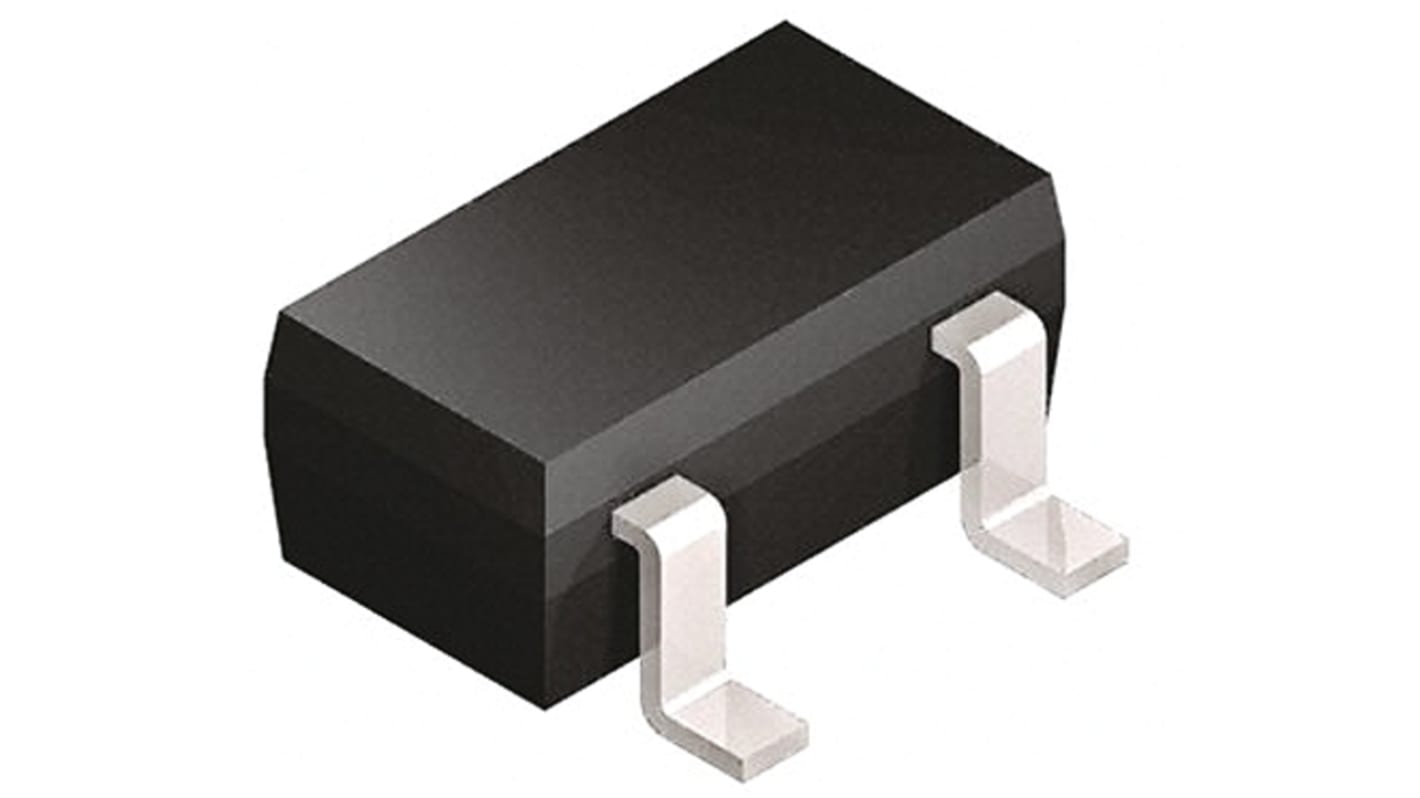

Vishay GSOT08C-E3-08, Dual-Element Bi-Directional ESD Protection Diode, 400W, 3-Pin SOT-23

ESD Protectors, Vishay Semiconductor
