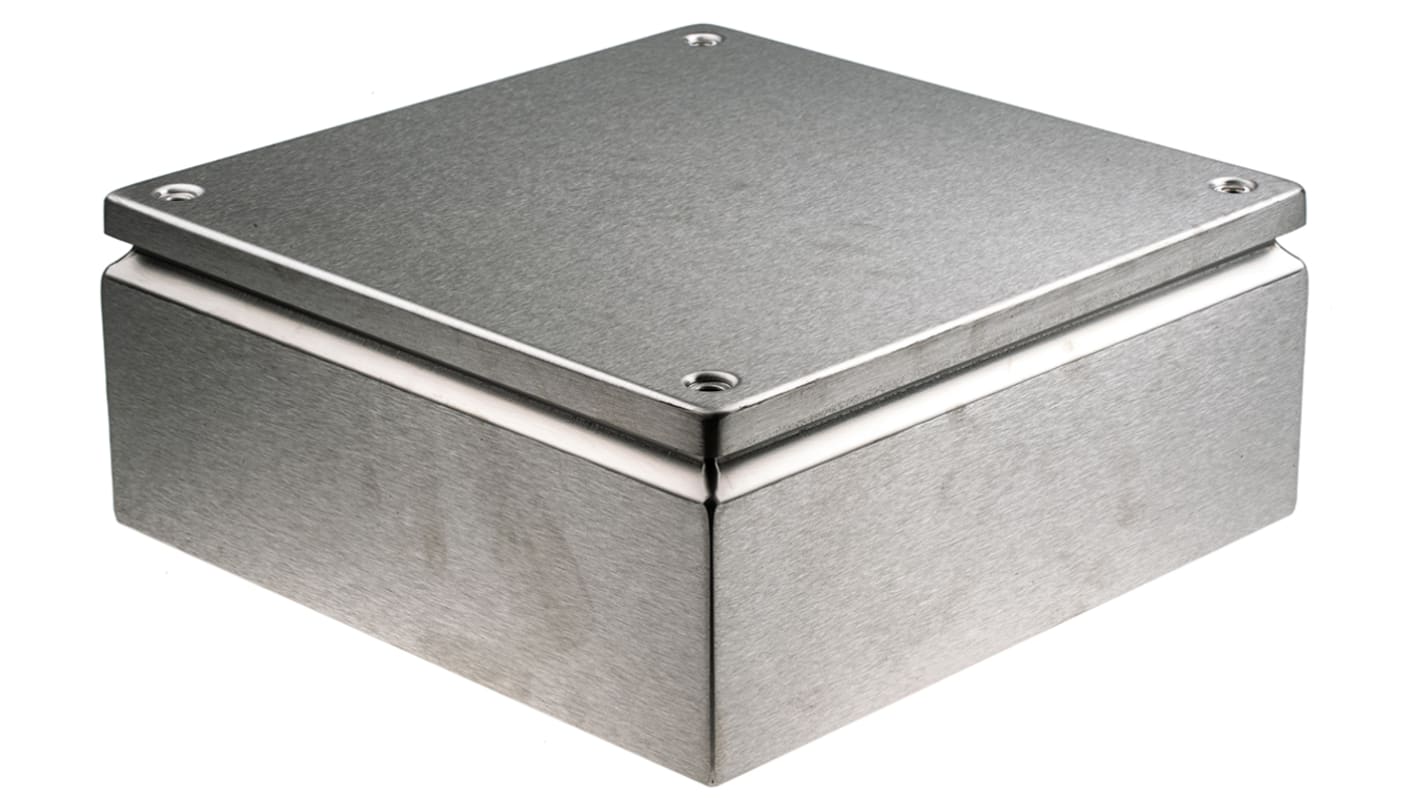

Rittal KL Series Stainless Steel Terminal Box, IP66, 300 mm x 300 mm x 120mm

The KL Series enclosure from Rittal is folded and welded from a single piece of 1.25 mm stainless steel. The cover of the enclosure has a channel with a foamed-in PU seal providing IP66 protection. The inside of the enclosure has profiles with mounting holes for easy installation of a chassis plate or DIN rail.

Retaining cord
Profile strips on both sides of enclosure ensure maximum mounting depth is achieved
Facilities for mounting C rail and 'top hat' DIN rail
Polyurethane sealing gasket
Material 304 / 1.4301 stainless steel

UL, CSA, TUV, VDE

Use this terminal box from Rittal to keep your sensitive wiring safe. It's made of stainless steel for effective resistance to impact and corrosion. The box features a cover that can be secured in place using four screws to help prevent tampering. Its IP66 rating means it's dust-tight and protected against high-pressure water jets, making it suitable for use in demanding environments.

• Compact dimensions of 300 (height) x 300 (width) x 120mm (depth) for space efficiency
• Polyurethane seal helps safeguard equipment against contaminants

• Residential power connections
• Retail industry
• Warehousing and distribution centres

Yes, you can use the mounting holes on the inside of the box to install a DIN rail or chassis plate, making it a versatile choice.

UL; CSA; TUV; VDE
