Friwo Interchangeable AC/DC Adapter AC/DC Adapter Interchangeable 7 W 5V dc Output, 1.4 A
- RS Stock No.:
- 117-6610
- Mfr. Part No.:
- EDV1898096RS
- Manufacturer:
- Friwo
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
€38.59
(exc. VAT)
€47.47
(inc. VAT)
In Stock
- Plus 21 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €38.59 |
| 5 - 9 | €37.44 |
| 10 - 24 | €36.28 |
| 25 - 49 | €35.12 |
| 50 + | €33.96 |
*price indicative
- RS Stock No.:
- 117-6610
- Mfr. Part No.:
- EDV1898096RS
- Manufacturer:
- Friwo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Friwo | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC/DC Adapter | |
| Plug Type | Interchangeable | |
| Output Voltage | 5V dc | |
| Power | 7W | |
| Output Connector Type | Interchangeable | |
| Cable Length | 58mm | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 1.4A | |
| Input Connector Type | Universal Plug | |
| Maximum Operating Temperature | 45°C | |
| Depth | 41mm | |
| Standards/Approvals | IEC 60601-1, CE, cULus, EN 55022, EN 55024, EN 60601-1-2, PSE, SIQ | |
| Width | 31.5mm | |
| Length | 58mm | |
| Efficiency | 80% | |
| Maximum Input Voltage | 100, 110, 115, 120, 127, 220, 230, 240V ac | |
| Minimum Input Voltage | 100V ac | |
| Series | FW8002M | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand Friwo | ||
Product Type AC/DC Adapter | ||
Sub Type AC/DC Adapter | ||
Plug Type Interchangeable | ||
Output Voltage 5V dc | ||
Power 7W | ||
Output Connector Type Interchangeable | ||
Cable Length 58mm | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 1.4A | ||
Input Connector Type Universal Plug | ||
Maximum Operating Temperature 45°C | ||
Depth 41mm | ||
Standards/Approvals IEC 60601-1, CE, cULus, EN 55022, EN 55024, EN 60601-1-2, PSE, SIQ | ||
Width 31.5mm | ||
Length 58mm | ||
Efficiency 80% | ||
Maximum Input Voltage 100, 110, 115, 120, 127, 220, 230, 240V ac | ||
Minimum Input Voltage 100V ac | ||
Series FW8002M | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- DE
Friwo FOX Series Global Plug In Power Adapter
Friwo FOX series of power supplies are a meticulously designed range designed to meet Department of Energy level VI requirements. The Friwo FOX range offers a range of output voltages ranging from 5 to 48 V dc, and is compatible with the FOX interchangeable plug system. Power consumption while idle is low, and the running efficiency offers some of the highest in it's class.
The Friwo FOX series comes equipped with industry standard protection features, such as short circuit, overload & overvoltage.

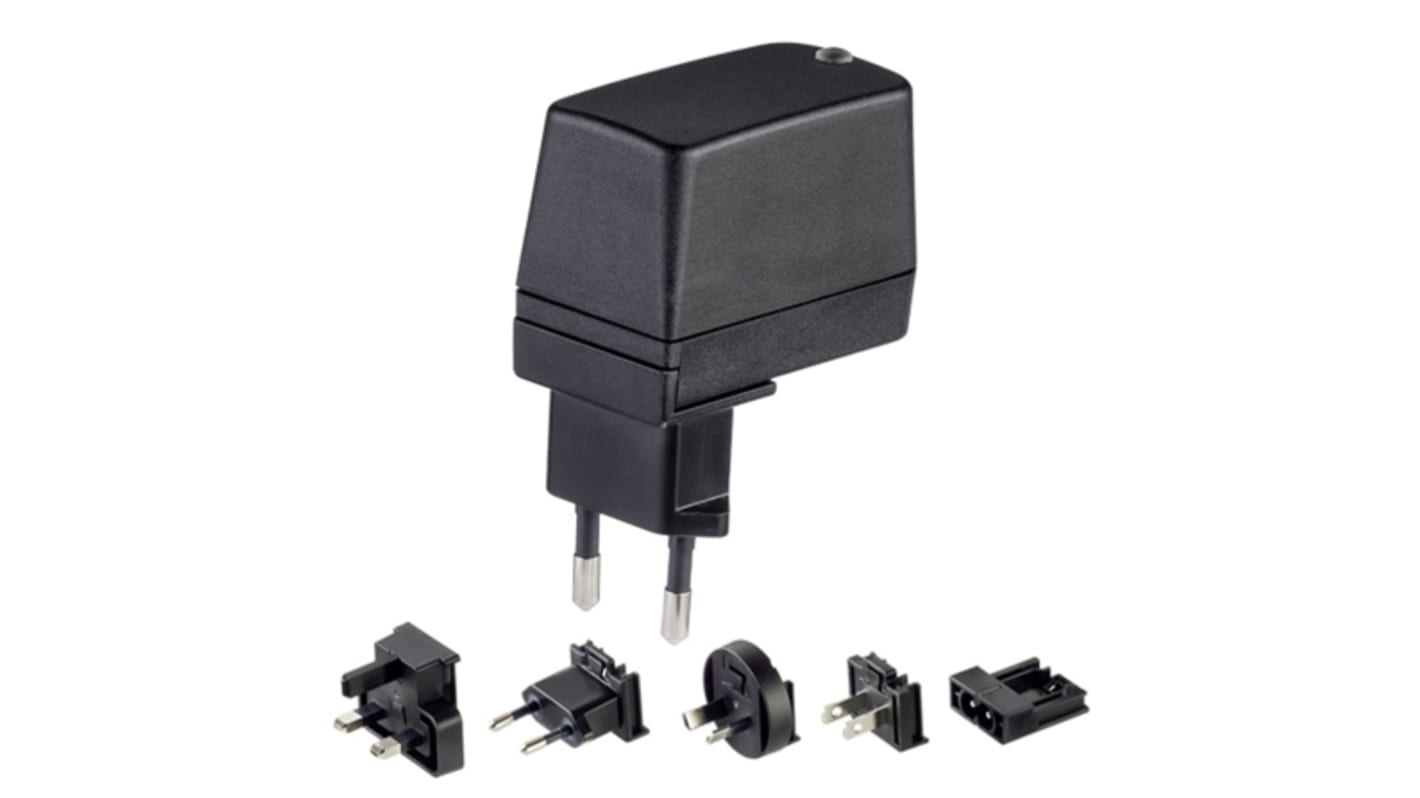

Supplied with 4 interchangeable mains plugs for use in UK, Europe, USA, Japan and Australia.
Features and Benefits
Voltage outputs available from 5 to 48 V dc.
USB output options available.
Interchangeable plug system allows for flexibility.
Medical rated options available, to adhere to 2 x MOPP.
Meets energy efficiency standards DOE Level VI & ErP Level V.
Friwo's partial potting technology within the FOX series provides a cost-effective sealed unit.
Switch Mode - Friwo
Standards
IEC/EN/UL 60950, IEC/EN/ ANSI/AAMI ES60601
Supplied with
A set of 7 output connectors
