Artesyn Embedded Technologies 10W Plug-In AC/DC Adapter 5V dc Output, 2A Output
- RS Stock No.:
- 122-8377
- Mfr. Part No.:
- DA10-050CH
- Manufacturer:
- Artesyn Embedded Technologies
View all AC/DC Adapters
147 In stock for delivery within 2 working days
Price Each
€11.56
(exc. VAT)
€14.22
(inc. VAT)
| units | Per unit |
| 1 - 4 | €11.56 |
| 5 - 9 | €11.10 |
| 10 - 24 | €10.75 |
| 25 - 49 | €10.17 |
| 50 + | €9.48 |
- RS Stock No.:
- 122-8377
- Mfr. Part No.:
- DA10-050CH
- Manufacturer:
- Artesyn Embedded Technologies
- COO (Country of Origin):
- CN
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

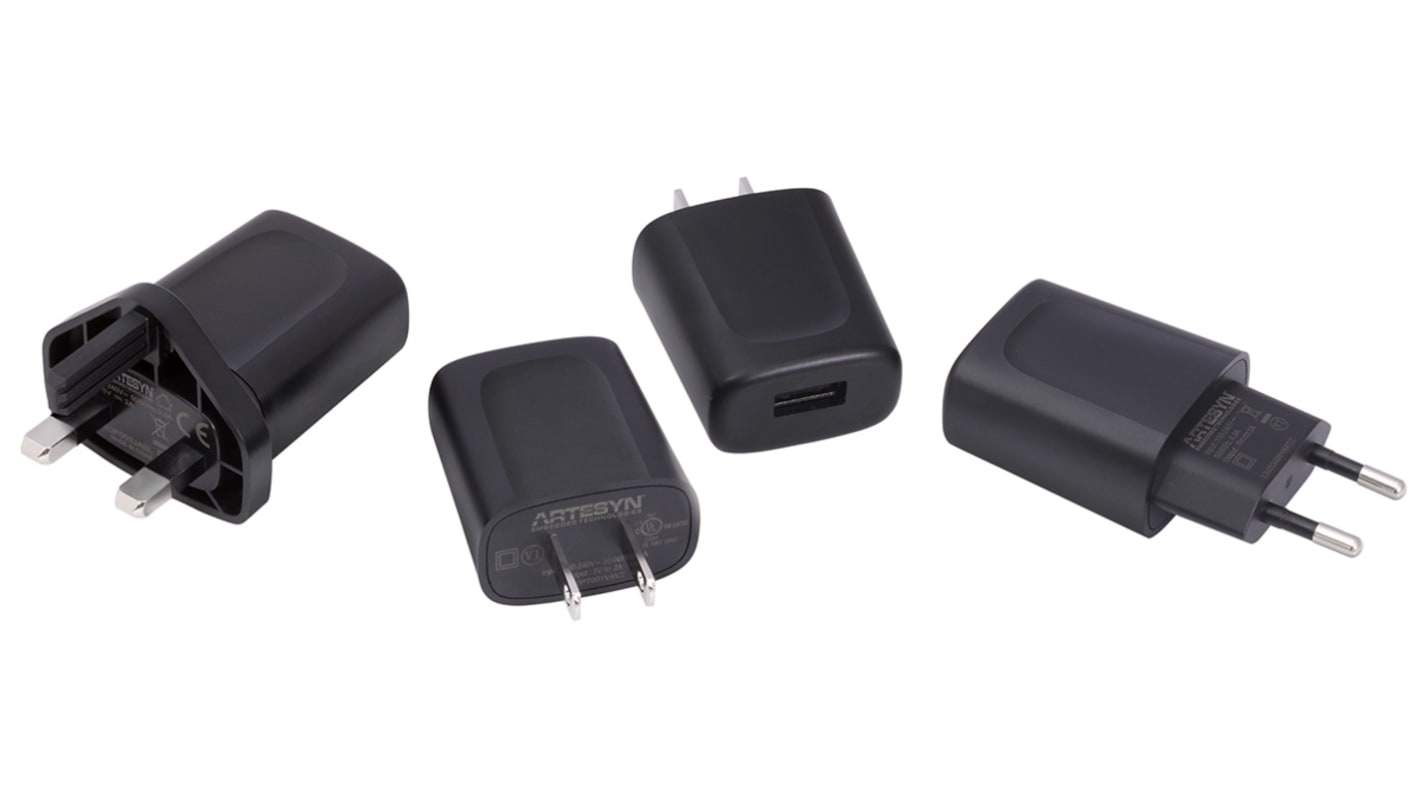

DA10-050 Series of 10 W USB Power Adapters
The DA10-050 series from Artesyn offers an excellent range of single output, 10 watt USB power adapters. These highly reliable power supplies are available in a small 44 x 39.5 x 25 mm package (excluding AC pins) and have an input voltage range from 100 – 240 Vac. The range also attributes a USB connector output and a high average loading efficiency of 79%. The DA-050 series is protected for overvoltage, over-temperature, overcurrent and short circuit and is available with a US, EU, UK and Chinese plug-in.
10 W USB Plug-in Adapters
Single Output
USB connector output
79% Average loading efficiency
Available with US, EU, UK and Chinese plug-in
Reinforced isolation 3000 Vac rms
-10 °C to +40 °C Operating temperature
Single Output
USB connector output
79% Average loading efficiency
Available with US, EU, UK and Chinese plug-in
Reinforced isolation 3000 Vac rms
-10 °C to +40 °C Operating temperature
Specifications
| Attribute | Value |
| Adapter Type | Plug-In Adapter |
| Plug Type | Type A |
| Output Voltage | 5V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 2A |
| Maximum Temperature | +40°C |
| Output Connector | USB Type A |
| Input Connector | US Plug |
| Number of Outputs | 1 |
| Power Rating | 10W |
| Regulated/Unregulated | Regulated |
| Medical Approved | No |
| MTBF | >100000h |
| Standards Met | CCC, CE, C-Tick, cUL/UL 60950-1, EM 55022, EN 60950-1, European CoC V5 T2 Compliance, FCC, GS, IEC 62368-1, IEC/EN 60950-1, IRAM, NOM-NYCE, NSW, REACH, SPRING, WEEE |
| Depth | 44mm |
| Minimum Temperature | -10°C |
| Width | 25mm |
| Type | USB Adapter |
| Series | DA10-050 |
| Length | 39.5mm |
