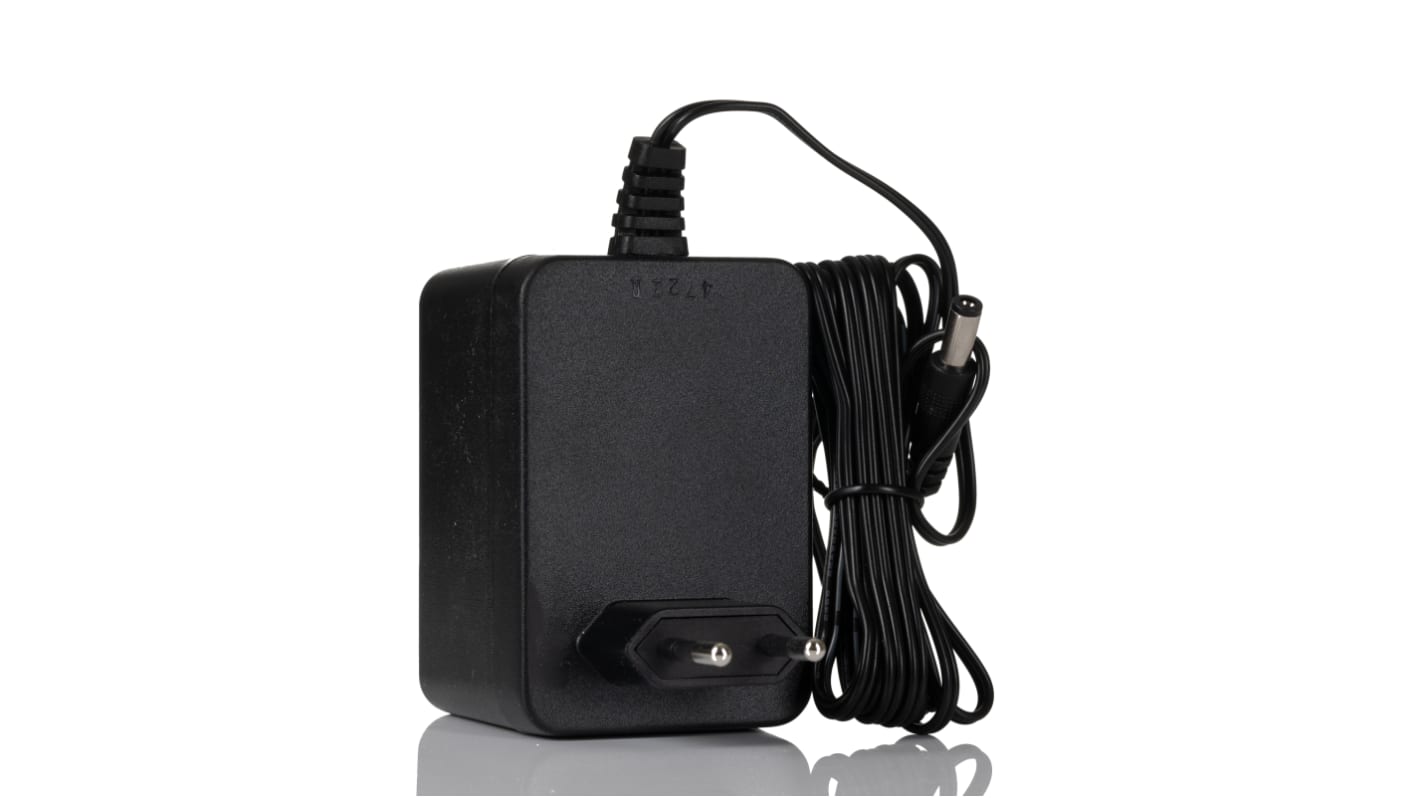

RS PRO 18 W Interchangeable AC-DC Power Adapter AC/AC Adapter EU 24V ac Output, 0.5 A
- RS Stock No.:
- 251-9232
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
€23.37
(exc. VAT)
€28.75
(inc. VAT)
In Stock
- 63 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €23.37 |
| 5 - 9 | €22.66 |
| 10 - 24 | €21.96 |
| 25 - 49 | €21.26 |
| 50 + | €20.55 |
*price indicative
- RS Stock No.:
- 251-9232
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Sub Type | Interchangeable AC-DC Power Adapter | |
| Product Type | AC/AC Adapter | |
| Plug Type | EU | |
| Output Voltage | 24V ac | |
| Power | 18W | |
| Output Connector Type | 2.5 x 5.5 mm | |
| Cable Length | 1.8mm | |
| Number of Outputs | 1 | |
| Regulated/Unregulated | Unregulated | |
| Input Connector Type | 2-Pin | |
| Adapter Current | 0.5A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | EN 61558-1/61558-2-6 | |
| Length | 81.5mm | |
| Width | 56mm | |
| Efficiency | 80% | |
| Maximum Input Voltage | 240V ac | |
| Minimum Input Voltage | 230V ac | |
| Series | 2519232 | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Sub Type Interchangeable AC-DC Power Adapter | ||
Product Type AC/AC Adapter | ||
Plug Type EU | ||
Output Voltage 24V ac | ||
Power 18W | ||
Output Connector Type 2.5 x 5.5 mm | ||
Cable Length 1.8mm | ||
Number of Outputs 1 | ||
Regulated/Unregulated Unregulated | ||
Input Connector Type 2-Pin | ||
Adapter Current 0.5A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals EN 61558-1/61558-2-6 | ||
Length 81.5mm | ||
Width 56mm | ||
Efficiency 80% | ||
Maximum Input Voltage 240V ac | ||
Minimum Input Voltage 230V ac | ||
Series 2519232 | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
RS PRO 18W AC 2 Pin European Adaptor Plug with 2.1 x 5.5mm Barrel Plug Output
A hardwearing and high performing AC/AC adaptor plug fitted with a 2 Pin Euro plug on one end and a 2.1 x 5.5mm barrel jack on the other.;The RS PRO 24V power supply unit meets Efficiency Level VI rating.;The AC power supply unit is suitable for use in a wide range of applications including audio and video equipment, networking, telecommunication, lighting as well as connecting peripherals.
Features and Benefits
Approvals and Standards: TUV, CE, cULus, RCM (C-Tick), RoHS, REACH, EN 661558-1/61558-2-6, Level VI Efficiency Regulations, EMC FCC Class B Certified.
Why RS PRO?
Looking to reduce costs but keep the same quality? ;With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.;Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.
