MPN

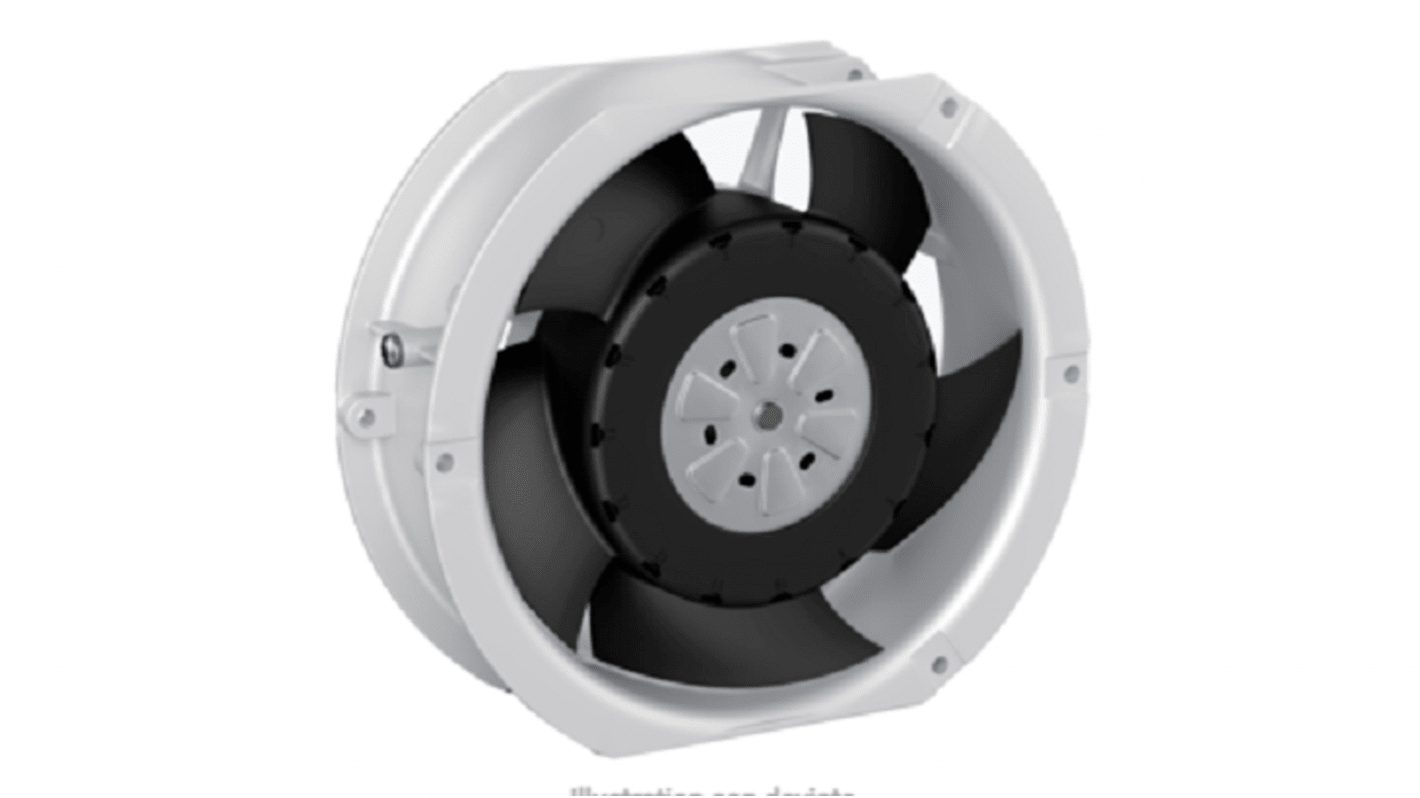

ebm-papst Axial Fan, 48 V dc, DC Operation, 650m³/h, 98W, 2.05A Max, 172 x 150 x 51mm

RS Stock No.:: 238-8848
Distrelec Article No.:: 302-20-603
Mfr. Part No.:: AF172-000059 48V P/2 8.300
Manufacturer:: ebm-papst

ebm-papst Axial Fan, 48 V dc, DC Operation, 650m³/h, 98W, 2.05A Max, 172 x 150 x 51mm

Bulk discount available

Subtotal (1 unit)*

€202.68

(exc. VAT)

€249.30

(inc. VAT)

In Stock

62 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	€202.68
10 - 24	€198.62
25 - 49	€190.52
50 +	€172.28

*price indicative

RS Stock No.:: 238-8848
Distrelec Article No.:: 302-20-603
Mfr. Part No.:: AF172-000059 48V P/2 8.300
Manufacturer:: ebm-papst

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ebm-papst
	Supply Voltage	48 V dc
	Height	172mm
	AC or DC Operation	DC
	Power Consumption	98W
	Width	150mm
	Maximum Current	2.05A
	Depth	51mm
	Dimensions	172 x 150 x 51mm
	Air Flow	650m³/h
	Sensor Type	PWM, Tachometer

	Select all
	Brand ebm-papst
	Supply Voltage 48 V dc
	Height 172mm
	AC or DC Operation DC
	Power Consumption 98W
	Width 150mm
	Maximum Current 2.05A
	Depth 51mm
	Dimensions 172 x 150 x 51mm
	Air Flow 650m³/h
	Sensor Type PWM, Tachometer

Datasheet - AF172-000059 48V P/2 8.300

The ebm-papst DC axial fan is a direct-current drive operated general fan motor with developed geometry and provides smooth rotation using three phase motor concept which generates less extra heat in the rotor and stator.

Air flow direction exhaust over struts
Rotational direction counter clockwise, looking towards rotor
Material housing Aluminium
Material impeller plastic (PA)
PWM control input

ebm-papst Axial Fan, 48 V dc, DC Operation, 650m³/h, 98W, 2.05A Max, 172 x 150 x 51mm
