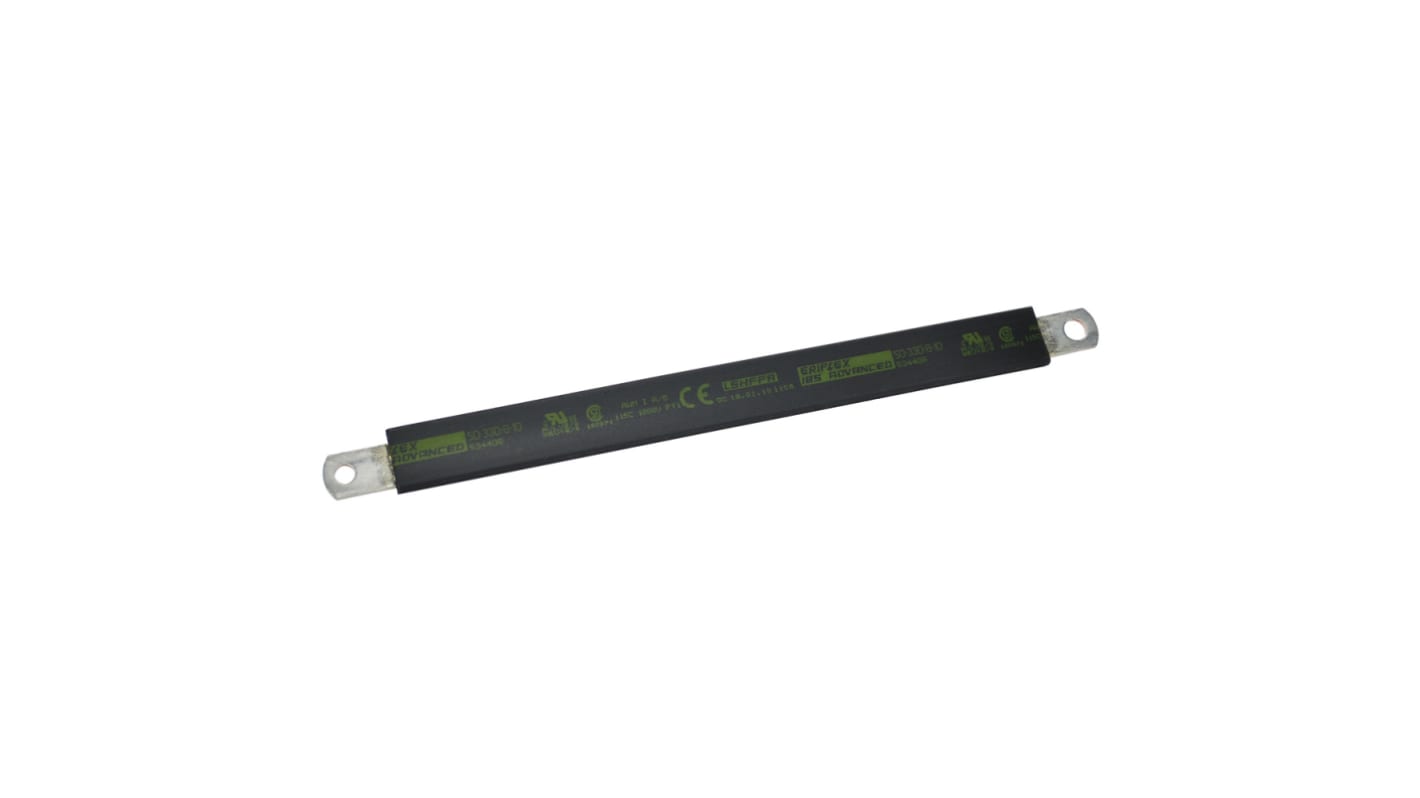

nVent ERIFLEX Braided Wire, 8.5 mm, 10.5 mm Stud Size, 830mm, 250 A, CE, CSA
- RS Stock No.:
- 277-6055
- Mfr. Part No.:
- 534412
- Manufacturer:
- nVent ERIFLEX
Subtotal (1 pack of 10 units)*
€522.36
(exc. VAT)
€642.50
(inc. VAT)
Temporarily out of stock
- Shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | €522.36 | €52.236 |
*price indicative
- RS Stock No.:
- 277-6055
- Mfr. Part No.:
- 534412
- Manufacturer:
- nVent ERIFLEX
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent ERIFLEX | |
| Fire Behaviour | UL 94 V0 / V2 | |
| Conductor Material | Copper | |
| Cross Sectional Area | 50 mm² | |
| Current Rating | 250 A | |
| Length | 830mm | |
| Stud Size | 8.5 mm, 10.5 mm | |
| Standards Met | CE, CSA | |
| Select all | ||
|---|---|---|
Brand nVent ERIFLEX | ||
Fire Behaviour UL 94 V0 / V2 | ||
Conductor Material Copper | ||
Cross Sectional Area 50 mm² | ||
Current Rating 250 A | ||
Length 830mm | ||
Stud Size 8.5 mm, 10.5 mm | ||
Standards Met CE, CSA | ||
- COO (Country of Origin):
- FR
The nVent ERIFLEX IBSB Advanced Insulated Braided Conductor is the ideal ready-to-install flexible wire replacement solution that is specifically designed for connections to all molded case circuit breakers, including the most compact breakers on the market. The halogen–free feature enables a reduction in the quantity of toxic smoke. The advanced technology insulation is a high-resistance low smoke, halogen-free and flame retardant thermoplastic.
Small wire diameter provides maximum flexibility
Resistant to vibration, improving reliability and performance
Improves assembly flexibility and aesthetics
