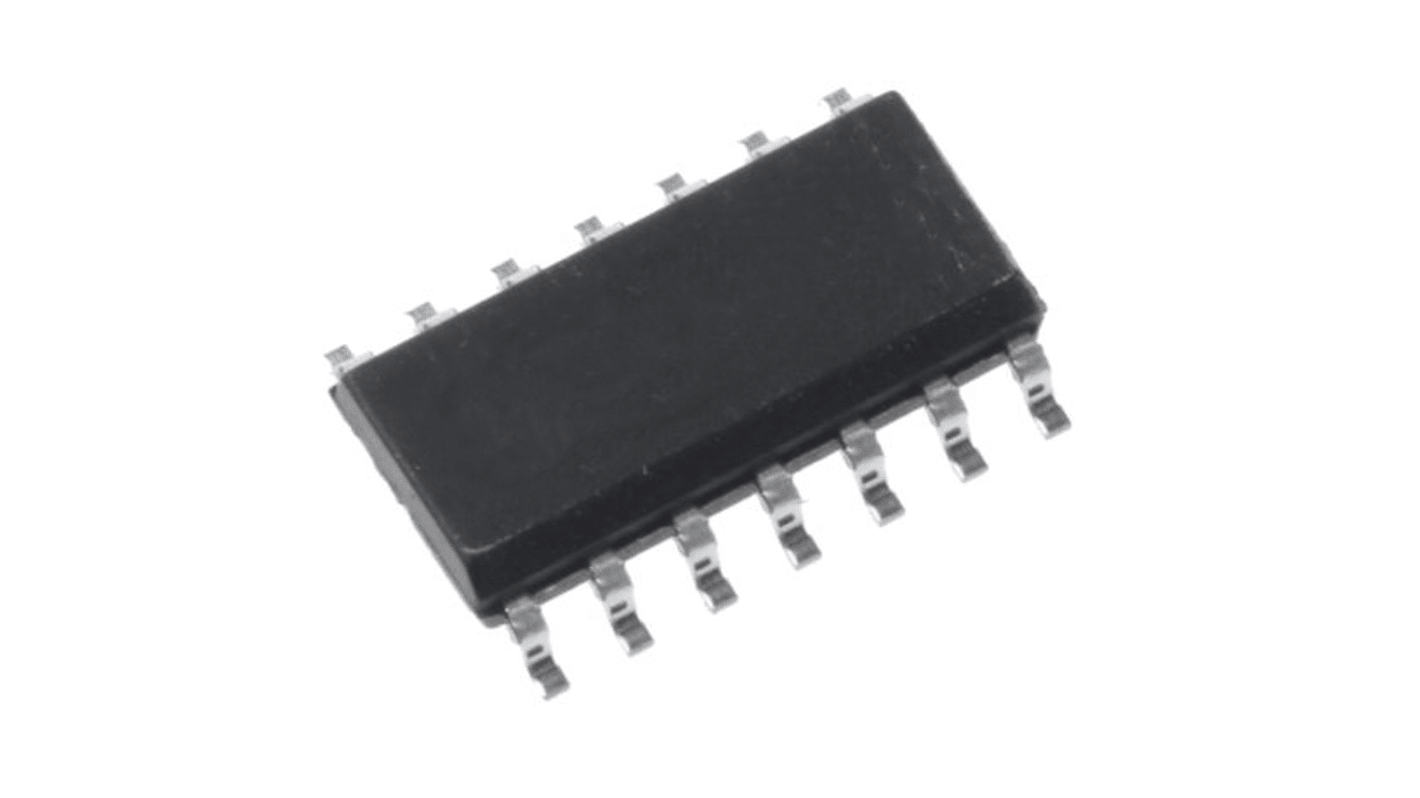

Renesas Electronics QS3125S1G, Bus Switch, 1 x 1:1
- RS Stock No.:
- 254-5003
- Mfr. Part No.:
- QS3125S1G
- Manufacturer:
- Renesas Electronics
60 In stock for delivery within 2 working days
Price Each (In a Tube of 55)
€0.631
(exc. VAT)
€0.776
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 55 - 55 | €0.631 | €34.705 |
| 110 - 220 | €0.482 | €26.51 |
| 275 - 495 | €0.449 | €24.695 |
| 550 - 990 | €0.367 | €20.185 |
| 1045 + | €0.292 | €16.06 |
*price indicative
- RS Stock No.:
- 254-5003
- Mfr. Part No.:
- QS3125S1G
- Manufacturer:
- Renesas Electronics
Technical data sheets
Legislation and Compliance
Product Details
The Renesas Electronics quadruple bus switch, high-speed low resistance CMOS switches connecting inputs to outputs without propagation delay and without generating additional ground bounce noise. Individual enables (OE) are used to turn on the switches. It is ideal for signal and control switching since the device adds no noise, ground bounce, propagation delay, or significant power consumption to the system. It can also be used for analog switching applications such as video. Quick switch devices provide an order of magnitude faster speed than conventional logic devices. It is characterized for operation at -40°C to +85°C.
Enhanced N channel FET with no inherent diode to Vcc
Pin compatible with the 74’125 function
Zero propagation delay, zero added ground bounce
Undershoot clamp diodes on all switch and control inputs
Available in QSOP and SOIC packages
Pin compatible with the 74’125 function
Zero propagation delay, zero added ground bounce
Undershoot clamp diodes on all switch and control inputs
Available in QSOP and SOIC packages
Specifications
Attribute | Value |
|---|---|
| Logic Family | CMOS |
| Configuration | 1 x 1:1 |
| Number of Elements per Chip | 4 |
| Number of Inputs per Chip | 4 |
| Number of Outputs per Chip | 4 |
