Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	ABT
	Logic Function	Bus Transceiver
	Number of Elements per Chip	2
	Number of Channels per Chip	16
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SSOP
	Pin Count	48
	Input Level	TTL
	Output Level	3-State
	Maximum High Level Output Current	-32mA
	Maximum Low Level Output Current	64mA
	Maximum Propagation Delay Time @ Maximum CL	5.1 ns @ 50 pF
	Maximum Operating Supply Voltage	5.5 V
	Width	7.59mm
	Height	2.59mm
	Minimum Operating Supply Voltage	4.5 V
	Dimensions	16 x 7.59 x 2.59mm
	Minimum Operating Temperature	-40 °C
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+85 °C
	Length	16mm

	Select all
	Brand Texas Instruments
	Logic Family ABT
	Logic Function Bus Transceiver
	Number of Elements per Chip 2
	Number of Channels per Chip 16
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SSOP
	Pin Count 48
	Input Level TTL
	Output Level 3-State
	Maximum High Level Output Current -32mA
	Maximum Low Level Output Current 64mA
	Maximum Propagation Delay Time @ Maximum CL 5.1 ns @ 50 pF
	Maximum Operating Supply Voltage 5.5 V
	Width 7.59mm
	Height 2.59mm
	Minimum Operating Supply Voltage 4.5 V
	Dimensions 16 x 7.59 x 2.59mm
	Minimum Operating Temperature -40 °C
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +85 °C
	Length 16mm

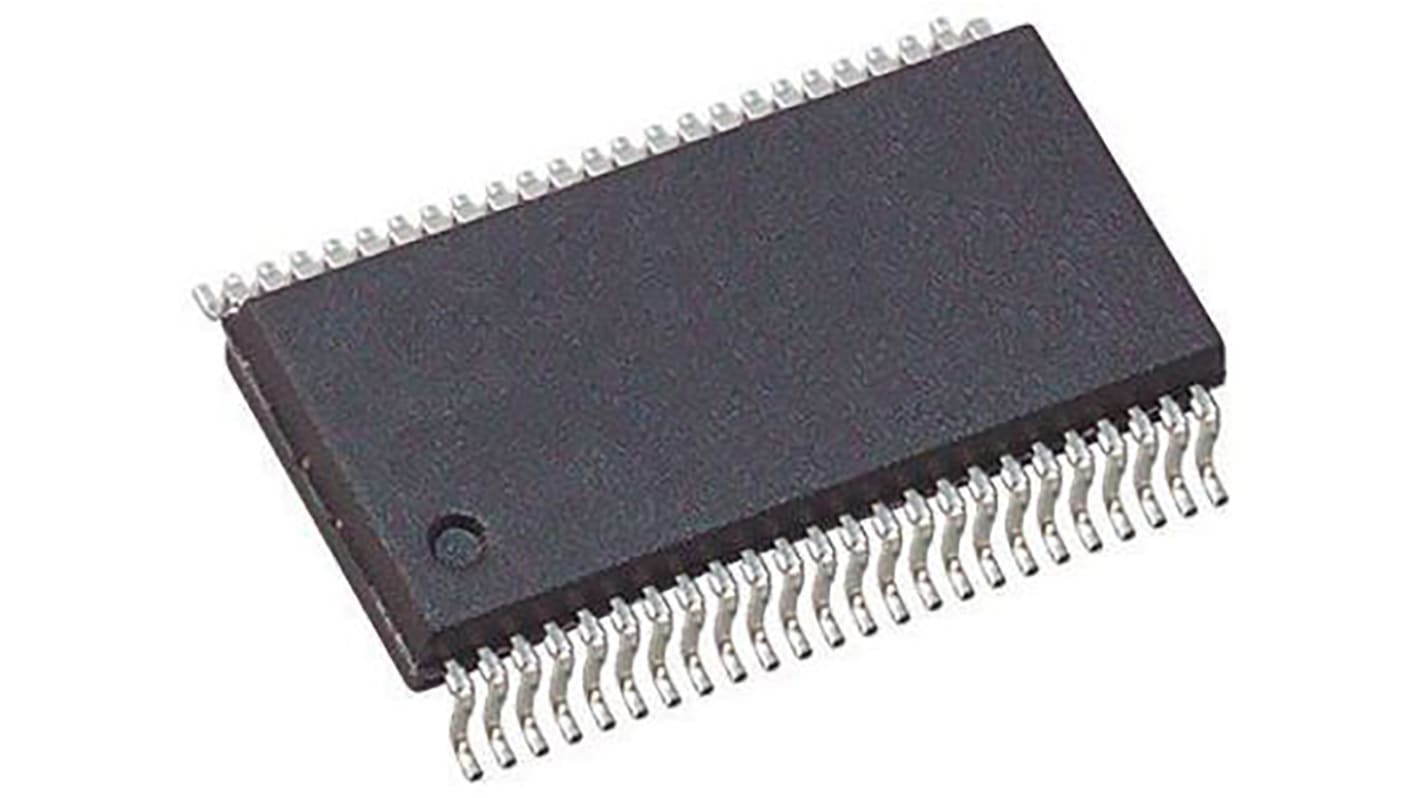

Texas Instruments SN74ABT162245DLR, Dual Bus Transceiver, 16-Bit Non-Inverting 3-State, 48-Pin SSOP

74ABT Family, Texas Instruments
