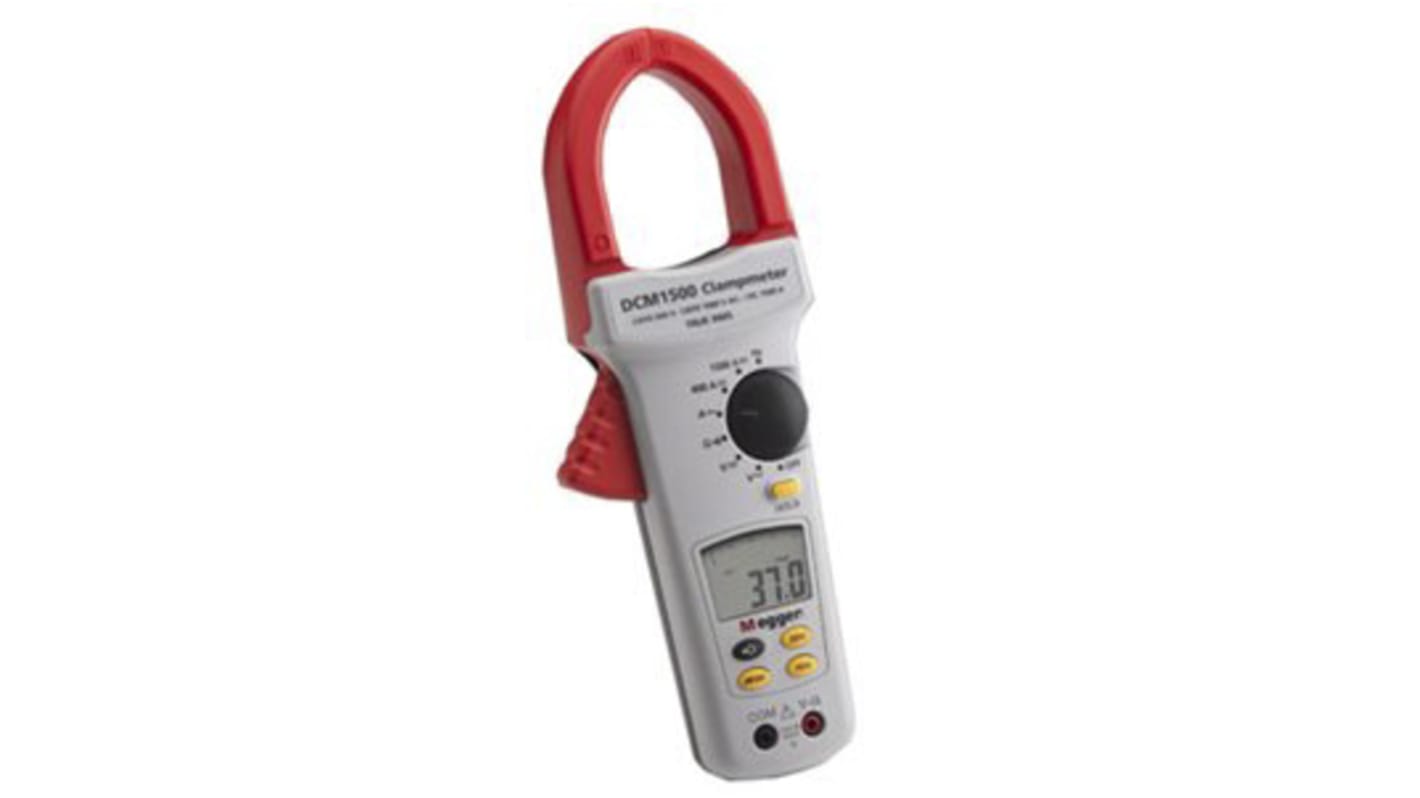

Megger DCM1500 Clamp Meter, 1500A dc, Max Current 1500A ac CAT IV With RS Calibration
- RS Stock No.:
- 181-5026
- Mfr. Part No.:
- 1005-572
- Manufacturer:
- Megger
Subtotal (1 unit)*
€484.00
(exc. VAT)
€595.32
(inc. VAT)
- 1 unit(s) ready to ship
- Plus 4 unit(s) shipping from 20 August 2025
Units | Per unit |
|---|---|
| 1 + | €484.00 |
*price indicative
- RS Stock No.:
- 181-5026
- Mfr. Part No.:
- 1005-572
- Manufacturer:
- Megger
Select all | Attribute | Value |
|---|---|---|
| Brand | Megger | |
| Absolute Maximum AC Current Measurement | 1500A ac | |
| Absolute Maximum DC Current Measurement | 1500A dc | |
| Absolute Maximum AC Voltage Measurement | 1500V ac | |
| Absolute Maximum DC Voltage Measurement | 1500V dc | |
| Absolute Maximum Resistance Measurement | 400Ω | |
| Model Number | DCM1500 | |
| Calibrated | RSCAL | |
| AC Current Measurement Resolution | 100mA | |
| DC Current Measurement Resolution | 100mA | |
| Best DC Current Accuracy | ±2.5% ±7 Digits | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| Best AC Current Accuracy | ±3% ±7 Digits | |
| Best AC Voltage Accuracy | ±1% ±5 Digits | |
| Best DC Voltage Accuracy | ±0.7% ±2 Digits | |
| Jaw Capacity Busbars | 51mm | |
| True RMS | Yes | |
| Functions Measured | AC Current, DC Current | |
| Battery Type | Alkaline | |
| Absolute Maximum Temperature Measurement | +50°C | |
| Safety Category | CAT IV 600V | |
| Safety Category Voltage | 600V | |
| Height | 48mm | |
| Minimum Operating Temperature | 0°C | |
| Best Temperature Measurement Accuracy | >80 % | |
| Display Type | LCD | |
| Maximum Operating Temperature | +50°C | |
| Dimensions | 275 x 105 x 48mm | |
| Resistance Measurement Resolution | 100mΩ | |
| Length | 275mm | |
| Width | 105mm | |
| Power Source | Battery | |
| DC Voltage Measurement Resolution | 100mV | |
| Safety Category Level | CAT IV | |
| Weight | 524g | |
| Battery Life | 100 h | |
| Best Resistance Measurement Accuracy | ±1% ±3 Digits | |
| AC Voltage Measurement Resolution | 100mV | |
| Maximum Conductor Size | 51mm | |
Select all | ||
|---|---|---|
Brand Megger | ||
Absolute Maximum AC Current Measurement 1500A ac | ||
Absolute Maximum DC Current Measurement 1500A dc | ||
Absolute Maximum AC Voltage Measurement 1500V ac | ||
Absolute Maximum DC Voltage Measurement 1500V dc | ||
Absolute Maximum Resistance Measurement 400Ω | ||
Model Number DCM1500 | ||
Calibrated RSCAL | ||
AC Current Measurement Resolution 100mA | ||
DC Current Measurement Resolution 100mA | ||
Best DC Current Accuracy ±2.5% ±7 Digits | ||
Clamp Meter Type AC/DC Clamp Meter | ||
Best AC Current Accuracy ±3% ±7 Digits | ||
Best AC Voltage Accuracy ±1% ±5 Digits | ||
Best DC Voltage Accuracy ±0.7% ±2 Digits | ||
Jaw Capacity Busbars 51mm | ||
True RMS Yes | ||
Functions Measured AC Current, DC Current | ||
Battery Type Alkaline | ||
Absolute Maximum Temperature Measurement +50°C | ||
Safety Category CAT IV 600V | ||
Safety Category Voltage 600V | ||
Height 48mm | ||
Minimum Operating Temperature 0°C | ||
Best Temperature Measurement Accuracy >80 % | ||
Display Type LCD | ||
Maximum Operating Temperature +50°C | ||
Dimensions 275 x 105 x 48mm | ||
Resistance Measurement Resolution 100mΩ | ||
Length 275mm | ||
Width 105mm | ||
Power Source Battery | ||
DC Voltage Measurement Resolution 100mV | ||
Safety Category Level CAT IV | ||
Weight 524g | ||
Battery Life 100 h | ||
Best Resistance Measurement Accuracy ±1% ±3 Digits | ||
AC Voltage Measurement Resolution 100mV | ||
Maximum Conductor Size 51mm | ||
