Megger DCM1500S Clamp Meter, 1500A dc, Max Current 1500A ac CAT III, CAT IV With RS Calibration

RS Stock No.:: 225-7907
Mfr. Part No.:: 1013-357
Manufacturer:: Megger

Megger DCM1500S Clamp Meter, 1500A dc, Max Current 1500A ac CAT III, CAT IV With RS Calibration

Subtotal (1 unit)*

€634.00

(exc. VAT)

€779.82

(inc. VAT)

In Stock

3 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€634.00

*price indicative

Compare

RS Stock No.:: 225-7907
Mfr. Part No.:: 1013-357
Manufacturer:: Megger

Megger DCM1500S Clamp Meter, For Solar and Standard Installations, Backlit Display - DCM1500 Series - 1013-357

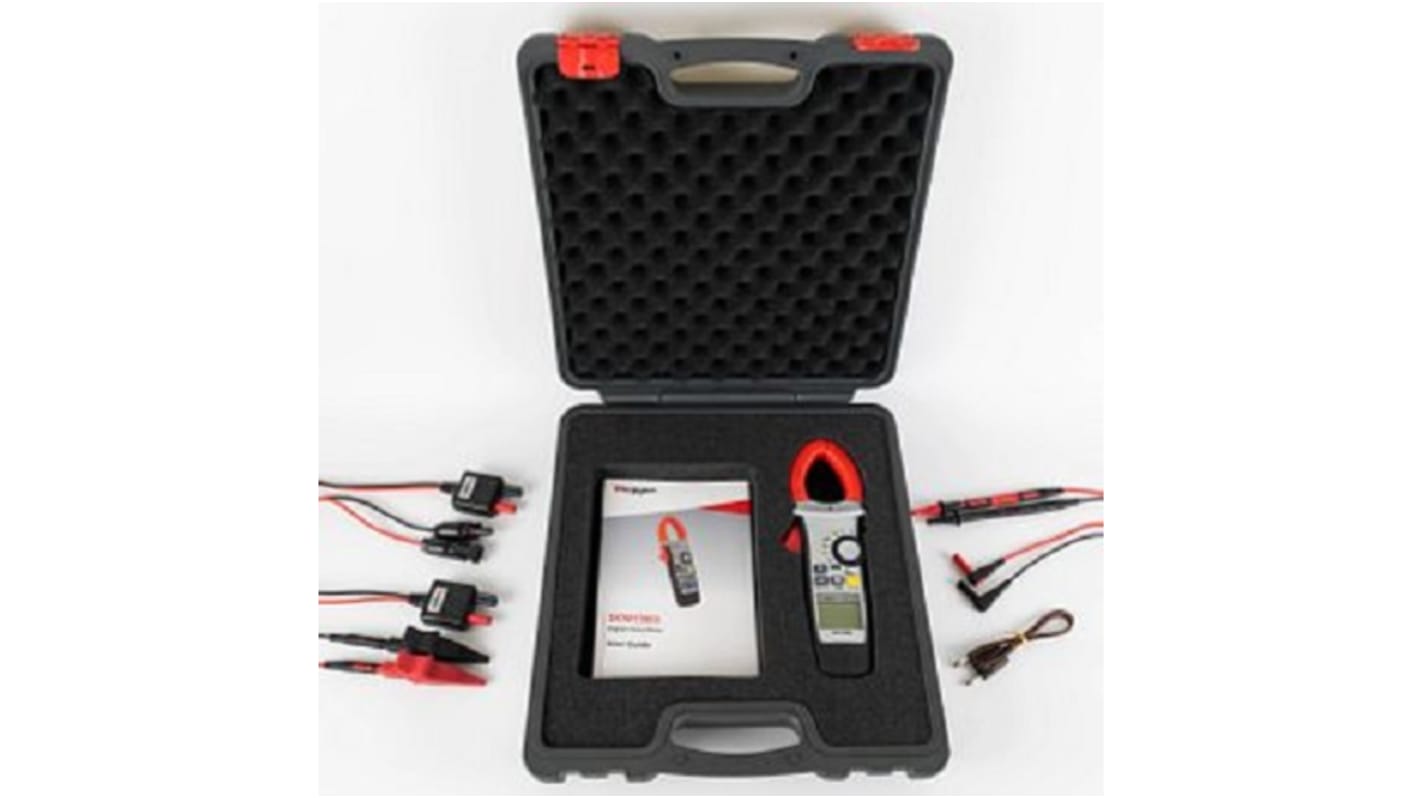

Get your solar installation up and running in a jiffy with this clamp meter from Megger. It measures the volts, resistance, current and frequency of both photovoltaic and standard electrical circuits. This makes it a handy tool for maintenance, fault-finding and monitoring. To cut down on the chance of your hand coming into contact with live wires, the unit has a tactile barrier below its jaws. An integrated automatic torch conveniently lights up dark corners. The product comes with a hard carry case to take care of safe storage and transportation.
The DCM1500S is a versatile AC/DC clamp meter designed for use with solar/photovoltaic (PV) systems and other electrical equipment. It can measure a wide range of electrical parameters, including:

Voltage: Up to 2000 V DC and 1500 V AC (using the PVHV Leads)
Current: Up to 1500 A AC or DC
Resistance: Up to 40 MΩ
Diode: Up to 2 V
Capacitance: Up to 100 mF
Frequency: Up to 100 kHz
Temperature: -40°C to 1000°C (-40°F to 1832°F)

Features & Benefits

• Suitable to use with motors, thanks to the inrush current measurement function
• Large backlit display is easy to read
• Test leads and thermocouple probe included for out-of-the-box operation
• Smart Hold technology conveniently uses an audible tone to monitor measurement increases
• An automatic torch in the jaw to help you see what you are doing
• A tactile barrier below the jaws to help keep your hands safe when measuring current on live conductors
• Bluetooth connectivity so you can monitor measurements remotely using the Megger Link App
• An auto power off function to conserve battery life
• True RMS technology for accurate measurements, even on distorted waveforms
• 6000 Count digital display
• Data logger (up to 4000 sample values)
• Manual save mode
• Frequency counter
• Auto selecting 1500A AC/DC current measurement
• ohms/continuity test
• Continuity Beeper
• Non-contact volt alert
• DCA auto-zeroing button
• High frequency noise rejection filter
• Lo Z AC/DC voltage
• Auto power off (APO)
• CAT IV 600V, III 1000V Rating
• Drop-tested - it can withstand a drop of 1.2 meters onto a hard floor

Applications

• Wind power generation
• Electro-plating plants
• Automotive manufacturing
• Heating systems

Does this clamp meter log data?

Yes, the instrument's generous data logging capacity lets you store up to 1000 records. To expand the unit's capabilities, you can download the Megger Link App on your smartphone or tablet for straightforward remote surveillance and analysis.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Megger
	Absolute Maximum AC Current Measurement	1500A ac
	Absolute Maximum DC Current Measurement	1500A dc
	Absolute Maximum AC Voltage Measurement	1000V ac
	Absolute Maximum DC Voltage Measurement	1000V dc
	Model Number	DCM1500S
	Calibrated	RSCAL
	AC Current Measurement Resolution	0.1A ac
	DC Current Measurement Resolution	100000µA
	Best DC Current Accuracy	±(2.0% + 5d)
	Clamp Meter Type	Solar Clamp Meter
	Best AC Current Accuracy	±(2.0% + 5d)
	Best AC Voltage Accuracy	±(1.0% + 5d)
	True RMS	Yes
	Best DC Voltage Accuracy	±(0.7% + 2d)
	Power Source	Battery
	Safety Category	CAT III, CAT IV
	Non-Contact Voltage Detector	Yes
	Width	88mm
	Length	254mm
	Display Type	LCD
	Resistance Measurement Resolution	100mΩ
	DC Current Measurement Range	60 → 1500 A
	Minimum Operating Temperature	-10°C
	AC Voltage Measurement Resolution	0.1V ac
	AC Current Measurement Range	60 → 1500 A
	AC Voltage Measurement Range	80 → 1000 V
	Maximum Conductor Size	42mm
	Battery Life	100 h
	Weight	470g
	Safety Category Level	CAT III, CAT IV
	Best Temperature Measurement Accuracy	±(1% + 20d/36d)
	DC Voltage Measurement Resolution	0.1V dc
	Maximum Operating Temperature	+50°C
	Height	51mm
	Absolute Maximum Temperature Measurement	+400°C
	Battery Type	LR6 1.5V
	Safety Category Voltage	8000V
	Temperature Measurement Resolution	0.1°C
	Dimensions	254 x 88 x 51mm

	Select all
	Brand Megger
	Absolute Maximum AC Current Measurement 1500A ac
	Absolute Maximum DC Current Measurement 1500A dc
	Absolute Maximum AC Voltage Measurement 1000V ac
	Absolute Maximum DC Voltage Measurement 1000V dc
	Model Number DCM1500S
	Calibrated RSCAL
	AC Current Measurement Resolution 0.1A ac
	DC Current Measurement Resolution 100000µA
	Best DC Current Accuracy ±(2.0% + 5d)
	Clamp Meter Type Solar Clamp Meter
	Best AC Current Accuracy ±(2.0% + 5d)
	Best AC Voltage Accuracy ±(1.0% + 5d)
	True RMS Yes
	Best DC Voltage Accuracy ±(0.7% + 2d)
	Power Source Battery
	Safety Category CAT III, CAT IV
	Non-Contact Voltage Detector Yes
	Width 88mm
	Length 254mm
	Display Type LCD
	Resistance Measurement Resolution 100mΩ
	DC Current Measurement Range 60 → 1500 A
	Minimum Operating Temperature -10°C
	AC Voltage Measurement Resolution 0.1V ac
	AC Current Measurement Range 60 → 1500 A
	AC Voltage Measurement Range 80 → 1000 V
	Maximum Conductor Size 42mm
	Battery Life 100 h
	Weight 470g
	Safety Category Level CAT III, CAT IV
	Best Temperature Measurement Accuracy ±(1% + 20d/36d)
	DC Voltage Measurement Resolution 0.1V dc
	Maximum Operating Temperature +50°C
	Height 51mm
	Absolute Maximum Temperature Measurement +400°C
	Battery Type LR6 1.5V
	Safety Category Voltage 8000V
	Temperature Measurement Resolution 0.1°C
	Dimensions 254 x 88 x 51mm
