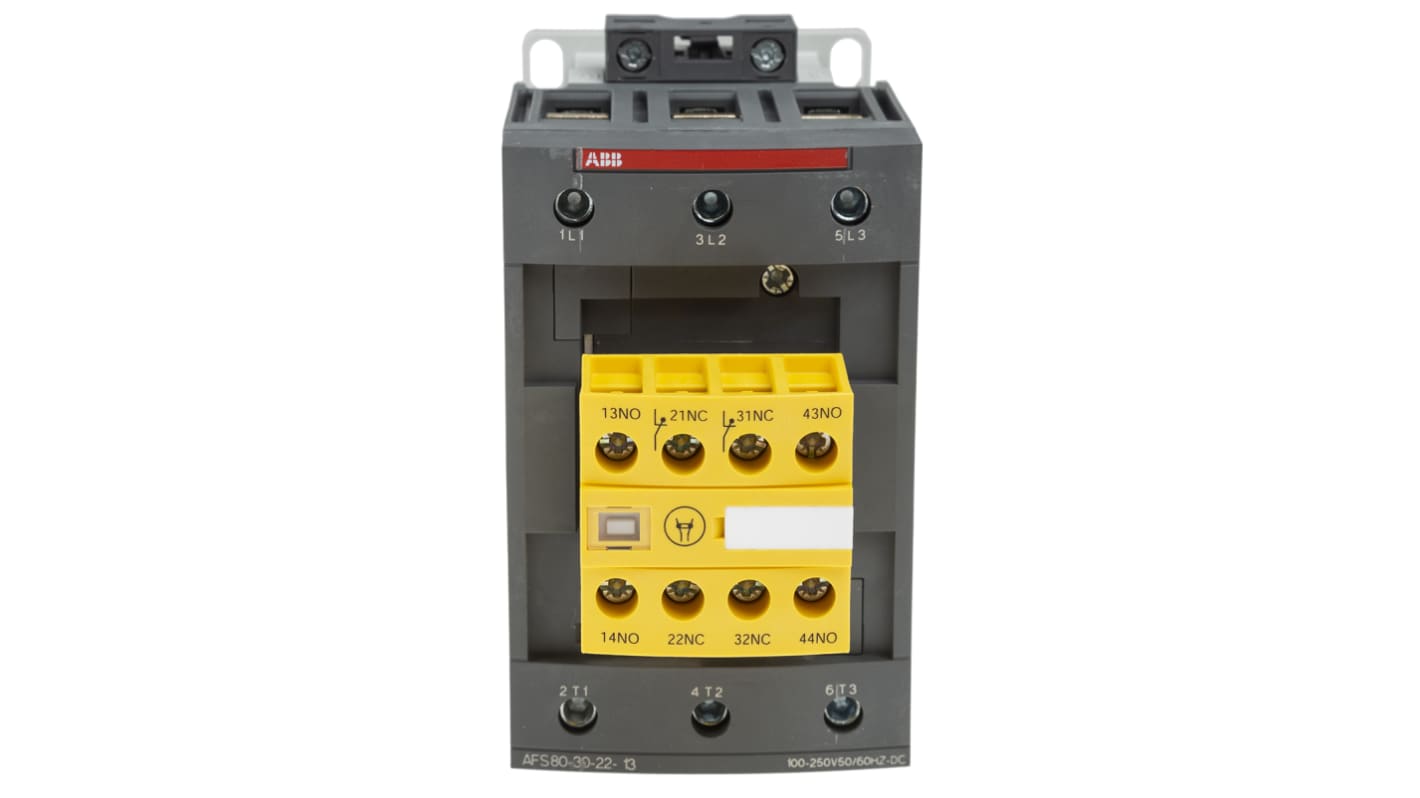

ABB Jokab AFS Contactor, 100V ac/dc, 250 V ac/dc Coil, 3-Pole, 125 A, 45 kW 250V ac/dc, 3 NO, 600V ac

RS Stock No.:: 175-3238
Mfr. Part No.:: 1SBL397082R1322 AFS80-30-22-13
Manufacturer:: ABB Jokab

ABB Jokab AFS Contactor, 100V ac/dc, 250 V ac/dc Coil, 3-Pole, 125 A, 45 kW 250V ac/dc, 3 NO, 600V ac

Subtotal (1 unit)*

€408.47

(exc. VAT)

€502.42

(inc. VAT)

In Stock

1 unit(s) ready to ship from another location
Plus 3 unit(s) shipping from 20 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€408.47

*price indicative

RS Stock No.:: 175-3238
Mfr. Part No.:: 1SBL397082R1322 AFS80-30-22-13
Manufacturer:: ABB Jokab

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB Jokab
	Product Type	Contactor
	Coil Voltage	100V ac/dc, 250V ac/dc
	Number of Poles	3
	Contact Voltage	600V ac
	Contact Current	125A
	Power Rating	45kW
	Series	AFS
	Mount Type	DIN Rail
	Function	Safety
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	2 NO/2 NC
	Number of Auxiliary Contacts	4
	Terminal Type	Screw
	Minimum Operating Temperature	-40°C
	Control Circuit Voltage Uc	250V ac/dc
	Contactor Application	Safety
	Operational Current Ie	80A
	Maximum Operating Temperature	+70°C
	Standards/Approvals	UL, EN, IEC
	Length	149mm
	Depth	149mm
	Width	70mm
	Pole and Throw Configuration	3

	Select all
	Brand ABB Jokab
	Product Type Contactor
	Coil Voltage 100V ac/dc, 250V ac/dc
	Number of Poles 3
	Contact Voltage 600V ac
	Contact Current 125A
	Power Rating 45kW
	Series AFS
	Mount Type DIN Rail
	Function Safety
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 2 NO/2 NC
	Number of Auxiliary Contacts 4
	Terminal Type Screw
	Minimum Operating Temperature -40°C
	Control Circuit Voltage Uc 250V ac/dc
	Contactor Application Safety
	Operational Current Ie 80A
	Maximum Operating Temperature +70°C
	Standards/Approvals UL, EN, IEC
	Length 149mm
	Depth 149mm
	Width 70mm
	Pole and Throw Configuration 3

COO (Country of Origin):: FR

ABB AFS Series Contactor, 100 to 250 V Coil Voltage, 3-Pole Configuration - 1SBL397082R1322

This contactor is designed for machine safety applications, ensuring reliable control and monitoring of electrical circuits. With dimensions of 149mm in length, 70mm in width, and 149mm in depth, it provides efficient solutions for diverse industrial needs. This device features a coil voltage range of 100 to 250 V AC/DC and operates with a maximum contact current rating of 125A, making it suitable for demanding environments.

Features & Benefits

• Equipped with 3 normally open contacts for effective circuit operation

• Offers a broad control voltage range for versatility

• Fitted with mirror and mechanically linked auxiliary contacts for safety

• Designed for DIN rail mounting, simplifying installation

• Built-in surge suppression protects against voltage spikes

• Features a durable yellow housing for easy identification and status visibility

Applications

• Used in industrial automation control panels

• Applied in machine safety monitoring and control systems

• Ideal for circuits requiring robust switching with auxiliary contacts

• Utilised in environments demanding high operational reliability

• Suitable for across electrical and mechanical industries

What are the advantages of using this electrical component in my system?

This device provides enhanced safety with its mechanically linked contacts, ensuring correct operation signals are maintained. Its wide coil voltage range also accommodates various applications, reducing the need for multiple devices.

How does the operational temperature range affect the functionality of this contactor?

With an operating temperature range from -40°C to +70°C, this contactor allows reliable performance in both extreme cold and heat conditions, making it suitable for diverse industrial environments.

What is the significance of auxiliary contacts in this product?

The four auxiliary contacts included enhance the functionality by enabling simultaneous monitoring and controlling of different circuits, which improves the overall efficiency of your control systems.
