Select all	Attribute	Value
	Brand	Eaton
	Coil Voltage	110 V ac
	Number of Poles	3
	Contact Voltage Rating	400 V ac
	Contact Current Rating	25 A
	Series	DILMP
	Range	xStart
	Power Rating	11 kW
	Normal State Configuration	3NO
	Number Of Auxiliary Contacts	1
	Terminal Type	Screw
	Width	45mm
	Length	97mm
	Depth	97mm
	Control Voltage	110/120 V ac
	Pole and Throw Configuration	3P
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+60°C

	Select all
	Brand Eaton
	Coil Voltage 110 V ac
	Number of Poles 3
	Contact Voltage Rating 400 V ac
	Contact Current Rating 25 A
	Series DILMP
	Range xStart
	Power Rating 11 kW
	Normal State Configuration 3NO
	Number Of Auxiliary Contacts 1
	Terminal Type Screw
	Width 45mm
	Length 97mm
	Depth 97mm
	Control Voltage 110/120 V ac
	Pole and Throw Configuration 3P
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +60°C

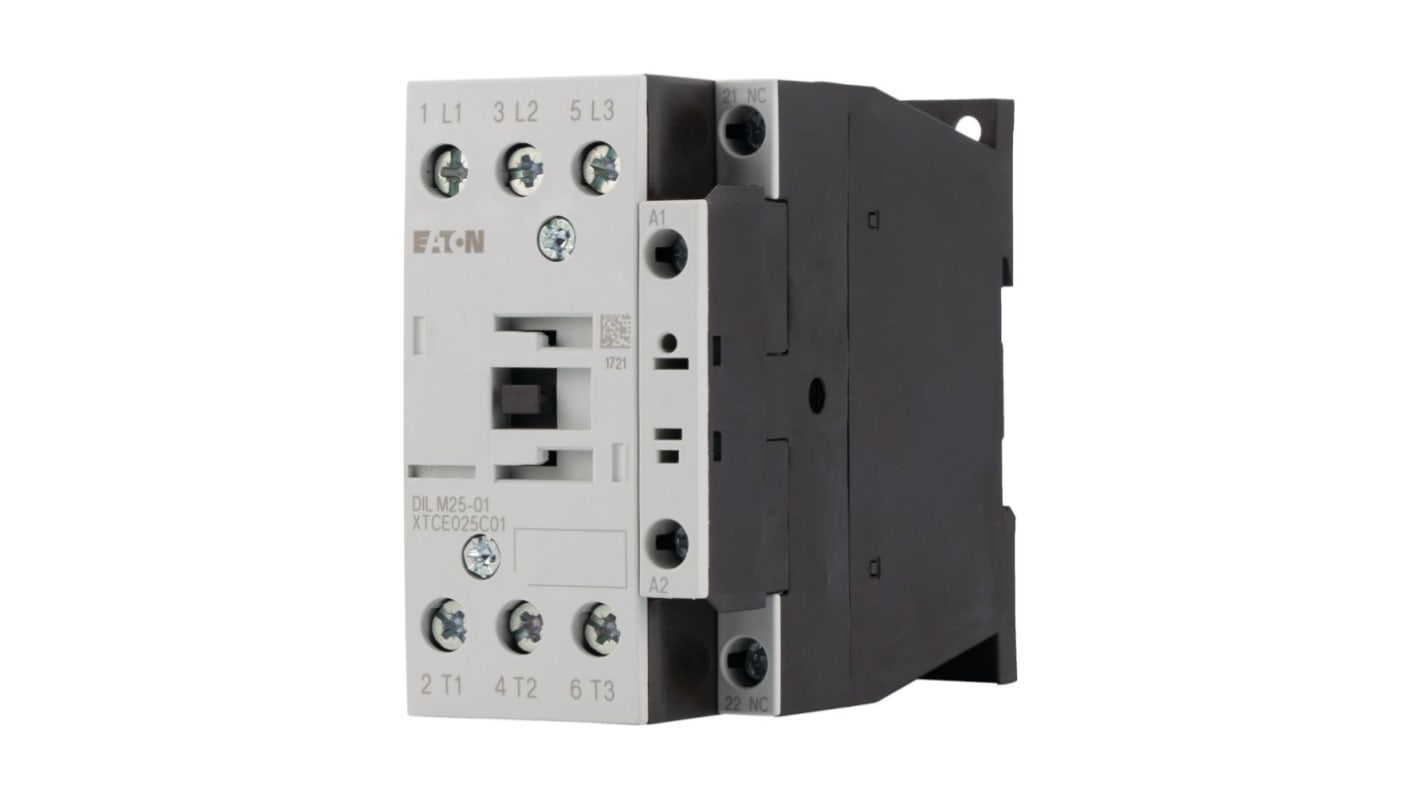

Eaton xStart DILMP Contactor, 110 V ac Coil, 3-Pole, 25 A, 11 kW, 3NO, 400 V ac

Eaton DILMP Series Contactor, 110V AC Coil Voltage, 3NO Normal State Configuration - 277161 DILM25-01(110V50HZ,120V60HZ)

Features & Benefits

Applications

What voltage specifications are required for proper operation?

Can this be used with standard electrical systems?

How does it manage electrical loads?

What temperature extremes can it operate within?
