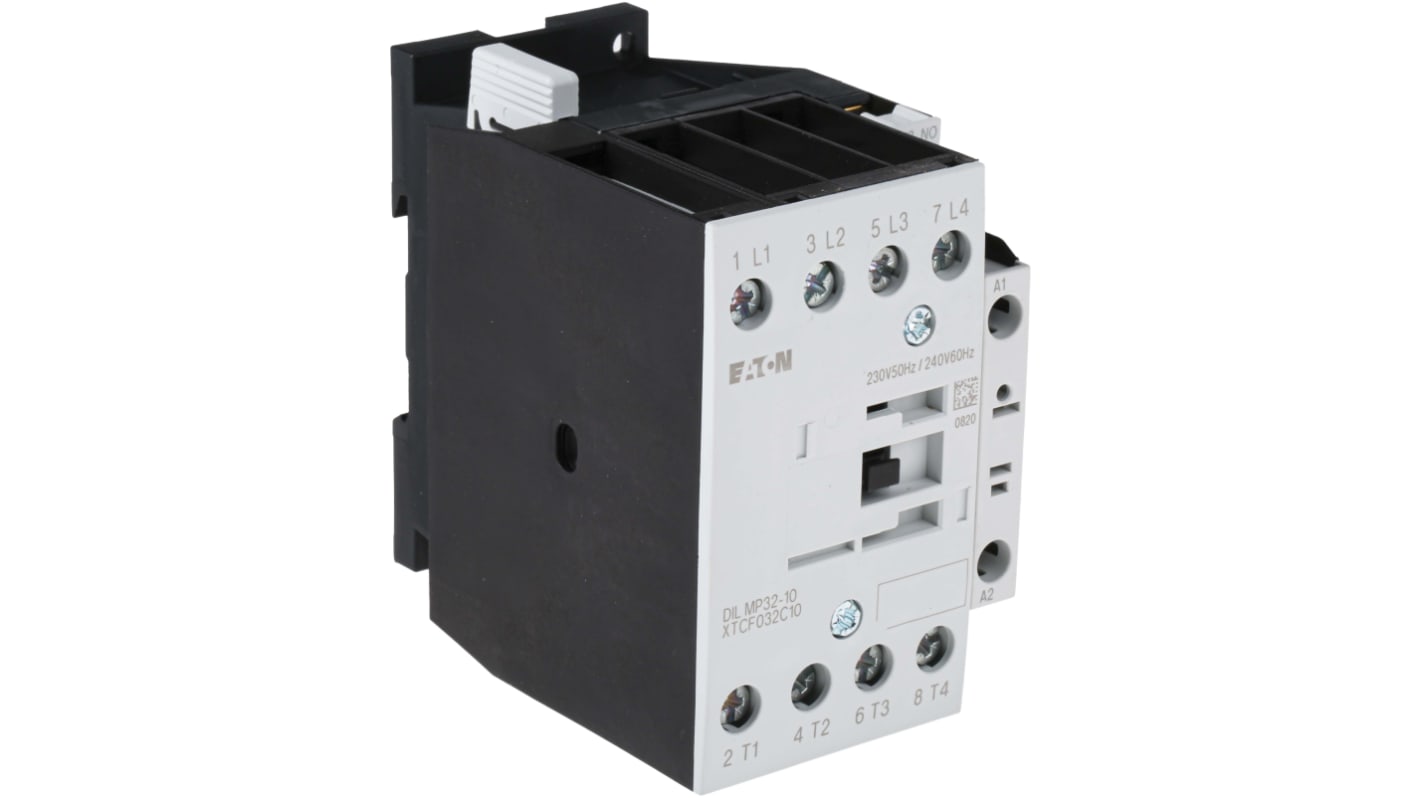

Eaton DILM Contactor, 230V ac Coil, 4-Pole, 32 A, 7.5 kW 230V ac, 4 NO, 400V ac

RS Stock No.:: 743-4964
Mfr. Part No.:: 109797 DILMP32-10(230V50HZ,240V60HZ)
Manufacturer:: Eaton

Eaton DILM Contactor, 230V ac Coil, 4-Pole, 32 A, 7.5 kW 230V ac, 4 NO, 400V ac

Subtotal (1 unit)*

€105.01

(exc. VAT)

€129.16

(inc. VAT)

In Stock

18 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€105.01

*price indicative

RS Stock No.:: 743-4964
Mfr. Part No.:: 109797 DILMP32-10(230V50HZ,240V60HZ)
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Coil Voltage	230V ac
	Product Type	Contactor
	Number of Poles	4
	Contact Voltage	400V ac
	Contact Current	32A
	Series	DILM
	Power Rating	7.5kW
	Function	Motor Control, Resistive Load
	Mount Type	DIN Rail
	Normal State Configuration	4 NO
	Auxiliary Contact Configuration	1 NO
	Number of Auxiliary Contacts	1
	Terminal Type	Screw Clamp
	Minimum Operating Temperature	-25°C
	Operational Current Ie	32A
	Control Circuit Voltage Uc	230V ac
	Contactor Application	Motor Control
	Maximum Operating Temperature	60°C
	Width	58mm
	Length	85mm
	Depth	138mm
	Standards/Approvals	EN 60947
	Pole and Throw Configuration	4

	Select all
	Brand Eaton
	Coil Voltage 230V ac
	Product Type Contactor
	Number of Poles 4
	Contact Voltage 400V ac
	Contact Current 32A
	Series DILM
	Power Rating 7.5kW
	Function Motor Control, Resistive Load
	Mount Type DIN Rail
	Normal State Configuration 4 NO
	Auxiliary Contact Configuration 1 NO
	Number of Auxiliary Contacts 1
	Terminal Type Screw Clamp
	Minimum Operating Temperature -25°C
	Operational Current Ie 32A
	Control Circuit Voltage Uc 230V ac
	Contactor Application Motor Control
	Maximum Operating Temperature 60°C
	Width 58mm
	Length 85mm
	Depth 138mm
	Standards/Approvals EN 60947
	Pole and Throw Configuration 4

Eaton xStart Range Contactor, 32A Contact Current Rating, 4NO - 109797 DILMP32-10(230V50HZ,240V60HZ)

The Eaton DILMP contactor is a 4-pole switching device designed for AC loads with a 32A rating. Measuring 85mm in height, 58mm in width, and 138mm in depth, it features screw terminals for secure connections. Suitable for AC operation at 230V 50Hz or 240V 60Hz, this contactor ensures reliable performance in various electrical control systems.

Features & Benefits

• 4 NO (Normally Open) contacts for circuit flexibility

• 7.5kW operational capacity ideal for motor control

• Screw terminal connectivity for easy installation

• 10 million mechanical operations for longevity

• Compact design for space-efficient installation

Applications

• Controls electric motors

• Used in industrial automation systems

• Fits control panels for various electrical tasks

• Ideal for non-inductive load switching

• Supports connections for auxiliary devices

What is the operating temperature range of the contactor?

It functions within -25 to +60°C.

Is it compatible with various circuit types?

Yes, it supports both AC-1 and AC-3 load categories.

Will it work with flexible control circuit cables?

Yes, it accommodates cables up to 2.5mm² with ferrules.

Is it easy to install?

Yes, it is easy to install with the provision of screw terminals.

Note

Eaton formerly known as Moeller
