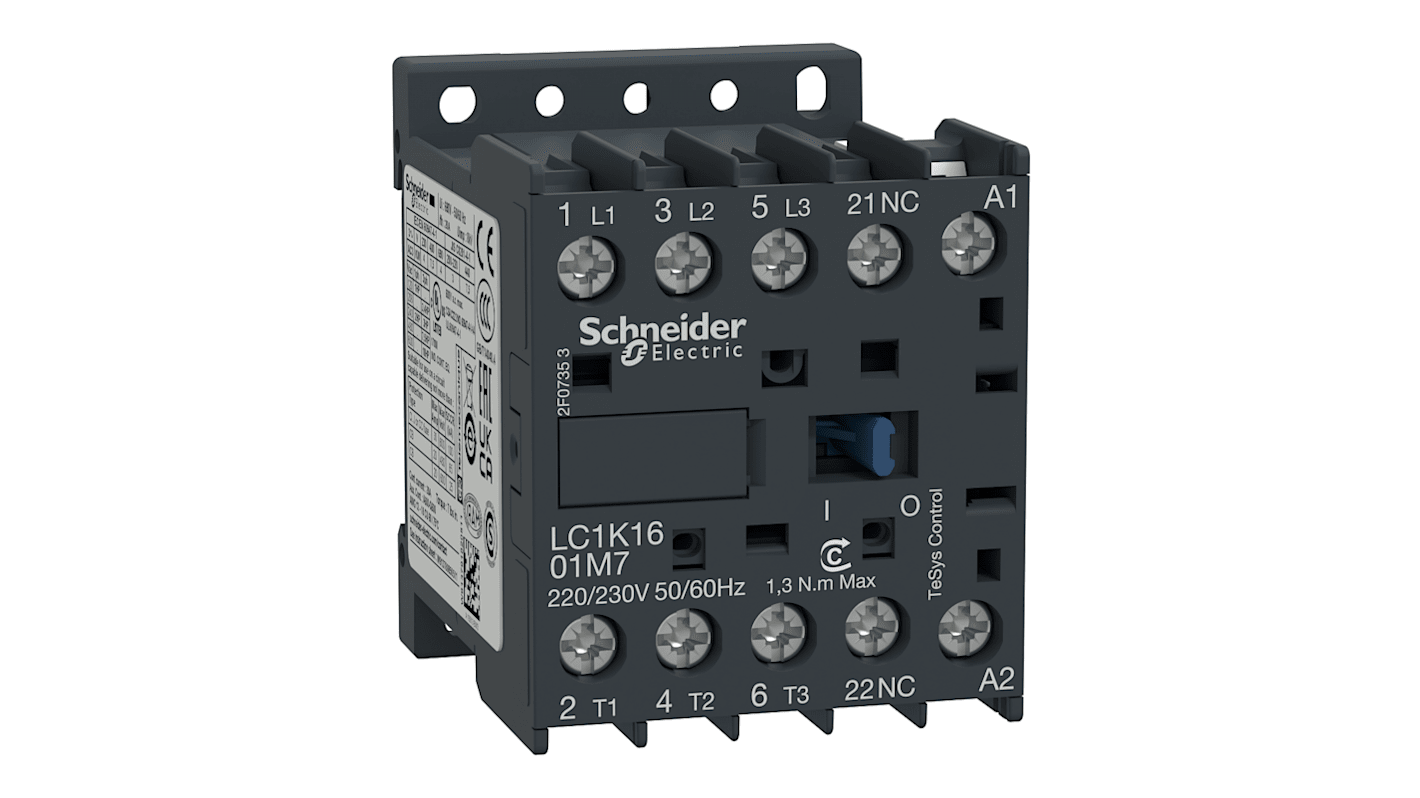

Schneider Electric TeSys K LC1K Contactor, 230 V ac Coil, 3-Pole, 16 A, 7.5 kW, 3NO, 690 V ac

RS Stock No.:: 844-9725
Mfr. Part No.:: LC1K1601P7
Manufacturer:: Schneider Electric

Schneider Electric TeSys K LC1K Contactor, 230 V ac Coil, 3-Pole, 16 A, 7.5 kW, 3NO, 690 V ac

Bulk discount available

Price Each

€55.21

(exc. VAT)

€67.91

(inc. VAT)

1 Within 2 working day(s) (EU stock)*

3 Within 2 working day(s) (EU stock)

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 9	€55.21
10 - 14	€52.39
15 +	€50.68

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 844-9725
Mfr. Part No.:: LC1K1601P7
Manufacturer:: Schneider Electric

Schneider Electric TeSys K LC1K Contactors.

Schneider Electric TeSys K provide you with a choice of reversing and non-reversing contactors. TeSys K contactors, unlike relays, are specifically designed to connect to high current load devices. Used in larger-scale applications, Schneider Electric contactors can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts.

The contractors feature varied switching voltages, many of the range feature screw clamp or a solder termination. TeSys K contactors offer you the best performance and compactness ratio plus also ensuring easy integration in all applications.

Highly reliable

Excellent quality

Easily installed accessories

Contactor Features.

Common options available for all ratings: 6, 9, 12 A

Control circuits available: AC, DC, low-consumption DC, silent

Applications: 2.2 kW, 4.5 kW, 5.5 kW in AC3 and AC4

Connectors: screw clamp, faston connectors, spring terminals, pins for printed circuit boards

Control Relay Features.

4 pole relays with 10A thermally rated contacts suitable for AC or DC control voltages. Low consumption coil versions with built in suppression and suitable to be used with programmable controllers are also available.

Contacts with 10A thermal rating, suitable for use down to 17V 5mA

Four-pole for operation with AC or DC control circuits

Variety of auxiliary contacts, and timer modules

Clamp terminals as standard with spring terminal, printed circuit board connection and fast-on connector types available

Applications.

Industry, infrastructure, building.

Simple control systems.

Noise sensitive areas, disturbed mains supply, silent contactor.

Compatible with programmable controller outputs, low consumption contactor.

Switching contactor or relay coils.

Powering control and signalling equipment.

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

Auxiliary contact blocks with serrated wiping action

Front mount dust tight auxiliary contact blocks

Pneumatic time delay blocks

Transient voltage surge suppressors

Interface modules and electronic timers

Mechanical latching blocks

LC1K1601P7 TeSys K LC1K Contactor.

Motor control applications.

AC-3Category.

[Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz.

[Ie] rated operational current 16 A at <= 440 V AC AC-3 for power circuit.

Control circuit 230 V AC 50/60 Hz.

1 NC Auxiliary contact.

Category III.

Rated breaking capacity, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947.

Flame resistant V1 conforming to UL 94, Requirement 2 conforming to NF F 16-101, Requirement 2 conforming to NF F 16-102.

Safety level B10d = 1369863 cycles contactor with nominal load conforming- to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming- to EN/ISO 13849-1.

Rail and Plate mounting.

Screw clamp terminals.

Protection to IP2x conforming to VDE 0106

Approvals

UL, CSA.

Standards

BS 5424, IEC 60947, NF C 63-110, VDE 0660.

Attribute	Value
Coil Voltage	230 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	16 A
Series	LC1K
Power Rating	7.5 kW
Range	TeSys K
Normal State Configuration	3NO
Auxiliary Contact Configuration	1NC
Number Of Auxiliary Contacts	1
Terminal Type	Cable
Width	45mm
Length	58mm
Depth	57mm
Better World Verification	Green Premium
Better World Product	Yes
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+50°C
