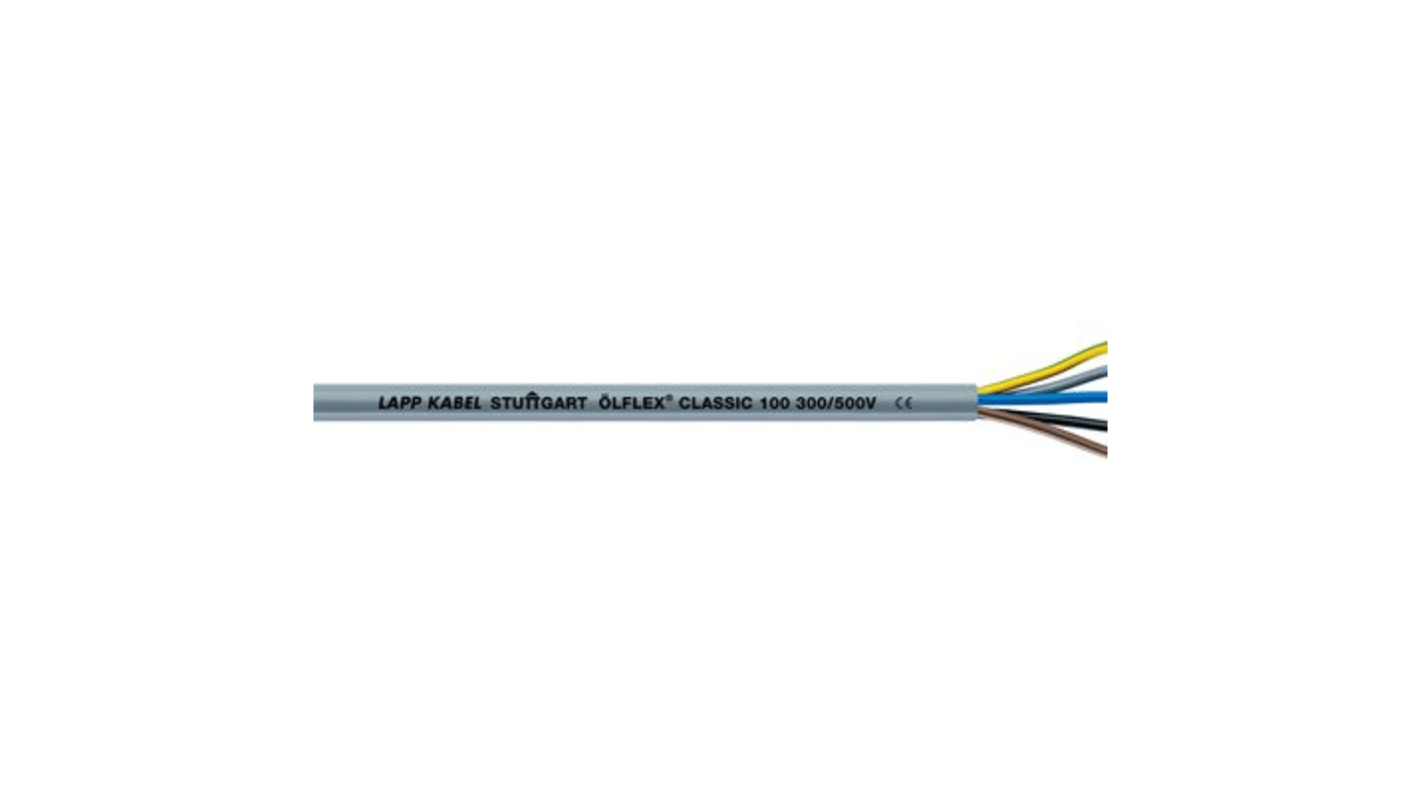

Lapp ÖLFLEX CLASSIC 100 Control Cable, 12 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 727-1401
- Distrelec Article No.:
- 300-49-260
- Mfr. Part No.:
- 0010030
- Manufacturer:
- Lapp
Subtotal (1 reel of 50 metres)*
€208.24
(exc. VAT)
€256.14
(inc. VAT)
In Stock
- 9 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 21 August 2025
- Plus 4 unit(s) shipping from 28 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €208.24 | €4.165 |
*price indicative
- RS Stock No.:
- 727-1401
- Distrelec Article No.:
- 300-49-260
- Mfr. Part No.:
- 0010030
- Manufacturer:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 100 | |
| Number of Cores | 12 | |
| Cross Sectional Area | 0.75 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Control Cable Type | YY | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Outer Diameter | 9.9mm | |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 15 x D | |
| Length | 50m | |
| Voltage Rating | 300/500 V | |
| Current Rating | 12 A | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +70°C | |
| Conductor Resistance | 26 Ω/km | |
| Oil Resistant | Yes | |
| Minimum Operating Temperature | -40°C | |
| Filler Material | Non-Wicking Filler | |
| Earth Cable | Yes | |
| Insulation Material | PVC | |
| Core Strands | 24/0.2 mm | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 100 | ||
Number of Cores 12 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Control Cable Type YY | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Outer Diameter 9.9mm | ||
Minimum Bend Radius Fixed - 4 x D Occasional flexing - 15 x D | ||
Length 50m | ||
Voltage Rating 300/500 V | ||
Current Rating 12 A | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Conductor Resistance 26 Ω/km | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
Filler Material Non-Wicking Filler | ||
Earth Cable Yes | ||
Insulation Material PVC | ||
Core Strands 24/0.2 mm | ||
