Select all	Attribute	Value
	Brand	Nexperia
	Package Type	TSSOP
	Logic Function	Shift Register
	Number of Stages	8
	Logic Family	HC
	Mounting Type	Surface Mount
	Operation Mode	Serial to Serial, Parallel
	Number of Elements	1
	Pin Count	16
	Minimum Operating Supply Voltage	2 V
	Maximum Operating Supply Voltage	6 V
	Dimensions	5.1 x 4.5 x 0.95mm
	Maximum Operating Temperature	125 °C
	Direction Type	Uni-Directional
	Reset Type	Asynchronous
	Minimum Operating Temperature	-40 °C
	Triggering Type	Positive Edge

	Select all
	Brand Nexperia
	Package Type TSSOP
	Logic Function Shift Register
	Number of Stages 8
	Logic Family HC
	Mounting Type Surface Mount
	Operation Mode Serial to Serial, Parallel
	Number of Elements 1
	Pin Count 16
	Minimum Operating Supply Voltage 2 V
	Maximum Operating Supply Voltage 6 V
	Dimensions 5.1 x 4.5 x 0.95mm
	Maximum Operating Temperature 125 °C
	Direction Type Uni-Directional
	Reset Type Asynchronous
	Minimum Operating Temperature -40 °C
	Triggering Type Positive Edge

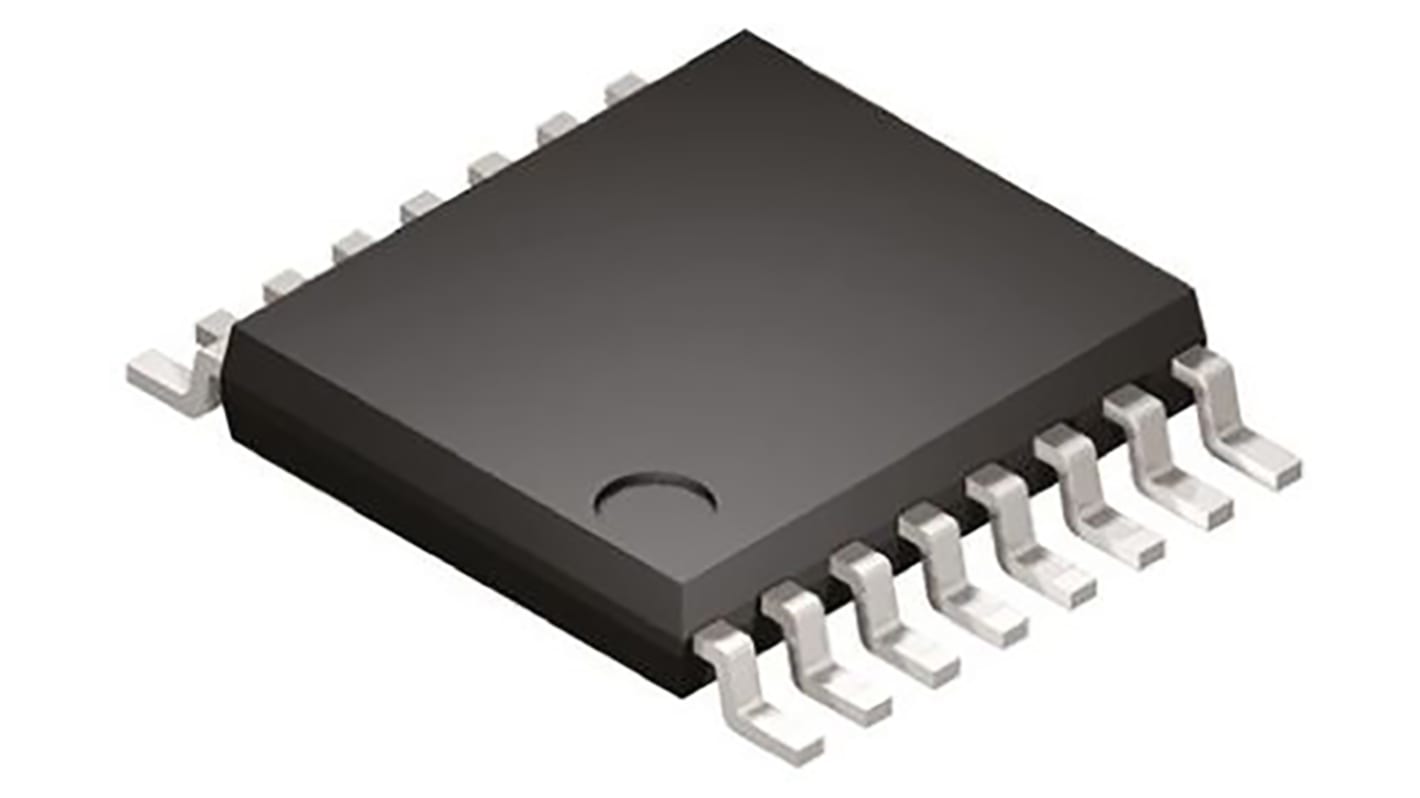

Nexperia 74HC595PW,112 8-stage Surface Mount Shift Register HC, 16-Pin TSSOP

74HC Family Counters & Shift Registers, Nexperia
