Select all	Attribute	Value
	Brand	Texas Instruments
	Package Type	SOIC
	Logic Function	Counter, Divider
	Number of Stages	4
	Logic Family	LV
	Mounting Type	Surface Mount
	Counter Type	Binary
	Operation Mode	Up Counter
	Number of Elements	2
	Pin Count	14
	Minimum Operating Supply Voltage	2 V
	Maximum Operating Supply Voltage	5.5 V
	Dimensions	8.65 x 3.91 x 1.58mm
	Triggering Type	Negative Edge
	Minimum Operating Temperature	-40 °C
	Direction Type	Uni-Directional
	Reset Type	Asynchronous
	Maximum Operating Temperature	85 °C

	Select all
	Brand Texas Instruments
	Package Type SOIC
	Logic Function Counter, Divider
	Number of Stages 4
	Logic Family LV
	Mounting Type Surface Mount
	Counter Type Binary
	Operation Mode Up Counter
	Number of Elements 2
	Pin Count 14
	Minimum Operating Supply Voltage 2 V
	Maximum Operating Supply Voltage 5.5 V
	Dimensions 8.65 x 3.91 x 1.58mm
	Triggering Type Negative Edge
	Minimum Operating Temperature -40 °C
	Direction Type Uni-Directional
	Reset Type Asynchronous
	Maximum Operating Temperature 85 °C

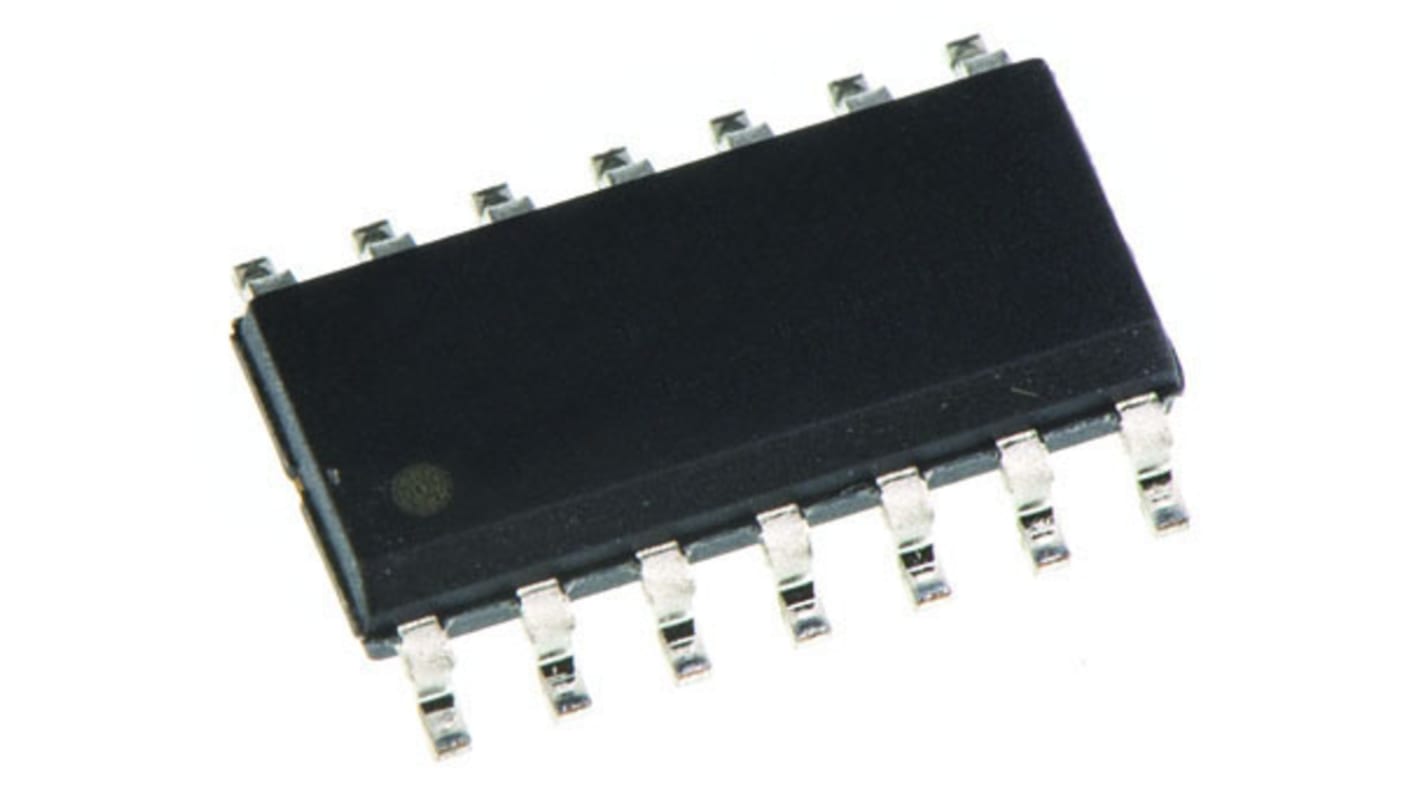

Texas Instruments SN74LV393AD 4-stage Surface Mount Binary Counter LV, 14-Pin SOIC

74LV Family, Texas Instruments
