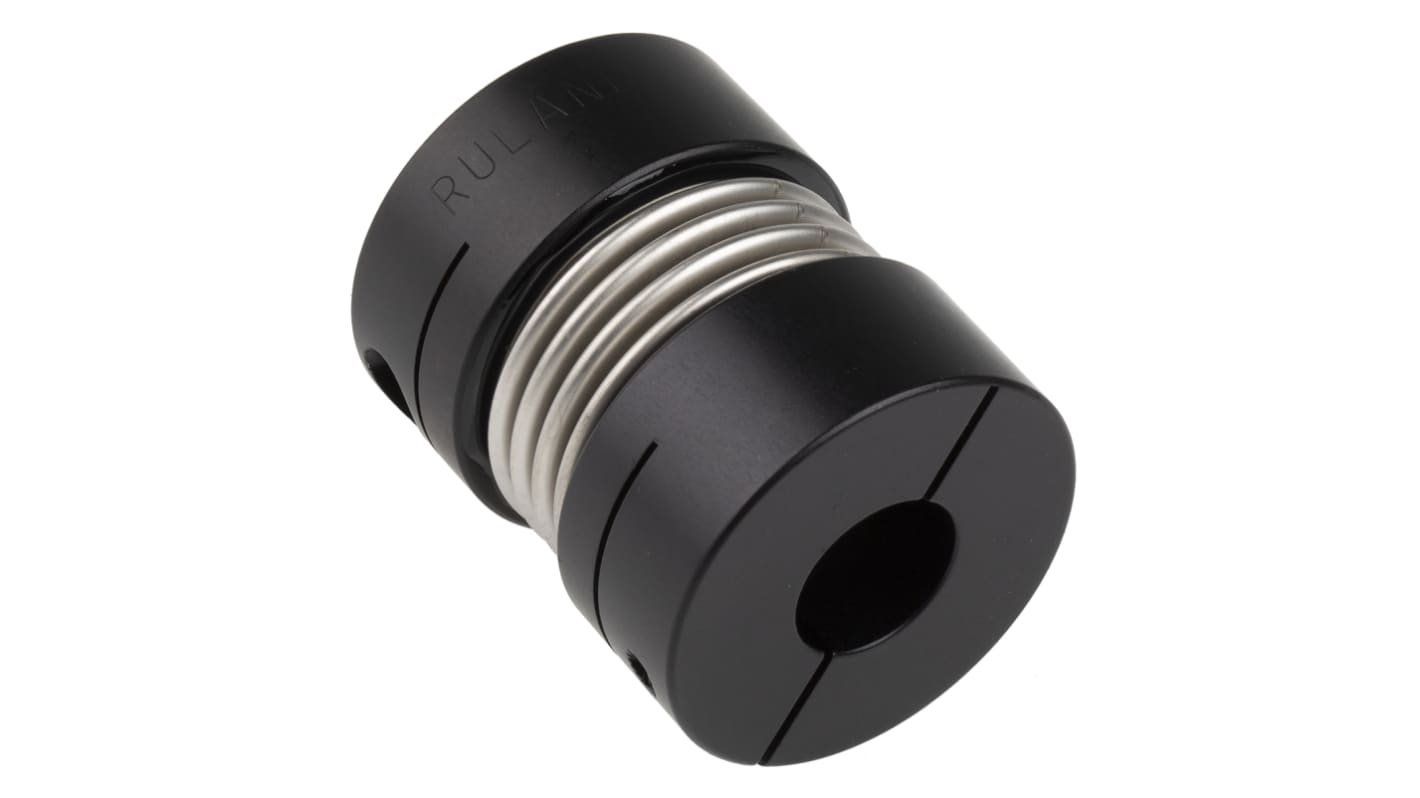

Ruland Bellows Coupling, 41.3mm Outside Diameter, 20mm Bore, 50.8mm Length Coupler

The Ruland bellows coupling has a 41mm OD, 50.8mm length and 20mm x 16mm bore with clamp fastening. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. It is comprised of two anodized aluminium hubs and a stainless steel bellows. This bellow is able to flex while remaining rigid under torsional loads. Its balanced design reduces vibrations at high speed.

• Zero backlash
• Black-oiled alloy steel fasteners for strength and corrosion resistance
• Precision bellows coupling with excellent kinematic properties
• Maximum speed of 10,000rpm
• Hardware is metric and tested beyond DIN standard for high torque capabilities
• Set screw material is alloy steel with black oxide finish
• Service temperature range from -40°C and 93°C
• Low inertia coupling
• Lightweight

• Stepper and servo drives
• Encoders
• General purpose light-duty power transmission

• REACH certification
• Conflict Minerals compliant
• DIN 912 12.9
• ISO9001:2015
