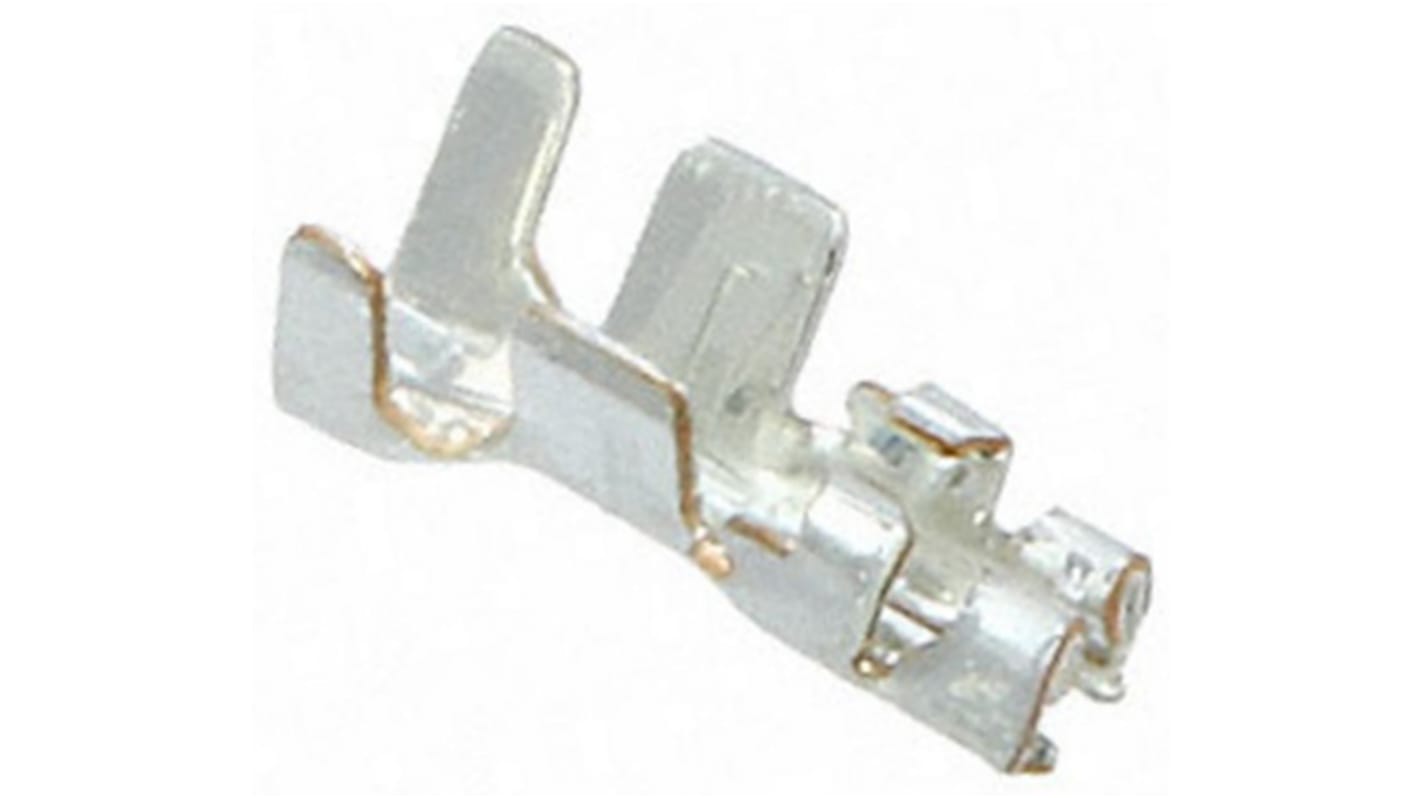

Hirose DF57 Series Female Crimp Terminal, 34AWG Min, 32AWG Max
- RS Stock No.:
- 136-2507
- Mfr. Part No.:
- DF57-3234SCF
- Manufacturer:
- Hirose
Bulk discount available
Subtotal (1 pack of 100 units)*
€2.40
(exc. VAT)
€3.00
(inc. VAT)
In Stock
- 800 unit(s) ready to ship from another location
- Plus 59,700 unit(s) shipping from 04 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 - 400 | €0.024 | €2.40 |
500 - 900 | €0.023 | €2.30 |
1000 - 1900 | €0.02 | €2.00 |
2000 + | €0.016 | €1.60 |
*price indicative
- RS Stock No.:
- 136-2507
- Mfr. Part No.:
- DF57-3234SCF
- Manufacturer:
- Hirose
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirose | |
Gender | Female | |
For Use With | DF57 and DF57H Connector Housings | |
Series | DF57 | |
Maximum Wire Size mm² | 0.03mm² | |
Termination Method | Crimp | |
Contact Plating | Tin | |
Minimum Wire Size AWG | 34AWG | |
Contact Material | Phosphor Bronze | |
Maximum Wire Size AWG | 32AWG | |
Maximum Contact Resistance | 10mΩ | |
Minimum Operating Temperature | -30°C | |
Maximum Current | 1A | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand Hirose | ||
Gender Female | ||
For Use With DF57 and DF57H Connector Housings | ||
Series DF57 | ||
Maximum Wire Size mm² 0.03mm² | ||
Termination Method Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 34AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 32AWG | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -30°C | ||
Maximum Current 1A | ||
Maximum Operating Temperature +85°C | ||
