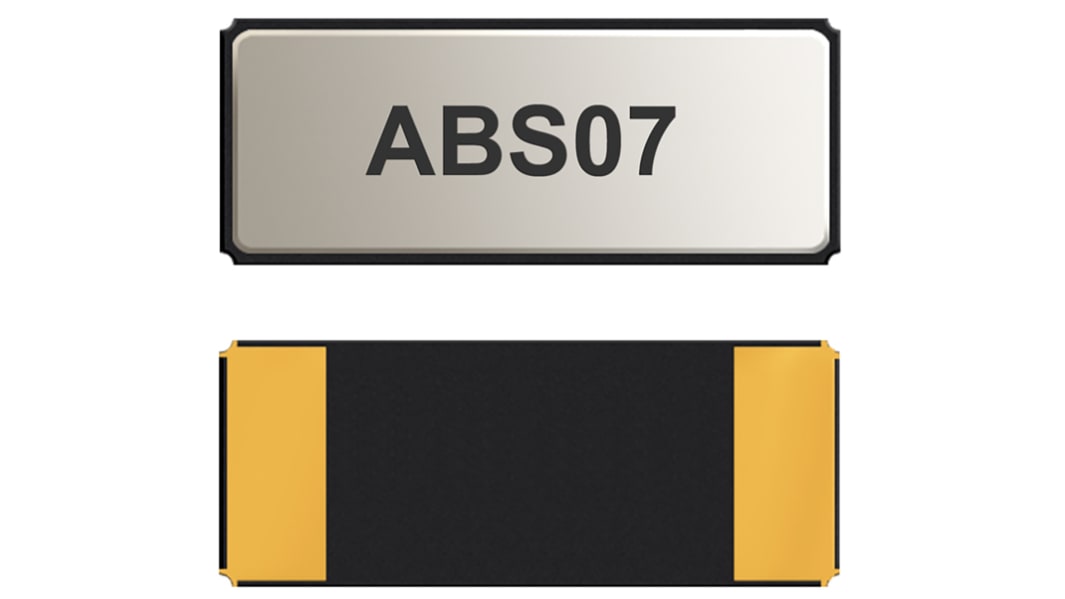

Abracon 32.768 kHz Crystal Unit ±20 ppm Surface Mount 2-Pin 0.9 mm 3.2 mm 1.5 mm
- RS Stock No.:
- 171-2839
- Mfr. Part No.:
- ABS07-32.768KHZ-T
- Manufacturer:
- Abracon
Bulk discount available
Subtotal (1 pack of 10 units)*
€4.50
(exc. VAT)
€5.50
(inc. VAT)
Temporarily out of stock
- 4,610 unit(s) shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | €0.45 | €4.50 |
| 50 - 90 | €0.396 | €3.96 |
| 100 - 490 | €0.36 | €3.60 |
| 500 - 1490 | €0.298 | €2.98 |
| 1500 + | €0.292 | €2.92 |
*price indicative
- RS Stock No.:
- 171-2839
- Mfr. Part No.:
- ABS07-32.768KHZ-T
- Manufacturer:
- Abracon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Crystal Unit | |
| Standard Frequency | 32.768kHz | |
| Mount Type | Surface | |
| Load Capacitance | 12.5pF | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Pin Count | 2 | |
| Length | 3.2mm | |
| Width | 1.5 mm | |
| Height | 0.9mm | |
| Frequency Tolerance | ±20 ppm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series Resistance | 70kΩ | |
| Standards/Approvals | REACH, RoHS | |
| Series | ABS07 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Crystal Unit | ||
Standard Frequency 32.768kHz | ||
Mount Type Surface | ||
Load Capacitance 12.5pF | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Pin Count 2 | ||
Length 3.2mm | ||
Width 1.5 mm | ||
Height 0.9mm | ||
Frequency Tolerance ±20 ppm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series Resistance 70kΩ | ||
Standards/Approvals REACH, RoHS | ||
Series ABS07 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Plastic package with embedded heat resistant crystal in cylinder package
Extended temperature -40°C to +85°C for industrial applications
Low frequency
Commercial & Industrial applications
Wireless communications
PDA and Palm Pilots
