MPN

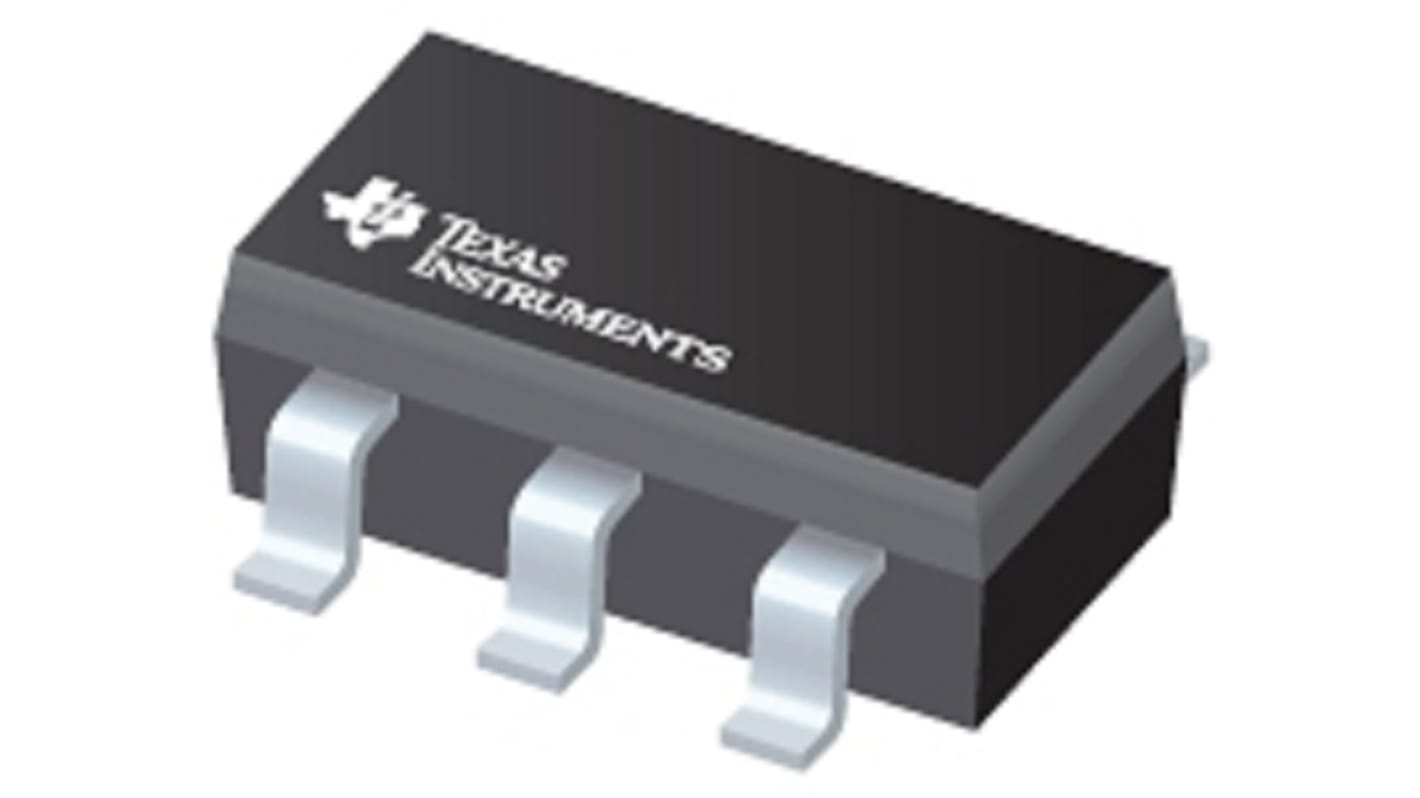

Texas Instruments Voltage Current Shunt Monitor Single 6-Pin SC-70

RS Stock No.:: 252-8505
Mfr. Part No.:: INA213BIDCKT
Manufacturer:: Texas Instruments

Texas Instruments Voltage Current Shunt Monitor Single 6-Pin SC-70

Bulk discount available

Subtotal (1 reel of 250 units)*

€203.00

(exc. VAT)

€249.75

(inc. VAT)

In Stock

Plus 750 unit(s) shipping from 22 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
250 - 250	€0.812	€203.00
500 - 1000	€0.791	€197.75
1250 +	€0.771	€192.75

*price indicative

RS Stock No.:: 252-8505
Mfr. Part No.:: INA213BIDCKT
Manufacturer:: Texas Instruments

Specifications

Legislation and Compliance

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Texas Instruments
	Power Supply Type	Single
	Product Type	Current Shunt Monitor
	Maximum Supply Voltage	26V
	Minimum Supply Voltage	26V
	CMRR - Common Mode Rejection Ratio	105dB
	Number of Channels	1
	Supply Current	100μA
	Mount Type	Surface
	Package Type	SC-70
	Pin Count	6
	GBP - Gain Bandwidth Product	80kHz
	Minimum Operating Temperature	-40°C
	Height	1mm
	Length	2mm
	Width	1.6 mm
	Standards/Approvals	RoHS
	Series	INA21x
	Output Type	Voltage
	Maximum Operating Temperature	125°C
	Automotive Standard	No

	Select all
	Brand Texas Instruments
	Power Supply Type Single
	Product Type Current Shunt Monitor
	Maximum Supply Voltage 26V
	Minimum Supply Voltage 26V
	CMRR - Common Mode Rejection Ratio 105dB
	Number of Channels 1
	Supply Current 100μA
	Mount Type Surface
	Package Type SC-70
	Pin Count 6
	GBP - Gain Bandwidth Product 80kHz
	Minimum Operating Temperature -40°C
	Height 1mm
	Length 2mm
	Width 1.6 mm
	Standards/Approvals RoHS
	Series INA21x
	Output Type Voltage
	Maximum Operating Temperature 125°C
	Automotive Standard No

Texas Instruments Voltage Current Shunt Monitor Single 6-Pin SC-70
