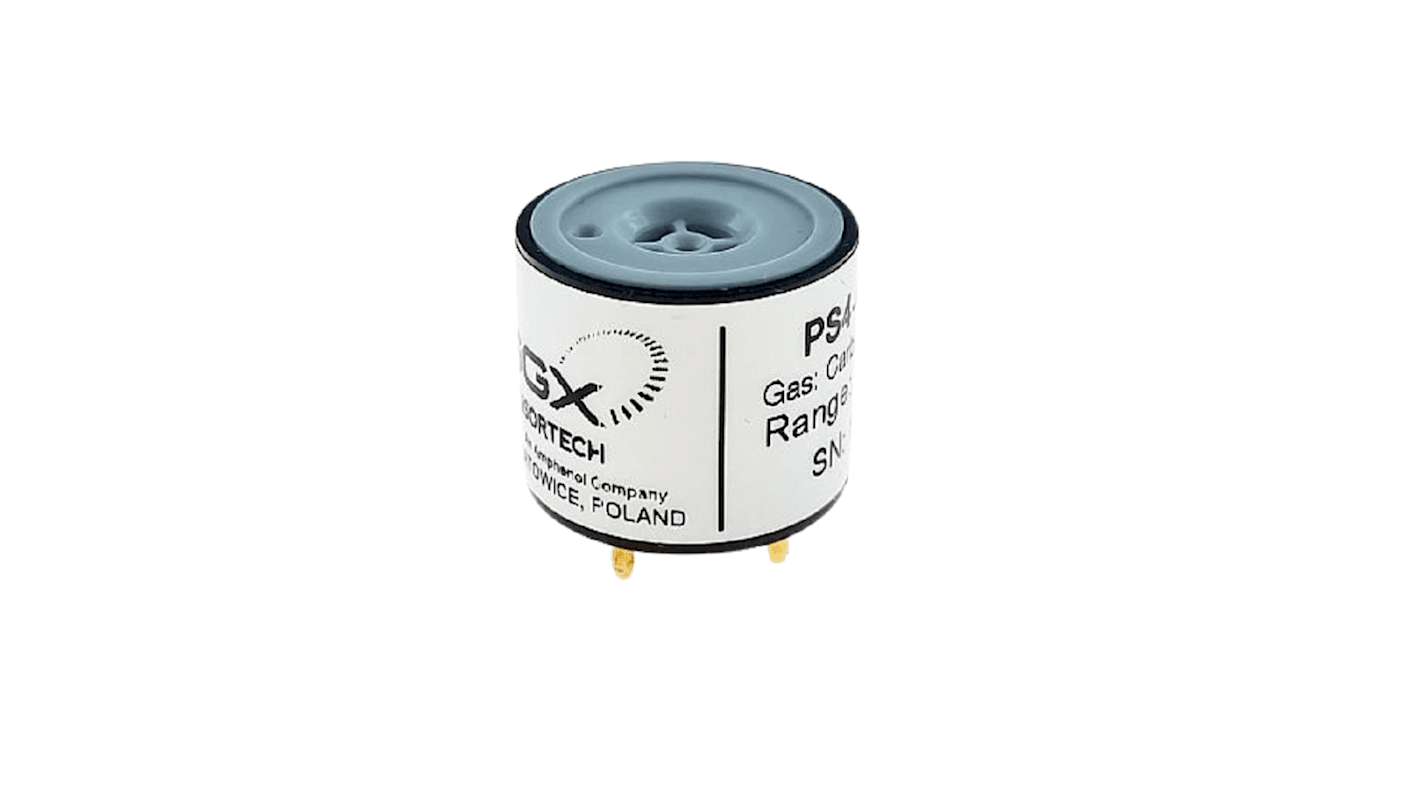

SGX Sensors PS4-HCHO-5, Formaldehyde Gas Sensor IC for Air Quality Monitors

The SGX Sensors series of PS1 and PS4 Electrochemical gas sensors are using a revolutionary ’Solid Polymer Electrolyte’ technology that is based on the principle of catalytic reaction. The target gas to be measured generates a very small current, proportional to the gas concentration. Our technology offers a stable, high quality and cost-effective manufacturing process. The SGX solid polymer electrolyte gas sensors are available in a very small size, are highly sensitive, do not use power and have very low cross sensitivity from other gases.

Sensitivity 35 ± 20 n A / ppm
Measurement range 0 – 5 ppm
Zero current ± 2 nA
Maximum overload 100 ppm
Response time T50 < 20s, T90 < 120s
Repeatability 1% Lower
Lower Detectable Limit (LDL) ≤ 0.05 ppm
Linear range 5 ppm
