Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	HCT
	Logic Function	D Type
	Input Type	Single Ended
	Output Signal Type	Differential
	Triggering Type	Positive Edge
	Polarity	Inverting, Non-Inverting
	Mounting Type	Through Hole
	Package Type	PDIP
	Pin Count	16
	Set/Reset	Master Reset
	Number of Elements per Chip	4
	Maximum Propagation Delay Time @ Maximum CL	33 ns @ 4.5 V
	Dimensions	19.3 x 6.35 x 4.57mm
	Maximum Operating Supply Voltage	5.5 V
	Minimum Operating Temperature	-55 °C
	Width	6.35mm
	Height	4.57mm
	Minimum Operating Supply Voltage	4.5 V
	Length	19.3mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+125 °C

	Select all
	Brand Texas Instruments
	Logic Family HCT
	Logic Function D Type
	Input Type Single Ended
	Output Signal Type Differential
	Triggering Type Positive Edge
	Polarity Inverting, Non-Inverting
	Mounting Type Through Hole
	Package Type PDIP
	Pin Count 16
	Set/Reset Master Reset
	Number of Elements per Chip 4
	Maximum Propagation Delay Time @ Maximum CL 33 ns @ 4.5 V
	Dimensions 19.3 x 6.35 x 4.57mm
	Maximum Operating Supply Voltage 5.5 V
	Minimum Operating Temperature -55 °C
	Width 6.35mm
	Height 4.57mm
	Minimum Operating Supply Voltage 4.5 V
	Length 19.3mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +125 °C

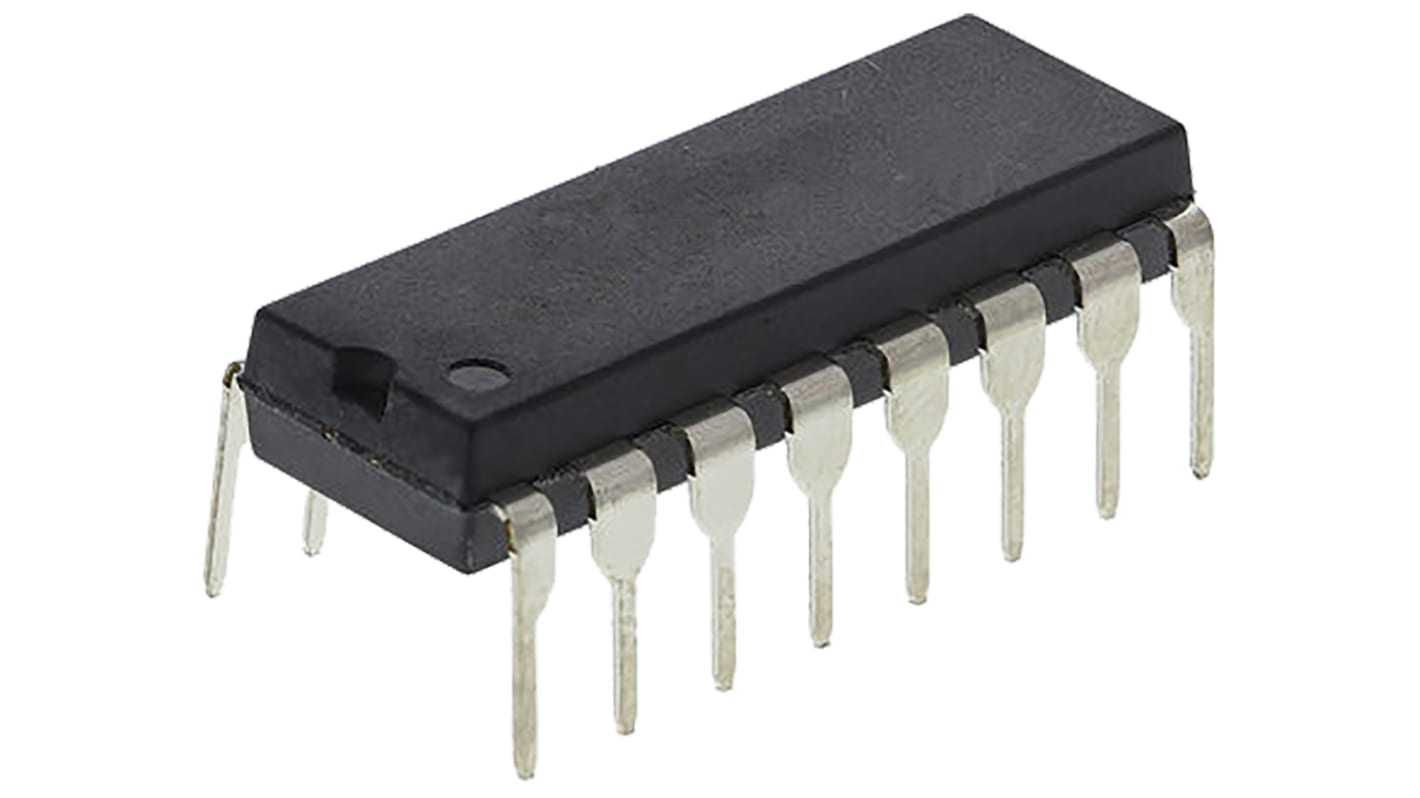

Texas Instruments CD74HCT175E Quad D Type Flip Flop IC, 16-Pin PDIP

74HCT Family Flip-Flops & Latches, Texas Instruments
