Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	AC
	Logic Function	JK Type
	Input Type	Single Ended
	Output Signal Type	Differential
	Triggering Type	Negative Edge
	Polarity	Inverting, Non-Inverting
	Mounting Type	Through Hole
	Package Type	PDIP
	Pin Count	16
	Set/Reset	Yes
	Number of Elements per Chip	2
	Maximum Propagation Delay Time @ Maximum CL	129 ns @ 1.5 V
	Maximum Operating Supply Voltage	5.5 V
	Dimensions	19.3 x 6.35 x 4.57mm
	Minimum Operating Supply Voltage	1.5 V
	Minimum Operating Temperature	-55 °C
	Width	6.35mm
	Length	19.3mm
	Maximum Operating Temperature	+125 °C
	Propagation Delay Test Condition	50pF
	Height	4.57mm

	Select all
	Brand Texas Instruments
	Logic Family AC
	Logic Function JK Type
	Input Type Single Ended
	Output Signal Type Differential
	Triggering Type Negative Edge
	Polarity Inverting, Non-Inverting
	Mounting Type Through Hole
	Package Type PDIP
	Pin Count 16
	Set/Reset Yes
	Number of Elements per Chip 2
	Maximum Propagation Delay Time @ Maximum CL 129 ns @ 1.5 V
	Maximum Operating Supply Voltage 5.5 V
	Dimensions 19.3 x 6.35 x 4.57mm
	Minimum Operating Supply Voltage 1.5 V
	Minimum Operating Temperature -55 °C
	Width 6.35mm
	Length 19.3mm
	Maximum Operating Temperature +125 °C
	Propagation Delay Test Condition 50pF
	Height 4.57mm

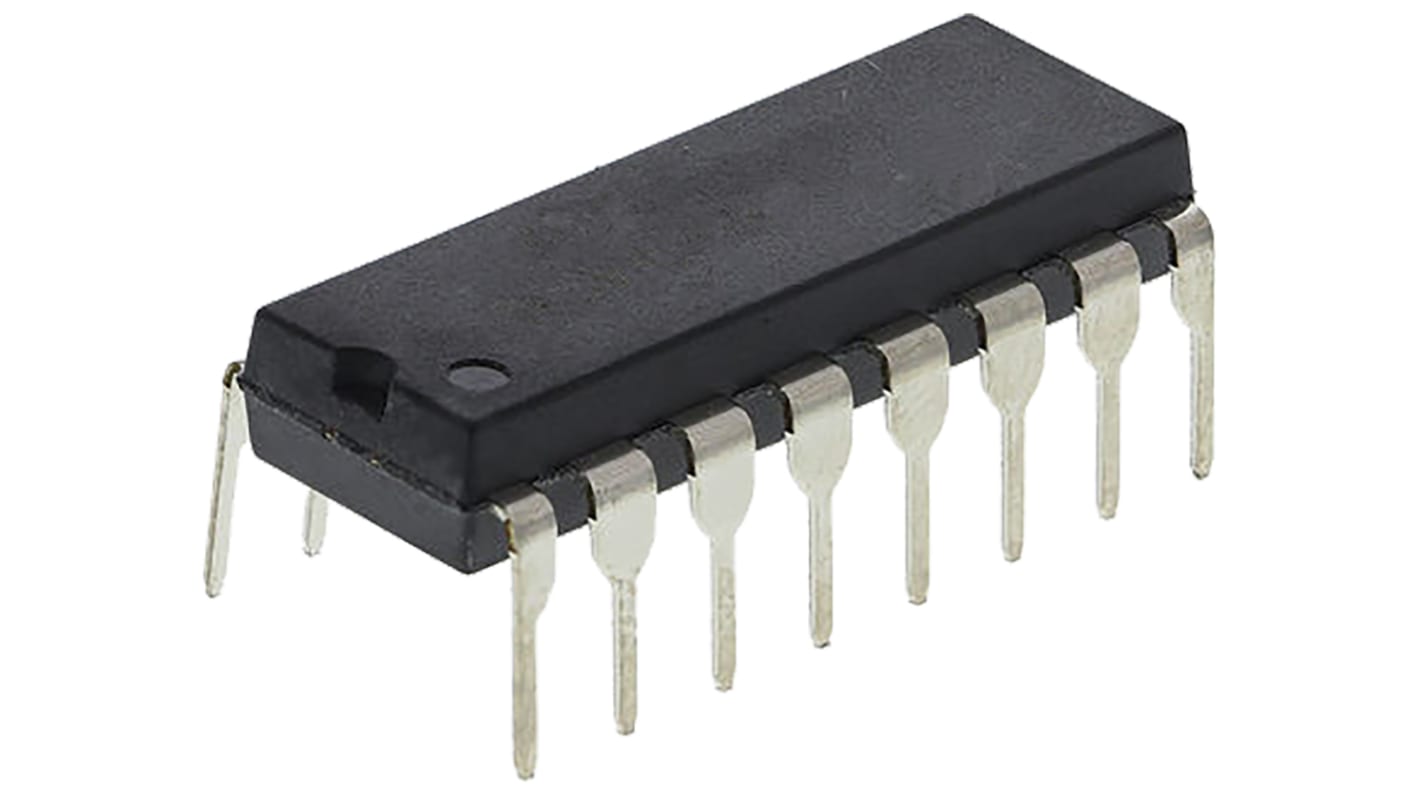

Texas Instruments CD74AC112E Dual JK Type Flip Flop IC, 16-Pin PDIP

74AC Family, Texas Instruments
