Molex 93601 Range Heavy Duty Power Connector Hood 1, 10A
- RS Stock No.:
- 250-2037
- Mfr. Part No.:
- 936011176
- Manufacturer:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
€12.74
(exc. VAT)
€15.67
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | €12.74 |
| 10 - 99 | €12.34 |
| 100 - 249 | €11.83 |
| 250 - 499 | €11.32 |
| 500 + | €10.91 |
*price indicative
- RS Stock No.:
- 250-2037
- Mfr. Part No.:
- 936011176
- Manufacturer:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Sub Type | STD | |
| Product Type | Heavy Duty Power Connector Hood | |
| Series | 93601 | |
| Manufacturer Size Code | 10A | |
| Body Material | Die Cast Aluminium | |
| IP Rating | IP66 | |
| Standards/Approvals | ANSI/UL 50, EN 61984, CSA C22.2 No.94-1-2, ANSI/UL 50 E | |
| Cable Entry Angle | Top | |
| For Use With | S-A and S-D Inserts, Size 10A | |
| Number of Levers | 1 | |
| Thread Size | Pg16 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Sub Type STD | ||
Product Type Heavy Duty Power Connector Hood | ||
Series 93601 | ||
Manufacturer Size Code 10A | ||
Body Material Die Cast Aluminium | ||
IP Rating IP66 | ||
Standards/Approvals ANSI/UL 50, EN 61984, CSA C22.2 No.94-1-2, ANSI/UL 50 E | ||
Cable Entry Angle Top | ||
For Use With S-A and S-D Inserts, Size 10A | ||
Number of Levers 1 | ||
Thread Size Pg16 | ||
- COO (Country of Origin):
- CN

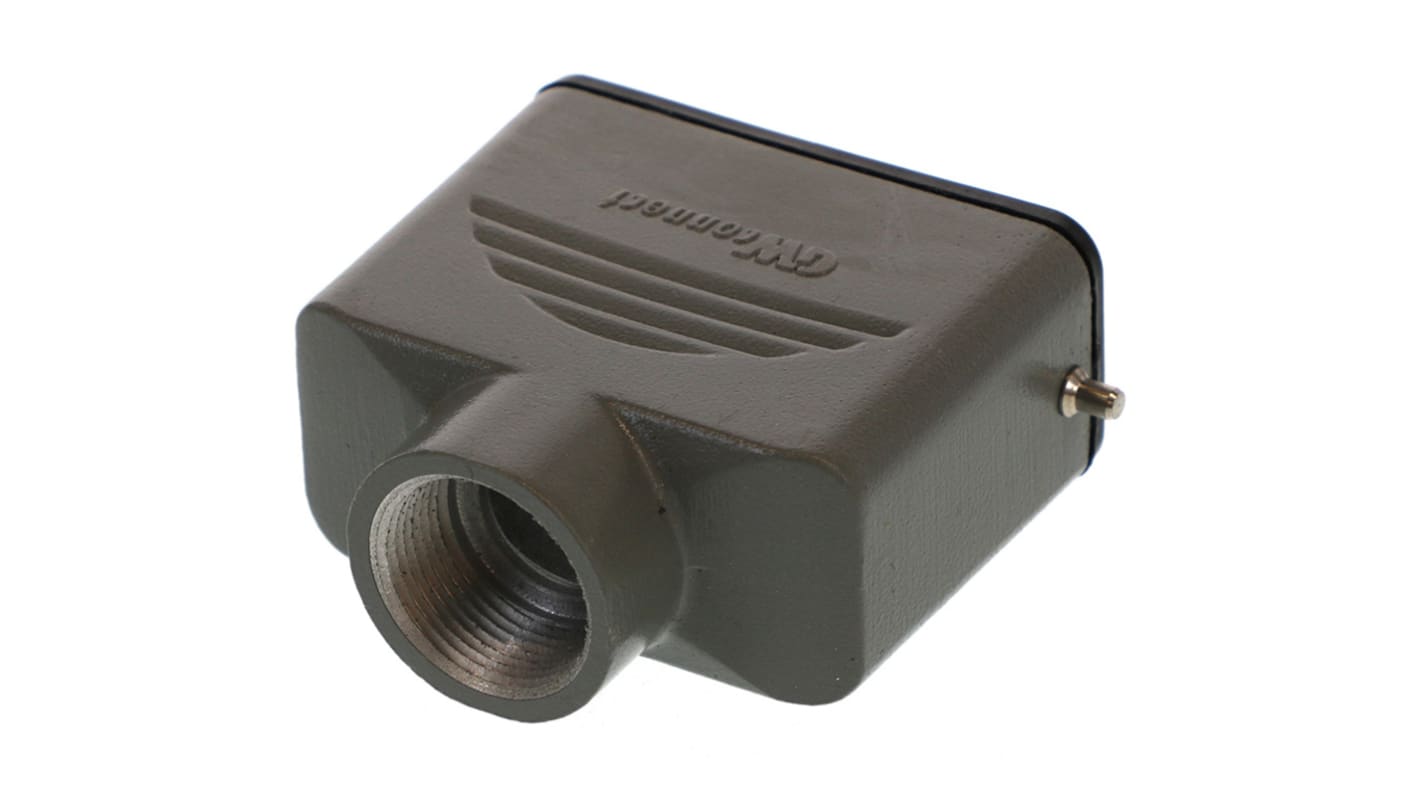

Molex 93601 Series Heavy Duty Power Connector Hood, 10A size, Pg16 Thread size - 936011176
This heavy-duty power connector hood falls under the GWconnect category, designed for robust applications. Fabricated from die-cast aluminium, it ensures durability and longevity, while maintaining a sleek grey finish. With a top entry design, this 500V connector hood is particularly suited for demanding environments, ensuring reliable performance in a range of industrial settings.
Features & Benefits
• Built with a die-cast aluminium body for enhanced durability
• IP66 rating provides protection against dust and water ingress
• Designed for top entry, facilitating easy cable management
• Single lever operation simplifies connection processes
• Compatible with size 10A «49x16» S-A and S-D inserts
• Extended Pg16 thread enhances secure connections
Applications
• Used with specific size 10A «49x16» connectors
• Ideal for rugged electrical in automation
• Suitable for use in harsh environments requiring IP66 protection
• Designed for optimal integration in mechanical and electrical setups
What is the significance of the IP66 rating?
The IP66 rating indicates that the connector hood is completely protected against dust and can withstand powerful water jets, making it ideal for outdoor and challenging environments.
What type of materials are used in the construction of the hood?
The hood is made from die-cast aluminium, providing excellent structural integrity and resistance to corrosion, whilst the pegs are constructed from stainless steel.
How does the top entry design benefit installation?
The top entry design allows for straightforward cable insertion, which simplifies installation and reduces the likelihood of damage during set-up.
What are the operational voltage capabilities of this hood?
This connector hood is rated for a maximum voltage of 500V, making it suitable for high voltage applications in industrial contexts.
How do I determine compatibility with existing connector inserts?
Ensure that the insert you are using is specifically listed as compatible, particularly size 10A «49x16» S-A and S-D types for optimal performance.
