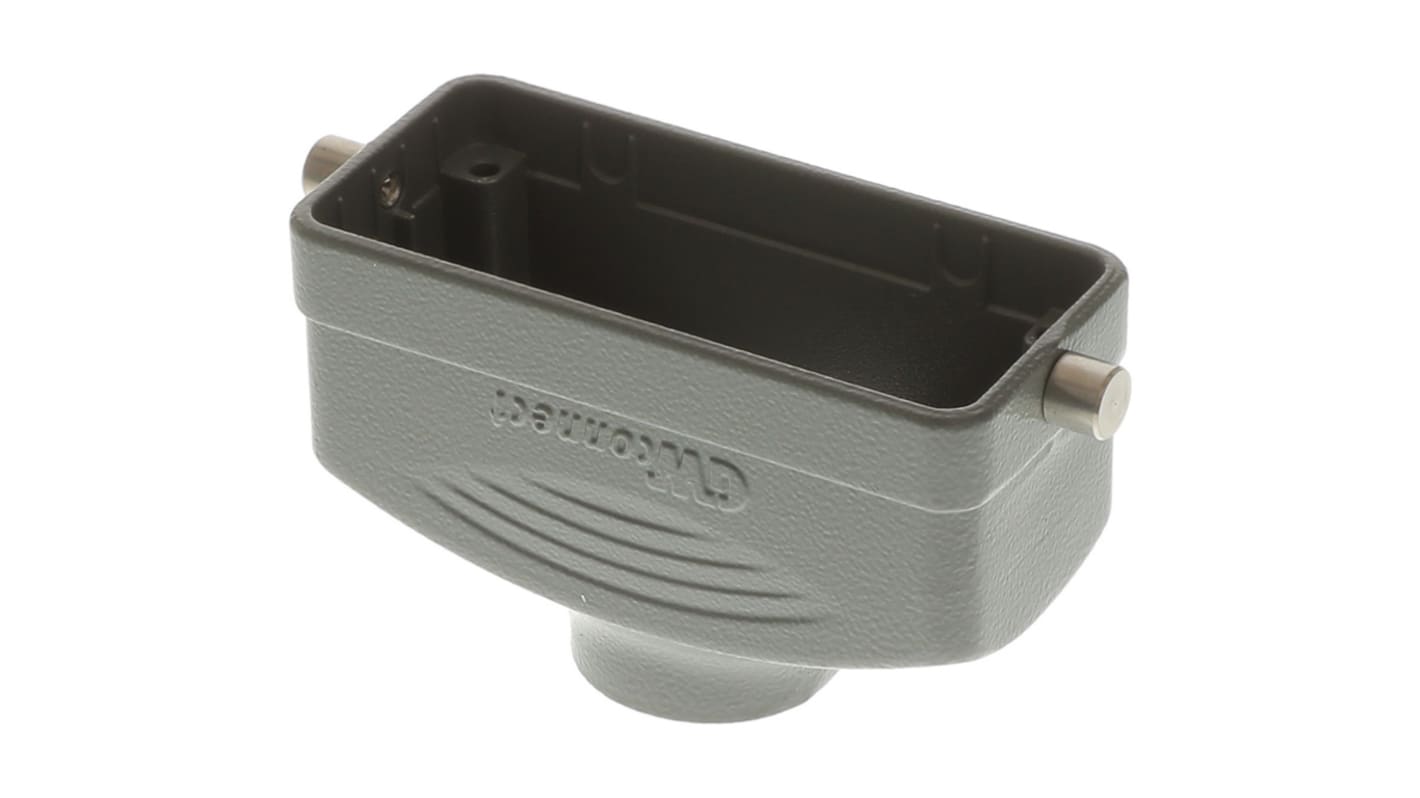

Molex 93601 Heavy Duty Power Connector Hood, M25 Thread, Top Entry

RS Stock No.:: 250-2089
Mfr. Part No.:: 936012816
Manufacturer:: Molex

Molex 93601 Heavy Duty Power Connector Hood, M25 Thread, Top Entry

Bulk discount available

Subtotal (1 unit)*

€16.59

(exc. VAT)

€20.41

(inc. VAT)

In Stock

9 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	€16.59
10 - 99	€16.08
100 - 249	€15.38
250 - 499	€14.74
500 +	€13.93

*price indicative

RS Stock No.:: 250-2089
Mfr. Part No.:: 936012816
Manufacturer:: Molex

Molex 93601 Series Heavy Duty Power Connector Hood, M25 Thread size, IP66 Ingress Protection - 936012816

This heavy-duty power connector hood is designed for industrial applications, providing robust protection and reliability. It features a size 16B configuration, ensuring compatibility with a variety of inserts. The top-entry design facilitates easy cable management, making it an ideal choice for automated and electrical installations.

Features & Benefits

• IP66 rating ensures excellent resistance against dust and moisture
• Designed with a top entry for efficient cable routing
• Single lever hood allows for quick and simple operation
• Includes stainless steel pegs for added stability

Applications

• Used with size 16B inserts for various connector types
• Suitable for heavy-duty electrical installations in harsh environments
• Ideal for automation equipment and machinery connections
• Can be applied in outdoor electrical systems needing weatherproofing

What materials are used for manufacturing this connector hood?

It is made from die-cast aluminium, providing strength and corrosion resistance, while the pegs are crafted from stainless steel to ensure durability during use.

How does the IP66 rating benefit performance in outdoor setups?

The IP66 rating guarantees complete protection against dust ingress and strong water jets, making it suitable for outdoor applications where exposure to the elements is a concern.

What mounting features enhance the design for secure connections?

The extended M25 thread allows for easy attachment to compatible enclosures, ensuring a secure fit even in challenging conditions, reducing the risk of accidental disconnection.

Can the connector hood be used in extreme temperatures?

While the hood is designed primarily for environmental resistance, users should consult specific temperature guidelines for materials used in conjunction with the connectors to ensure optimal performance in extreme conditions.

What types of inserts are compatible with this connector hood?

It is specifically designed to work with various size 16B inserts including S-D, S-DD, S-E, and others, enhancing application flexibility and performance across diverse setups.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	93601
	Type	STD
	Thread Size	M25
	Size	16B
	Body Orientation	Top Entry
	IP Rating	IP66
	Cable Entry Angle	Top
	Voltage Rating	500 V
	Series Number	93601
	Number of Levers	1
	For Use With	S-DD, S-E, S-EHV Inserts, S-EP, S-ES, S-ESHV, S-HSB, S-K, S-M, SEE, Size 16B (77x27) S-D
	Contact Material	Aluminium Alloy

	Select all
	Brand Molex
	Series 93601
	Type STD
	Thread Size M25
	Size 16B
	Body Orientation Top Entry
	IP Rating IP66
	Cable Entry Angle Top
	Voltage Rating 500 V
	Series Number 93601
	Number of Levers 1
	For Use With S-DD, S-E, S-EHV Inserts, S-EP, S-ES, S-ESHV, S-HSB, S-K, S-M, SEE, Size 16B (77x27) S-D
	Contact Material Aluminium Alloy
