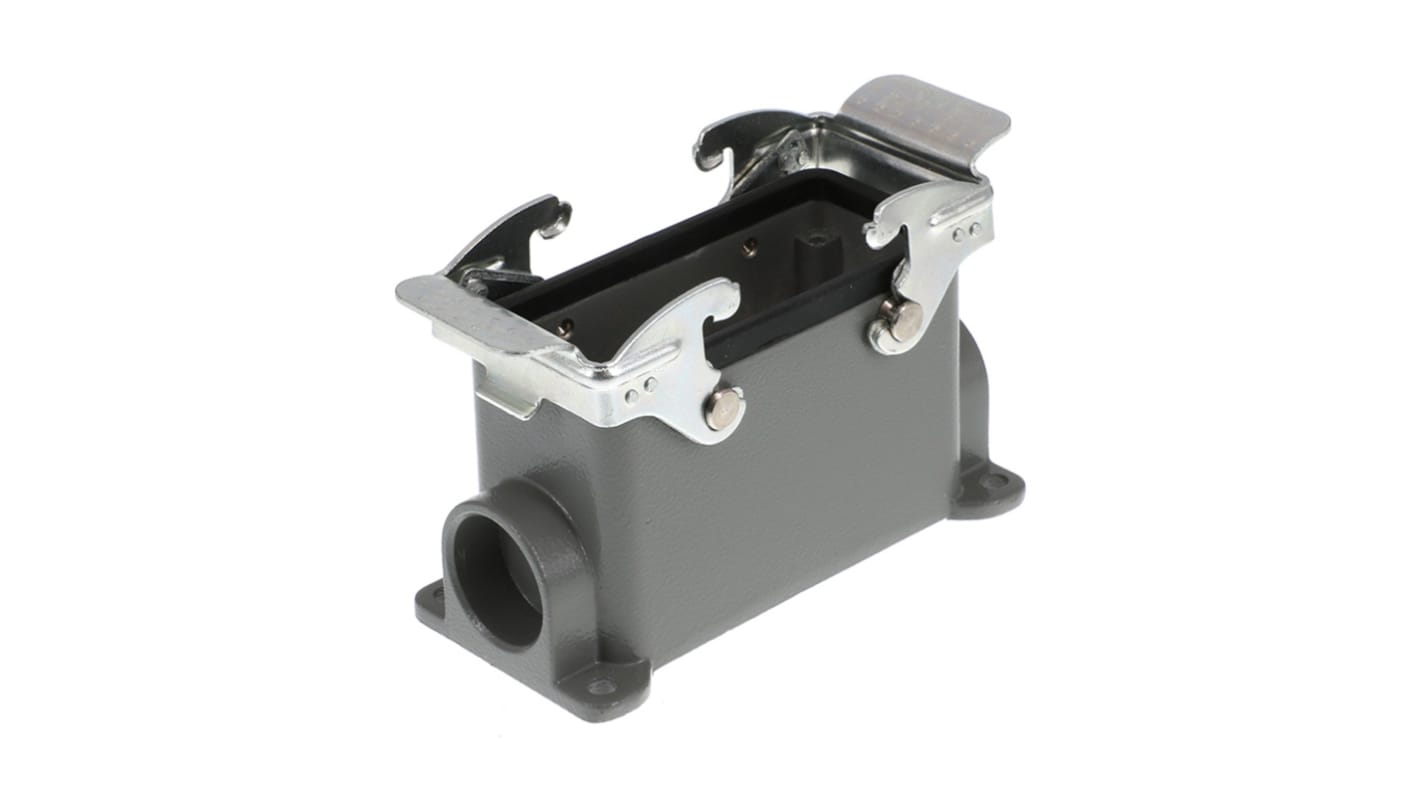

Molex 93601 Heavy Duty Power Connector Housing, Pg21 Thread, Side Entry

RS Stock No.:: 250-2067
Mfr. Part No.:: 936012539
Manufacturer:: Molex

Molex 93601 Heavy Duty Power Connector Housing, Pg21 Thread, Side Entry

Subtotal (1 unit)*

€31.20

(exc. VAT)

€38.38

(inc. VAT)

In Stock

14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€31.20

*price indicative

RS Stock No.:: 250-2067
Mfr. Part No.:: 936012539
Manufacturer:: Molex

Molex 93601 Series Heavy Duty Power Connector Housing, 500V Voltage Rating, size 16B «77x27» - 936012539

This heavy-duty power connector housing is crafted from die-cast aluminium and features a size 16B configuration (77x27) and is designed for surface mount applications. The PG21 thread ensures a secure and reliable fit, making it suitable for various demanding environments.

Features & Benefits

• Designed to withstand harsh conditions with an IP66 rating
• Accommodates 500V maximum voltage for high-demand applications
• Double lever mechanism enhances secure fastening during installation
• Gasket ensures protection against dust and moisture ingress
• Compatible with multiple size 16B inserts for versatile use
• Aluminium alloy housing provides durability and weight efficiency

Applications

• Designed for use with size 16B S-D, S-DD, S-E, and S-EHV inserts
• Ideal for electrical and mechanical industry
• Suitable for automation systems requiring robust connectivity
• Utilised in environments needing surface mount power connectors
• Effective in securing connections in industrial equipment

What materials are used in its construction that contribute to durability?

The housing is made from die-cast aluminium, while the levers are constructed from galvanised steel, ensuring strength and longevity. Additionally, an NBR gasket is included to protect against environmental factors.

How does the IP66 rating benefit the connector in industrial settings?

The IP66 rating means it is resistant to dust and can withstand powerful water jets. This ensures reliable operation even in challenging conditions, protecting internal connections from damage.

What size and configuration of inserts can be used with this housing?

This connector is designed specifically for size 16B configurations, allowing for compatibility with various inserts in that category, including S-D, S-DD, and others.

Are there specific configurations suitable for automation systems?

Yes, this power connector housing is specifically tailored for use in automation systems, ensuring reliable connections even in high-demand scenarios.

How does the double lever mechanism enhance usability?

The double lever mechanism provides a secure connection that is easier to engage and release, facilitating quick and efficient installation and maintenance in the field.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	93601
	Type	STD
	Thread Size	Pg21
	Mounting Type	Surface Mount
	Size	16B
	Body Orientation	Side Entry
	Contact Material	Aluminium Alloy

	Select all
	Brand Molex
	Series 93601
	Type STD
	Thread Size Pg21
	Mounting Type Surface Mount
	Size 16B
	Body Orientation Side Entry
	Contact Material Aluminium Alloy
