Molex 93601 Heavy Duty Power Connector Hood, M25 Thread, Top Entry

RS Stock No.:: 250-2092
Mfr. Part No.:: 936012824
Manufacturer:: Molex

Molex 93601 Heavy Duty Power Connector Hood, M25 Thread, Top Entry

Bulk discount available

Subtotal (1 unit)*

€12.61

(exc. VAT)

€15.51

(inc. VAT)

In Stock

10 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	€12.61
10 - 99	€12.21
100 - 249	€11.71
250 - 499	€11.20
500 +	€10.61

*price indicative

RS Stock No.:: 250-2092
Mfr. Part No.:: 936012824
Manufacturer:: Molex

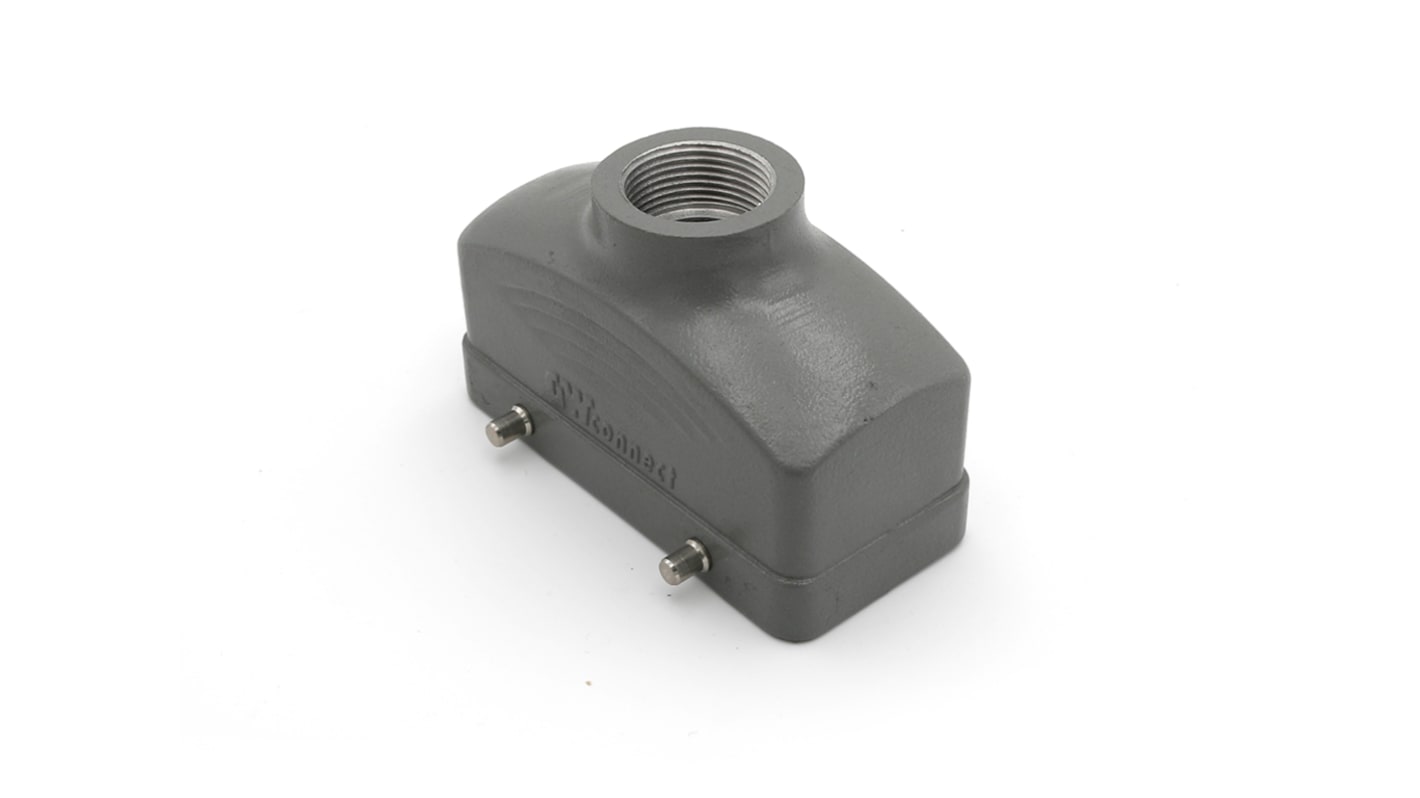

Molex 93601 Series Heavy Duty Power Connector Hood, size 16B «77x27», IP66 Rating - 936012824

This heavy duty power connector hood is designed for robust industrial use. Specifically created for heavy-duty connectors, it features a top entry design and accommodates size 16B inserts (77x27). The grey, die-cast aluminium casing ensures durability and protection against harsh environmental conditions, rated at IP66 for resistance against dust and water ingress.

Features & Benefits

• Ultra-durable die-cast aluminium construction increases longevity
• IP66 rating provides superior protection in demanding conditions
• Top entry design simplifies cable management and installation
• Enhanced locking mechanism secures connections under load
• Extended M25 thread allows for versatile mounting options
• Compatible with a variety of size 16B inserts for flexibility

Applications

• Utilised with size 16B inserts in heavy machinery
• Suitable for high-voltage with up to 500V
• Commonly found in automation and electrical installations
• Ideal for environments requiring robust sealing against liquids and dust

How does the IP66 rating enhance performance in challenging environments?

The IP66 rating guarantees that the connector hood is completely dust-tight and can withstand powerful water jets, making it suitable for outdoor applications and harsher conditions without compromising functionality.

What are the installation advantages of the top entry design?

The top entry design streamlines the process of connecting cables, facilitating quicker installation times and reducing the likelihood of strain on the cable during assembly.

How does the use of die-cast aluminium affect the product’s durability?

Die-cast aluminium construction offers high strength while remaining lightweight, allowing the connector hood to withstand mechanical stress and resist corrosion in various industrial settings.

In what specific types of machinery is this connector typically used?

This connector hood is frequently employed in heavy machinery, including construction equipment and manufacturing systems, where reliable electrical connections are crucial.

What features ensure secure connections under load?

The dual lever locking mechanism and precision-engineered design ensure a tight fit, which prevents accidental disconnections, even when the connector is subjected to heavy loads or vibrations.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	93601
	Type	STD
	Thread Size	M25
	Size	16B
	Body Orientation	Top Entry
	Contact Material	Aluminium Alloy

	Select all
	Brand Molex
	Series 93601
	Type STD
	Thread Size M25
	Size 16B
	Body Orientation Top Entry
	Contact Material Aluminium Alloy
