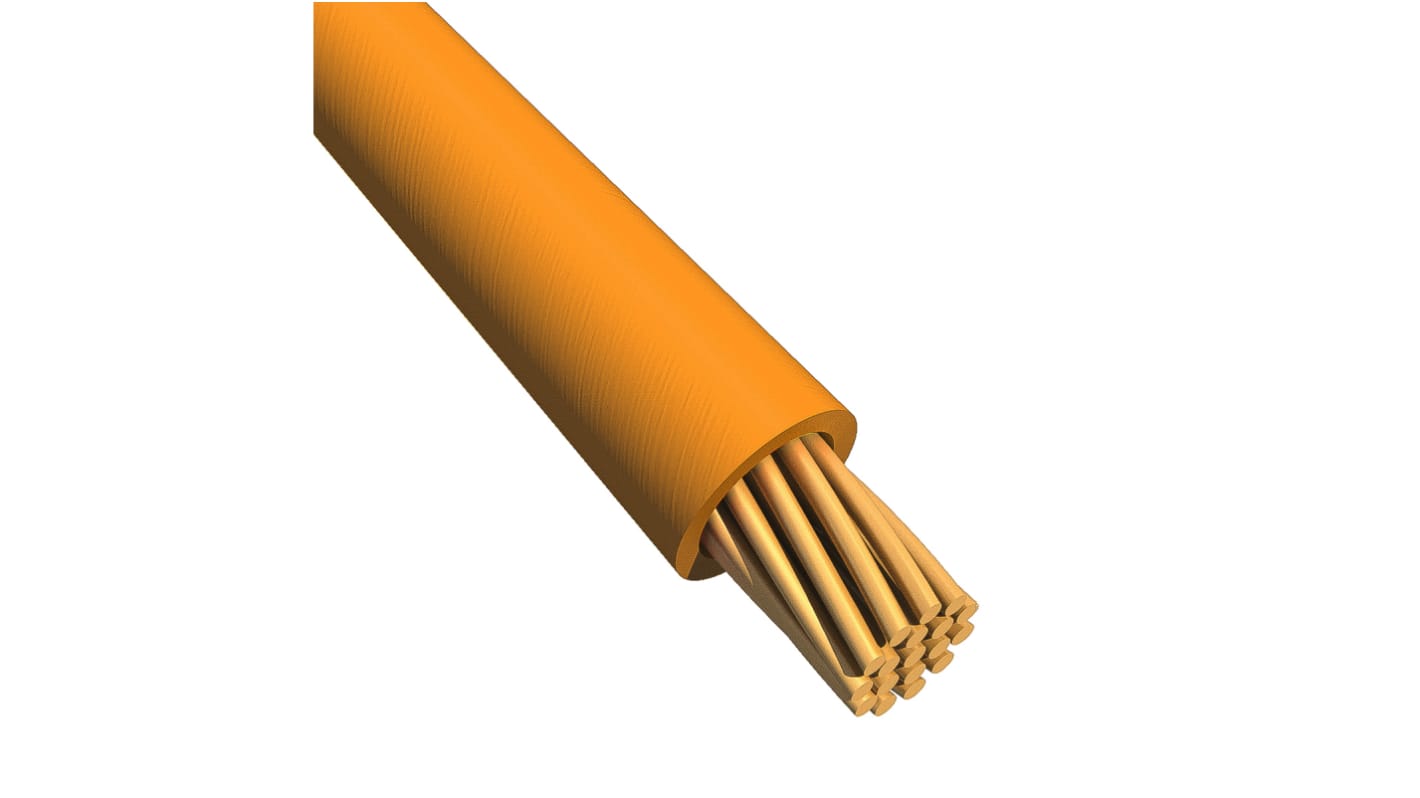

Alpha Wire Ecogen Ecowire Series Orange 0.52 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 30m, MPPE Insulation, 6714 OR005
- RS Stock No.:
- 687-7512
- Mfr. Part No.:
- 6714 OR005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
€32.12
(exc. VAT)
€39.51
(inc. VAT)
In Stock
- 7 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 11 August 2025
- Plus 24 unit(s) shipping from 01 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €32.12 | €1.071 |
*price indicative
- RS Stock No.:
- 687-7512
- Mfr. Part No.:
- 6714 OR005
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.52 mm² | |
| Sheath Colour | Orange | |
| Cable Shape | Single Core | |
| American Wire Gauge | 20 AWG | |
| Core Strands | 10/0.25 mm | |
| Length | 30m | |
| Insulation Material | MPPE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 1.4mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL11028 | |
| Standards Met | CE, CSA, UL | |
| Cable Type | EcoCable | |
| Tri-rated | No | |
| Series | Ecogen Ecowire | |
| Hook Up Wire Type | High Temperature | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 10 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.52 mm² | ||
Sheath Colour Orange | ||
Cable Shape Single Core | ||
American Wire Gauge 20 AWG | ||
Core Strands 10/0.25 mm | ||
Length 30m | ||
Insulation Material MPPE | ||
Voltage Rating 600 V | ||
Outer Diameter 1.4mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL11028 | ||
Standards Met CE, CSA, UL | ||
Cable Type EcoCable | ||
Tri-rated No | ||
Series Ecogen Ecowire | ||
Hook Up Wire Type High Temperature | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.25 mm | ||
Number of Strands 10 | ||
