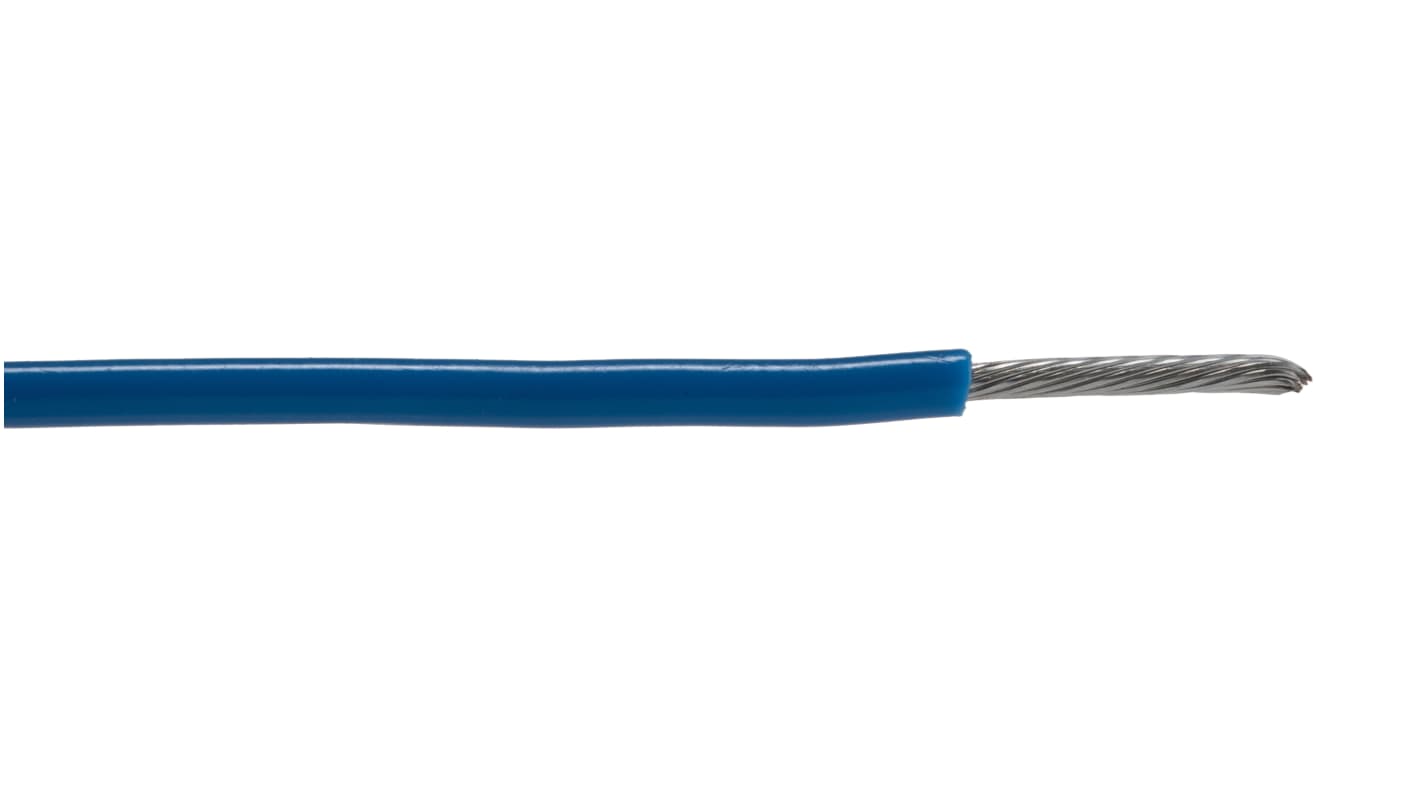

Alpha Wire Hook-up Wire PVC Series Blue 0.75 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 30m, PVC Insulation, 1555 BL005
- RS Stock No.:
- 842-5867
- Mfr. Part No.:
- 1555 BL005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
€37.36
(exc. VAT)
€45.95
(inc. VAT)
In Stock
- 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €37.36 | €1.245 |
*price indicative
- RS Stock No.:
- 842-5867
- Mfr. Part No.:
- 1555 BL005
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.75 mm² | |
| Sheath Colour | Blue | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 18 AWG | |
| Core Strands | 16/0.25 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Voltage Rating | 1 kV | |
| Outer Diameter | 2mm | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | High Temperature | |
| Standards Met | Military MIL-W-76B TYPE MW | |
| Wire Style | MIL-W-76 | |
| Series | Hook-up Wire PVC | |
| Tri-rated | No | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.4mm | |
| Shield Type | Unshielded | |
| Number of Strands | 16 | |
| Resistant To | Chemicals, Oils, Solvents | |
| Size of Strands | 0.25 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.75 mm² | ||
Sheath Colour Blue | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 18 AWG | ||
Core Strands 16/0.25 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Voltage Rating 1 kV | ||
Outer Diameter 2mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Cable Type High Temperature | ||
Standards Met Military MIL-W-76B TYPE MW | ||
Wire Style MIL-W-76 | ||
Series Hook-up Wire PVC | ||
Tri-rated No | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.4mm | ||
Shield Type Unshielded | ||
Number of Strands 16 | ||
Resistant To Chemicals, Oils, Solvents | ||
Size of Strands 0.25 mm | ||
