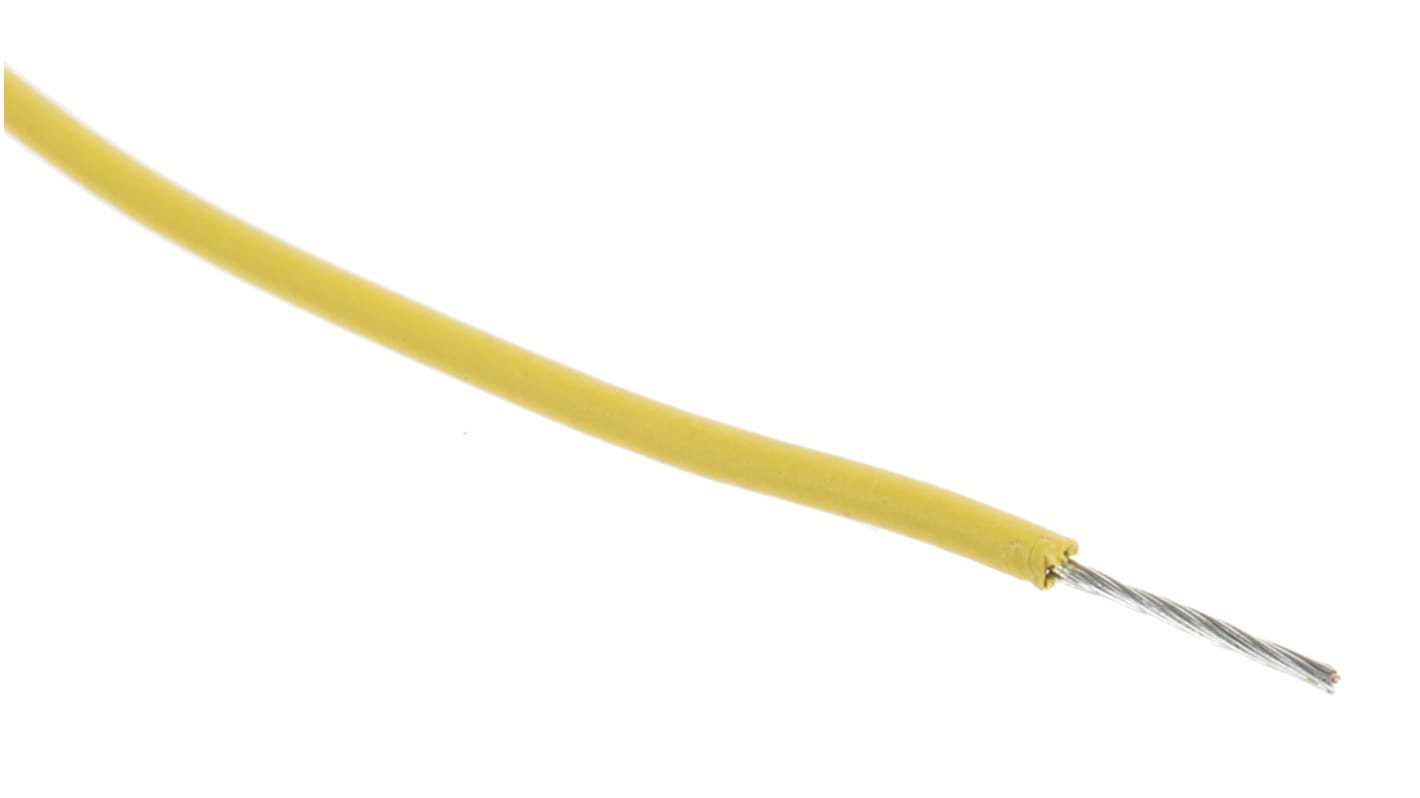

RS PRO Yellow 0.33mm² Hook Up Wire, 22 AWG, 17/0.16 mm, 100m, XLPE Insulation
- RS Stock No.:
- 872-5300
- Manufacturer:
- RS PRO
Subtotal (1 reel of 100 metres)*
€25.05
(exc. VAT)
€30.81
(inc. VAT)
In Stock
- 105 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | €25.05 | €0.25 |
*price indicative
- RS Stock No.:
- 872-5300
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.33mm² | |
Sheath Colour | Yellow | |
American Wire Gauge | 22 AWG | |
Core Strands | 17/0.16 mm | |
Length | 100m | |
Insulation Material | XLPE | |
Voltage Rating | 300 V | |
Outer Diameter | 1.58mm | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | 0°C | |
Conductor Material | Tinned Copper | |
Wire Style | UL3266 | |
Standards Met | UL 1581, UL 758 | |
Insulation Wall Thickness | 0.4mm | |
Size of Strands | 0.16mm | |
Number of Strands | 17 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.33mm² | ||
Sheath Colour Yellow | ||
American Wire Gauge 22 AWG | ||
Core Strands 17/0.16 mm | ||
Length 100m | ||
Insulation Material XLPE | ||
Voltage Rating 300 V | ||
Outer Diameter 1.58mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature 0°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL3266 | ||
Standards Met UL 1581, UL 758 | ||
Insulation Wall Thickness 0.4mm | ||
Size of Strands 0.16mm | ||
Number of Strands 17 | ||
