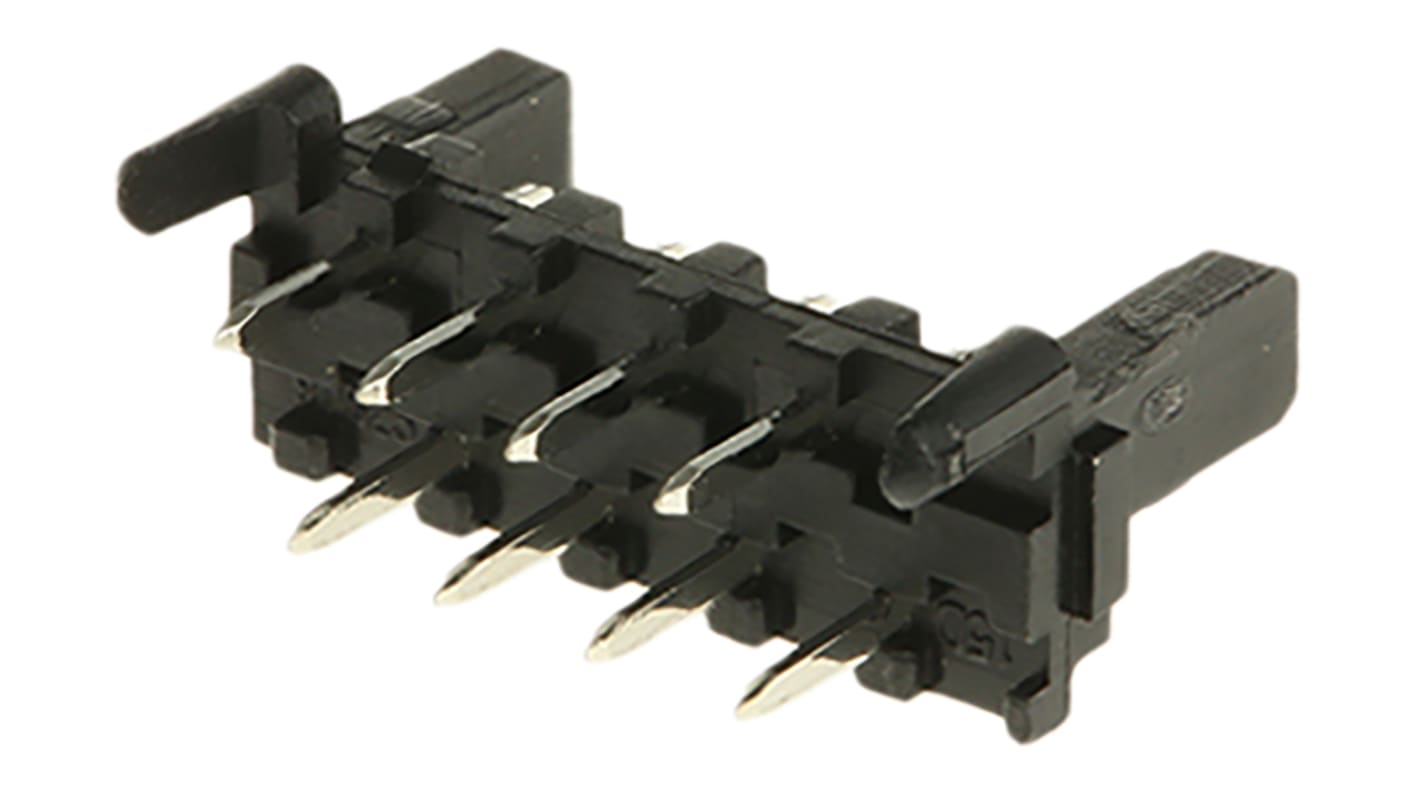

Molex 8-Way IDC Connector Plug for Through Hole Mount, 1-Row

RS Stock No.:: 324-8126
Mfr. Part No.:: 90325-0008
Manufacturer:: Molex

Molex 8-Way IDC Connector Plug for Through Hole Mount, 1-Row

Subtotal (1 pack of 5 units)**

€2.96

(exc. VAT)

€3.64

(inc. VAT)

55 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit	Per Pack**
5 +	€0.592	€2.96

**price indicative

Compare

RS Stock No.:: 324-8126
Mfr. Part No.:: 90325-0008
Manufacturer:: Molex

Molex Picoflex Series IDC Connector, 1.2A Current Rating, Through-Hole Mounting - 90325-0008

This IDC connector by Molex is a versatile solution for various industrial applications. With straight body orientation and robust brass contacts plated with tin over nickel, this connector ensures reliable performance in diverse environments. The 1.27mm pitch and through-hole mounting make it easy to integrate into existing systems seamlessly.

Features & Benefits

• Male connector with 8 contacts and 1 row
• PBT housing for durability and safety
• High voltage rating of 250V AC for added safety
• Easy to install with staggered solder tails

Applications

• Ideal for systems requiring a current rating of 1.2A
• Suitable for use in robotics and automation systems
• Can be used for electronics and electrical equipment
• Ideal for applications requiring reliable signal transmission

Can it handle high temperatures?

This connector can operate in temperatures ranging from -40°C to 105°C, making it suitable for a wide range of industrial applications.

Will it work with through-hole mounting?

Yes, the through-hole mounting type of this connector ensures a secure and stable connection in various systems.

Is it suitable for applications requiring a high current rating?

With a current rating of 1.2A, this connector is ideal for applications that demand efficient power transmission.

Can it be used in male configurations?

Yes, this IDC connector features a male gender, making it compatible with various connectors and devices.

Does it require any special tools for installation?

No, this connector can be easily installed using standard tools and techniques, providing a hassle-free setup process.

Approvals

UL (E29179); CSA (LR19980-181)

1.27mm Wire to Board IDT - Molex Picoflex PF-50 Series

The Picoflex Series from Molex is a reliable range of Wire to Board connectors offering designers more options for high-density applications where standard discrete wire and flat flexible connectors are not appropriate. Picoflex IDT connectors are ideal for automotive and consumer electronics industries.

50% space saving compared with traditional pitch
Pre-terminated cable assemblies available
Lower profile (mated height only 6.4mm)
Excellent polarisation features and integral strain relief
High resistance to vibration/shock

Attribute	Value
Number of Contacts	8
Number of Rows	1
Gender	Male
Pitch	1.27mm
Mounting Type	Through Hole
Body Orientation	Straight
Termination Method	IDC
Current Rating	1.2A
Contact Plating	Tin over Nickel
Series	Picoflex
Minimum Operating Temperature	-40.0°C
Maximum Operating Temperature	105.0°C
Voltage Rating	250.0 V ac
Contact Material	Brass
Housing Material	PBT
