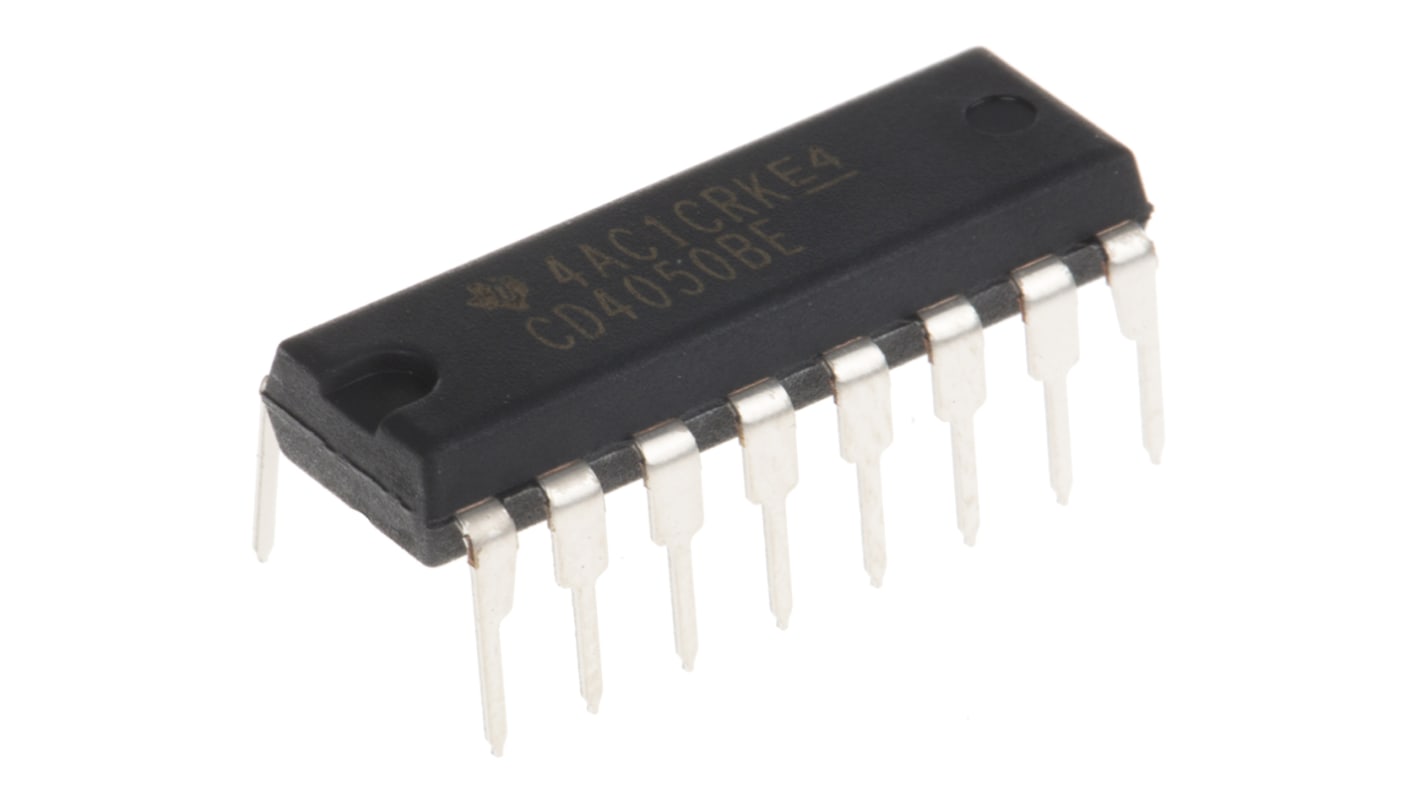

Texas Instruments CD4050BE Hex Buffer, 16-Pin PDIP
- RS Stock No.:
- 526-543
- Mfr. Part No.:
- CD4050BE
- Manufacturer:
- Texas Instruments
Subtotal (1 tube of 25 units)*
€9.00
(exc. VAT)
€11.00
(inc. VAT)
In Stock
- 2,575 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
25 + | €0.36 | €9.00 |
*price indicative
- RS Stock No.:
- 526-543
- Mfr. Part No.:
- CD4050BE
- Manufacturer:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Logic Function | Non-Inverting | |
Output Type | CMOS | |
Number of Elements per Chip | 6 | |
Maximum Propagation Delay Time @ Maximum CL | 140 ns @ 5 V, 60 ns @ 15 V, 80 ns @ 10 V | |
Maximum High Level Output Current | -5.2mA | |
Maximum Low Level Output Current | 26mA | |
Mounting Type | Through Hole | |
Package Type | PDIP | |
Pin Count | 16 | |
Logic Family | 4000 | |
Dimensions | 19.3 x 6.35 x 4.57mm | |
Maximum Operating Supply Voltage | 20 V | |
Height | 4.57mm | |
Minimum Operating Supply Voltage | -0.5 V | |
Maximum Operating Temperature | +125 °C | |
Length | 19.3mm | |
Minimum Operating Temperature | -55 °C | |
Propagation Delay Test Condition | 50pF | |
Width | 6.35mm | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Logic Function Non-Inverting | ||
Output Type CMOS | ||
Number of Elements per Chip 6 | ||
Maximum Propagation Delay Time @ Maximum CL 140 ns @ 5 V, 60 ns @ 15 V, 80 ns @ 10 V | ||
Maximum High Level Output Current -5.2mA | ||
Maximum Low Level Output Current 26mA | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 16 | ||
Logic Family 4000 | ||
Dimensions 19.3 x 6.35 x 4.57mm | ||
Maximum Operating Supply Voltage 20 V | ||
Height 4.57mm | ||
Minimum Operating Supply Voltage -0.5 V | ||
Maximum Operating Temperature +125 °C | ||
Length 19.3mm | ||
Minimum Operating Temperature -55 °C | ||
Propagation Delay Test Condition 50pF | ||
Width 6.35mm | ||
