Global Laser 1260-04-000 Laser Module 3 mW Diode, Gating, Output Enable Logic Inputs control Ellipse pattern 7 V 3 V

RS Stock No.:: 442-3328
Mfr. Part No.:: 1260-04-000
Manufacturer:: Global Laser

Global Laser 1260-04-000 Laser Module 3 mW Diode, Gating, Output Enable Logic Inputs control Ellipse pattern 7 V 3 V

Bulk discount available

Subtotal (1 unit)*

€167.93

(exc. VAT)

€206.55

(inc. VAT)

Limited stock

2 left, ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	€167.93
5 - 9	€159.53
10 - 19	€151.14
20 +	€142.74

*price indicative

RS Stock No.:: 442-3328
Mfr. Part No.:: 1260-04-000
Manufacturer:: Global Laser

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Global Laser
	Laser Type	Diode
	Product Type	Laser Module
	Laser Colour	Red
	Emission Pattern	Ellipse
	Optical Output Power	3mW
	Control Type	Gating, Output Enable Logic Inputs
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Length	500mm
	Standards/Approvals	IEC60825-1 Amendment 2/2001
	Maximum Supply Voltage	7V
	Series	Gated Cameo 1260
	Minimum Supply Voltage	3V
	Automotive Standard	No

	Select all
	Brand Global Laser
	Laser Type Diode
	Product Type Laser Module
	Laser Colour Red
	Emission Pattern Ellipse
	Optical Output Power 3mW
	Control Type Gating, Output Enable Logic Inputs
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Length 500mm
	Standards/Approvals IEC60825-1 Amendment 2/2001
	Maximum Supply Voltage 7V
	Series Gated Cameo 1260
	Minimum Supply Voltage 3V
	Automotive Standard No

COO (Country of Origin):: GB

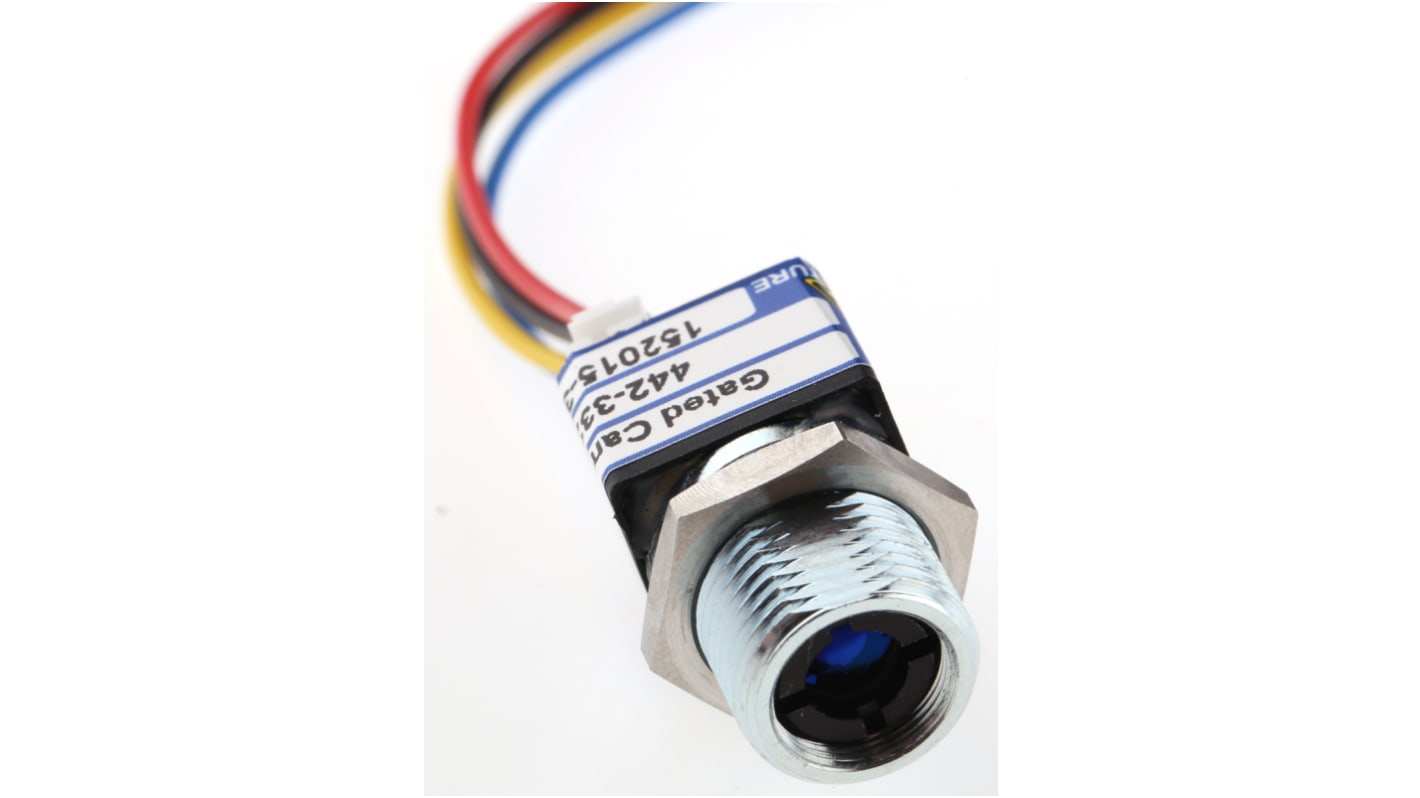

Cameo Industrial Laser Module

Simple thread-mounted industrial laser modules.

Cameo 1250 Standard Series:

Isolated metal case with M12 thread

Size: 24 x 14 x 14mm

User focusable

Spot size: Less than 50 micron

Divergence: Less than 0.5 mRad

Designed for continuous cool running

Wide range of focus distances

JST 2-way connector

Cameo 1260 Gated Series - additional features:

TTL input facilitates rapid switching/gating

Switching speeds up to 100kHz

Controlled chopping minimises power consumption and extends life

True ON/OFF pulsed control

Low-speed enable input

Low power consumption

JST 4-way connector

Laser Modules, Global Laser

Note

Lens type is either Circular (C2) spot, or Elliptical (S) spot

Warning

These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.

Standards

Complies with BS (EN) 60825
