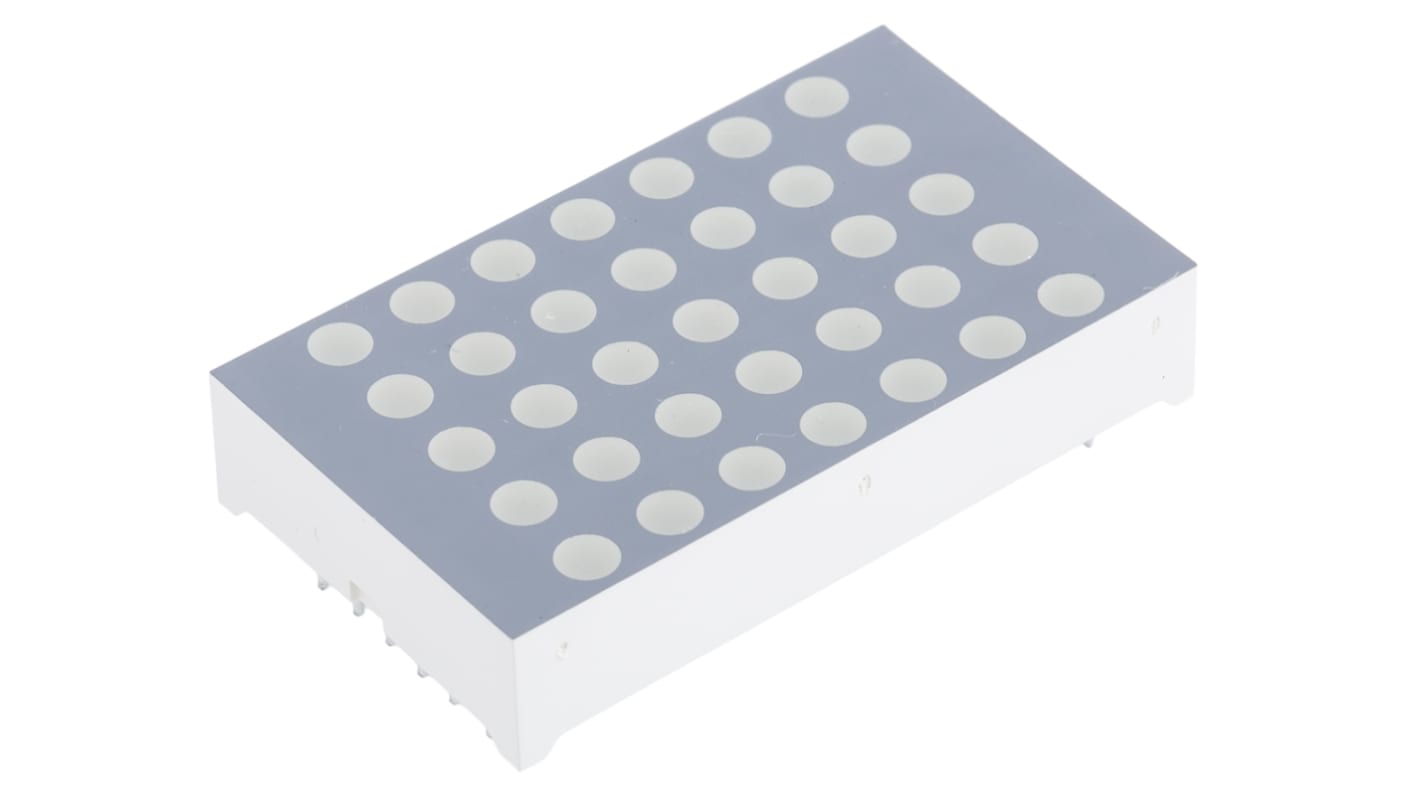

TA12-11EWA Kingbright Dot Matrix LED Display, CA 7 x 5 Dot Matrix Red 14 mcd 30.5mm
- RS Stock No.:
- 451-6688
- Mfr. Part No.:
- TA12-11EWA
- Manufacturer:
- Kingbright
Bulk discount available
Subtotal (1 unit)*
€5.46
(exc. VAT)
€6.72
(inc. VAT)
In Stock
- 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €5.46 |
| 5 - 19 | €5.18 |
| 20 - 49 | €4.53 |
| 50 - 99 | €3.91 |
| 100 + | €3.82 |
*price indicative
- RS Stock No.:
- 451-6688
- Mfr. Part No.:
- TA12-11EWA
- Manufacturer:
- Kingbright
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | Dot Matrix | |
| LED Colours | Red | |
| Dominant Wavelength | 630 nm | |
| Character Width | 21mm | |
| Character Height | 30.5mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Width | 22.9mm | |
| External Depth | 8mm | |
| External Height | 39mm | |
| External Dimensions | 39 x 22.9 x 8mm | |
| Luminous Intensity | 14 mcd | |
| Colour of Face | Grey | |
| Forward Voltage | 2 V | |
| Power Dissipation | 75mW | |
| Dots Wide | 5 | |
| Minimum Operating Temperature | -40°C | |
| Dot Matrix Dimensions | 7 x 5 | |
| Maximum Operating Temperature | +85°C | |
| Forward Current | 30mA | |
| Dot Matrix Format | 5 x 7 | |
| Series | TA12 | |
| Operating Temperature Range | -40 → +85°C | |
| Dots High | 7 | |
Select all | ||
|---|---|---|
Brand Kingbright | ||
Display Type Dot Matrix | ||
LED Colours Red | ||
Dominant Wavelength 630 nm | ||
Character Width 21mm | ||
Character Height 30.5mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Width 22.9mm | ||
External Depth 8mm | ||
External Height 39mm | ||
External Dimensions 39 x 22.9 x 8mm | ||
Luminous Intensity 14 mcd | ||
Colour of Face Grey | ||
Forward Voltage 2 V | ||
Power Dissipation 75mW | ||
Dots Wide 5 | ||
Minimum Operating Temperature -40°C | ||
Dot Matrix Dimensions 7 x 5 | ||
Maximum Operating Temperature +85°C | ||
Forward Current 30mA | ||
Dot Matrix Format 5 x 7 | ||
Series TA12 | ||
Operating Temperature Range -40 → +85°C | ||
Dots High 7 | ||
