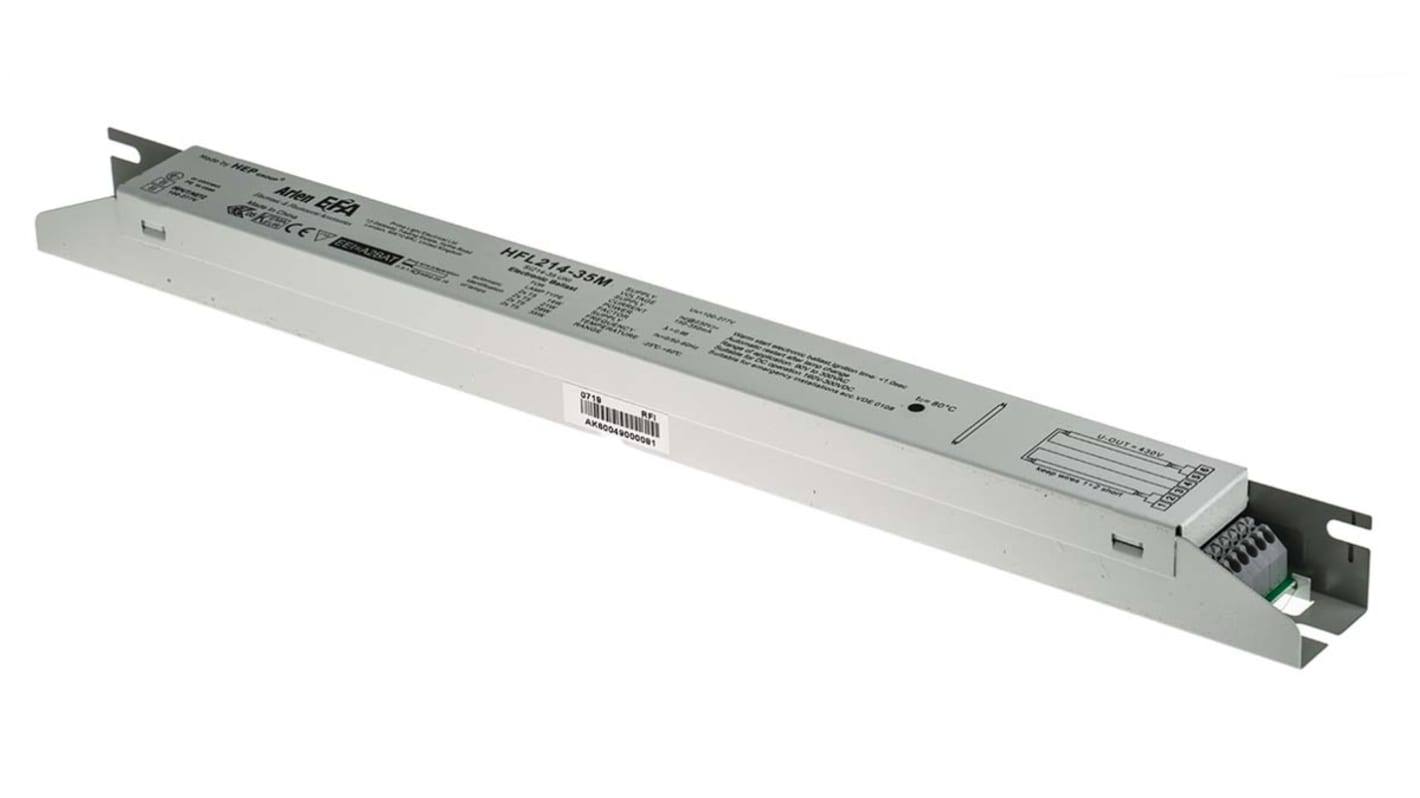

RS PRO 14 → 35 (T5) W Electronic Fluorescent Lighting Ballast, 220 → 240 V
- RS Stock No.:
- 778-5317
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 06-05-2024, delivery within 2 working days
Added
Price Each
€51.71
(exc. VAT)
€63.60
(inc. VAT)
| Units | Per unit |
| 1 + | €51.71 |
- RS Stock No.:
- 778-5317
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
RS PRO 14 to 35 (T5) W Electronic Fluorescent Lighting Ballast, 220 to 240 V
This electronic lighting ballast from RS PRO is a reliable choice for protecting your fluorescent lamps from overheating and burnout. It can be used with any lighting equipment with universal rated voltages of 100 to 277 V AC and 160 to 300 V DC.
This unit is extremely fast-acting and preheats for a warm lamp start in just one second. As it operates at a high frequency, it operates silently and won't flicker. When your lamp has reached the end of its working life, the ballast will cut off supply automatically to protect your circuitry. You can then simply replace your old lamp and it will resume working without the need for rewiring.
This ballast can be used with any standard T5-sized lamp. It's guaranteed a service life of 80,000 hours for long-lasting performance.
This unit is extremely fast-acting and preheats for a warm lamp start in just one second. As it operates at a high frequency, it operates silently and won't flicker. When your lamp has reached the end of its working life, the ballast will cut off supply automatically to protect your circuitry. You can then simply replace your old lamp and it will resume working without the need for rewiring.
This ballast can be used with any standard T5-sized lamp. It's guaranteed a service life of 80,000 hours for long-lasting performance.
Features and Benefits
- Electronic ballast type
- Dimensions of 360 (length) x 30 (width) x 26 mm (height)
- Not dimmable
- A2 European Union (EU) energy efficiency rating
- High frequency
- Operating temperature range of -25°C to +60°C
- Two lamps
- T5 supported lamp shape
- Supports fluorescent lamp type
- Voltage rating of 220 to 240 V
- Wattage of 14 to 35 (T5) W
Specifications
Attribute | Value |
|---|---|
| Wattage | 14 → 35 (T5) W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| High Frequency | Yes |
| Length | 360 mm |
| Width | 30 mm |
| Height | 26mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| EU Energy Efficiency Rating | A2 |
