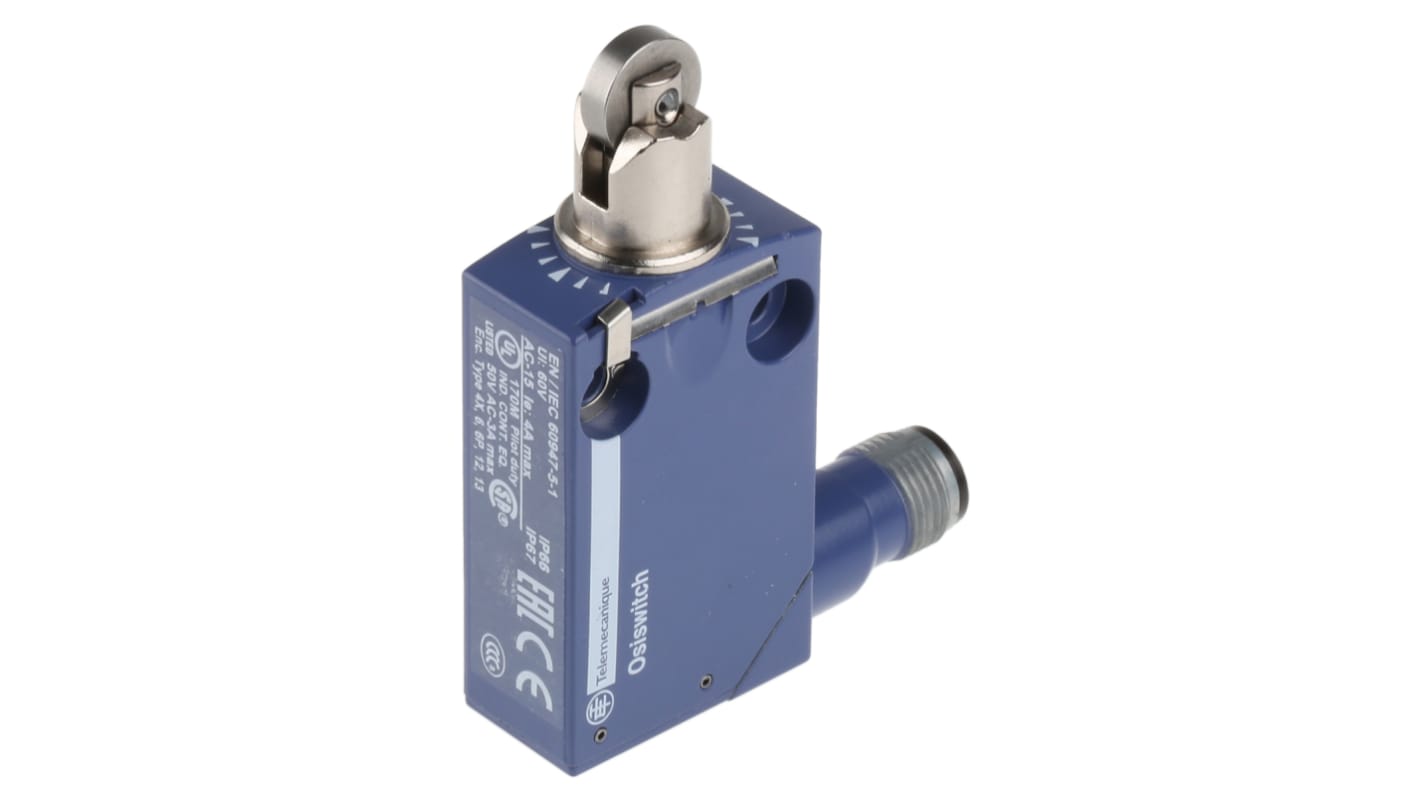

Telemecanique Sensors XCMD Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, IP68, Zamak Housing, 50V ac, 3A
- RS Stock No.:
- 609-6625
- Mfr. Part No.:
- XCMD2102C12
- Manufacturer:
- Telemecanique Sensors
Subtotal (1 unit)*
€106.20
(exc. VAT)
€130.63
(inc. VAT)
Limited stock
- 58 left, ready to ship from another location
- Plus 50 left, shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €106.20 |
*price indicative
- RS Stock No.:
- 609-6625
- Mfr. Part No.:
- XCMD2102C12
- Manufacturer:
- Telemecanique Sensors
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Roller Plunger | |
| Product Type | Limit Switch | |
| IP Rating | IP66, IP67, IP68 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Zamak | |
| Contact Type | Snap Action | |
| Switching Current | 3A | |
| Terminal Type | M12 | |
| Series | XCMD | |
| Switching AC Voltage | 50V ac | |
| Switching DC Voltage | 50V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CCC, CSA, EN 60204-1, IEC 60204-1, UL | |
| Length | 50mm | |
| Depth | 16mm | |
| Width | 30mm | |
| Hazardous Area Certification | No | |
| Operating Force | 7N | |
| Mechanical Life | 10000000Cycles | |
| Conduit Entry | M20 | |
| Mounting Orientation | Multi Directional | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Roller Plunger | ||
Product Type Limit Switch | ||
IP Rating IP66, IP67, IP68 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Zamak | ||
Contact Type Snap Action | ||
Switching Current 3A | ||
Terminal Type M12 | ||
Series XCMD | ||
Switching AC Voltage 50V ac | ||
Switching DC Voltage 50V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CCC, CSA, EN 60204-1, IEC 60204-1, UL | ||
Length 50mm | ||
Depth 16mm | ||
Width 30mm | ||
Hazardous Area Certification No | ||
Operating Force 7N | ||
Mechanical Life 10000000Cycles | ||
Conduit Entry M20 | ||
Mounting Orientation Multi Directional | ||
- COO (Country of Origin):
- ID
Telemecanique Sensors XCMD Series Limit Switch, Roller Plunger Actuator, 1NO/1NC Contact Configuration - XCMD2102C12
This limit switch provides position-sensing control for industrial automation and machinery. It uses a roller plunger actuator to detect linear movement and translates that motion into reliable electrical switching. The enclosure resists ingress from dust and water, making it suitable for demanding environments where robust signal switching is required.
Features and Benefits:
• Snap action contacts deliver quick state change and reduced contact bounce
• 1NO1NC arrangement supports both make and break signalling
• 7N operating force enables precise actuation response
• 3A current rating at 50V provides modest power switching capacity
• M12 terminals with M20 conduit entry simplify field wiring
• Rated to 10,000,000 mechanical cycles for extended operational life
• 1NO1NC arrangement supports both make and break signalling
• 7N operating force enables precise actuation response
• 3A current rating at 50V provides modest power switching capacity
• M12 terminals with M20 conduit entry simplify field wiring
• Rated to 10,000,000 mechanical cycles for extended operational life
Applications
• Suitable for end-of-travel detection on conveyor systems
• Ideal for position sensing on assembly-line machinery
• Used with packaging equipment requiring waterproof sensors
• Can be used for limit detection in test rigs and jigs
• Ideal for position sensing on assembly-line machinery
• Used with packaging equipment requiring waterproof sensors
• Can be used for limit detection in test rigs and jigs
What materials protect the switch in harsh industrial settings?
The body is formed from a die-cast zinc alloy, providing mechanical strength and corrosion resistance while allowing Compact construction.
Which environmental ratings indicate suitability for wet locations?
The device carries IP66, IP67 and IP68 classifications, enabling protection against powerful jets, temporary immersion and continuous immersion respectively.
How does the switch cope with temperature extremes during operation?
It operates across a temperature range from -25°C up to a maximum of 70°C, covering most indoor and sheltered outdoor industrial applications.
What approvals cover its use in regulated installations?
It meets multiple standards and approvals including CCC, CSA, EN 60204-1, IEC 60204-1 and UL for recognised safety and performance criteria.
