Select all	Attribute	Value
	Brand	Omron
	Actuator Type	Plunger
	Pole and Throw Configuration	SPST
	Normal State Configuration	NO/NC
	IP Rating	IP67
	Maximum Current	10A
	Maximum AC Voltage	500V
	Maximum DC Voltage	250V
	Connection Type	PG13.5
	Series	WLD18
	Action Type	Snap Action
	Length	40mm
	Minimum Operating Temperature	-10°C
	Width	42mm
	Maximum Operating Temperature	+85°C
	Depth	97.7mm
	Mounting Orientation	Back, Front
	Mechanical Life	15000000Operations
	Operating Force	26.67 N

	Select all
	Brand Omron
	Actuator Type Plunger
	Pole and Throw Configuration SPST
	Normal State Configuration NO/NC
	IP Rating IP67
	Maximum Current 10A
	Maximum AC Voltage 500V
	Maximum DC Voltage 250V
	Connection Type PG13.5
	Series WLD18
	Action Type Snap Action
	Length 40mm
	Minimum Operating Temperature -10°C
	Width 42mm
	Maximum Operating Temperature +85°C
	Depth 97.7mm
	Mounting Orientation Back, Front
	Mechanical Life 15000000Operations
	Operating Force 26.67 N

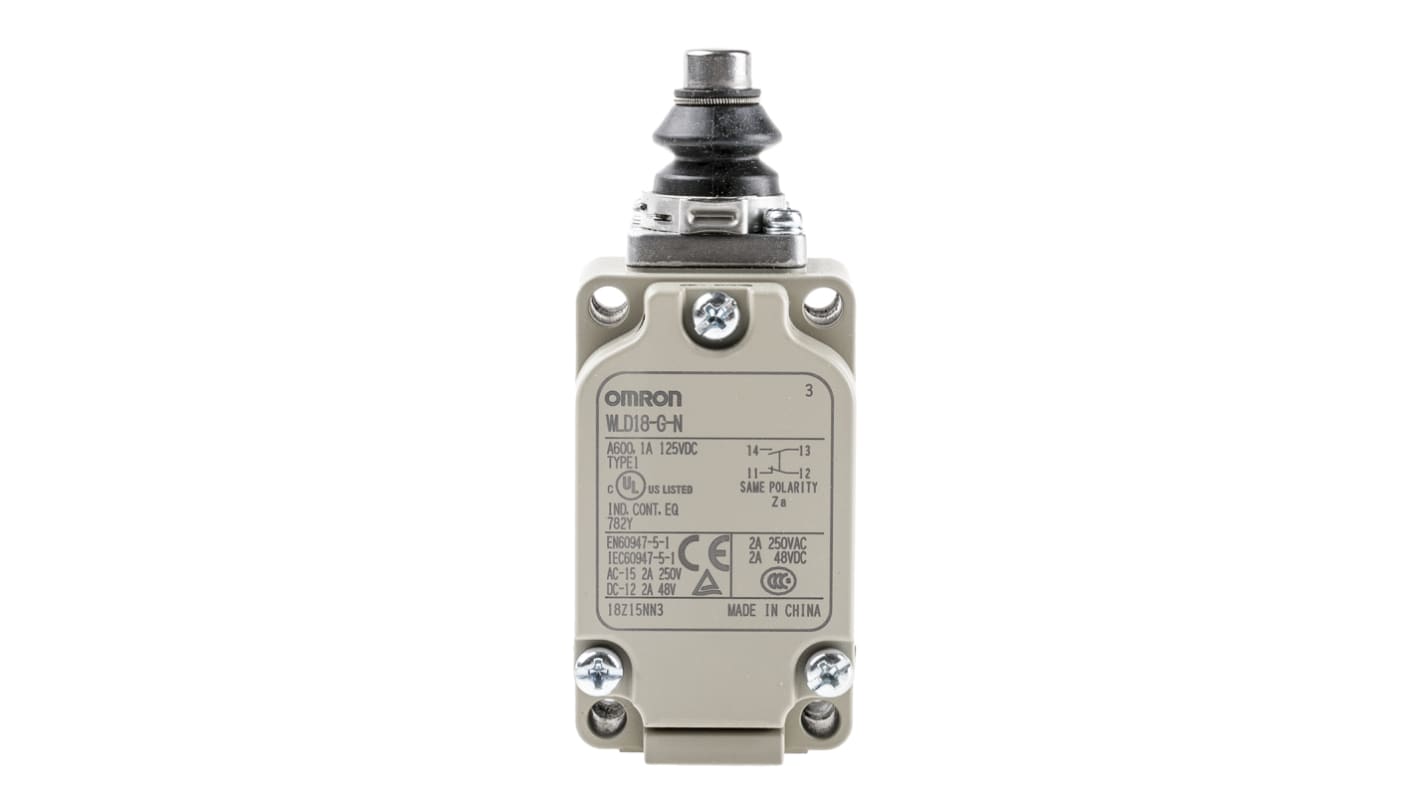

Omron WLD18 Series Plunger Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max

Omron WLD18 Series Limit Switch, NO/NC Normal State Configuration, IP67 - WLD18-G-N

Features & Benefits

Applications

Can it handle both standard and micro loads?

Will it perform in high humidity conditions?

Is it easy to install in various orientations?

Can this switch be used in welding environments?

Is it suitable for outdoor applications?
