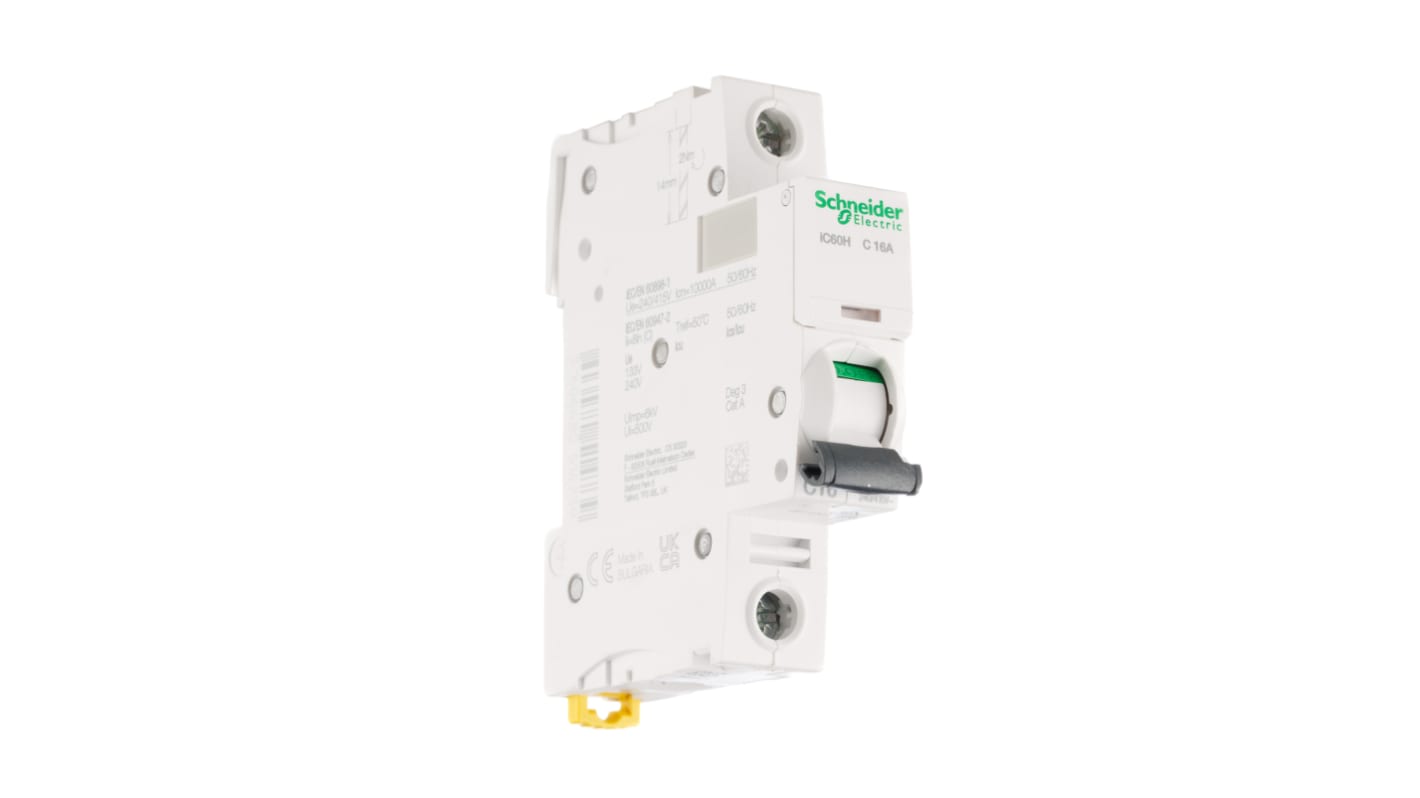

    Schneider Electric Acti 9 2A MCB, 1P Curve C, Breaking Capacity 10 kA, DIN Rail Mount, 100 → 133V

    RS Stock No.:
    791-3284
    Mfr. Part No.:
    A9F54102
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all MCBs
    7 Within 1 working day(s) (IE stock)
    92 Within 2 working day(s) (EU stock)
    Add to Basket
    units

    Added

    Price Each

    €28.74

    (exc. VAT)

    €35.35

    (inc. VAT)

    unitsPer unit
    1 - 9€28.74
    10 - 14€27.01
    15 +€25.86
    RS Stock No.:
    791-3284
    Mfr. Part No.:
    A9F54102
    Manufacturer:
    Schneider Electric
    COO (Country of Origin):
    BG

    Legislation and Compliance

    COO (Country of Origin):
    BG

    Product Details

    <B>Schneider Electric | Acti9 iC60H | Mini Circuit Breakers</B>



    <B>Features and benefits:</B>



    <B>Protection ratings & Safety features (See datasheet for further details) - </B>



    <B>Applications.</B>



    Q&A: <B>What is the differences in the Tripping Curves B, C, and D?</B>




    <B>A9F54102 Acti9 Disbo iC60 MCB Miniature Circuit Breaker IP20.</B>




    <B>Durability.</B>



    <B>Terminal connections.</B>



    Standards


    Specifications

    AttributeValue
    Number of Poles1P
    Current Rating2A
    Tripping CharacteristicsType C
    Rated AC Voltage100 → 133 V, 12 → 60 V, 220 → 240V
    Rated DC Voltage72 V, 12 → 48V
    SeriesiC60H
    RangeActi 9
    Breaking Capacity at Maximum Voltage Rating10 kA
    Circuit Breaker TypeMCB
    Mounting StyleDIN Rail Mount
    Width18mm
    Length85mm
    Depth78.5mm
    Tripping MechanismThermal-Magnetic
    Terminal Contact TypeScrew
    Reset Actuator TypeRocker
